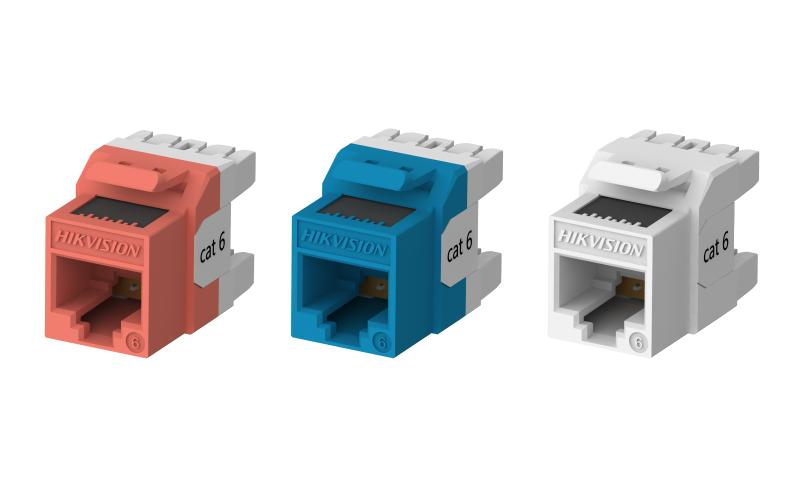

Cat6 Unsheilded 180° Punch Down Keystone Jack

  • Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class E and ANSI/TIA-568.2-D Category 6.
  • High performance supports Category 6 performance specification up to 250MHz.
  • Slim design, fit for high density solution.
  • Simple termination using standard 110 Block tools and Krone tools.
  • Universal design and label supports both TIA 568 A & B wiring.
  • Separate wire peak, easy for separating wires.
  • Press-Fit design, without soldering tin, environmentally friendly.
  • Supporting solid and stranded 22 to 24 AWG wires.
  • Match standard face plates and blank patch panels.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-1CK6U180T
DS-1CK6U180T
DS-1CK6U180T
DS-1CK6U180T
Data Sheet

Specification

  • Category
  • Product CategoryKeystone Jack
  • Fire resistance
  • Fire resistanceUL 94 V-0
  • General Specifications
  • ColorWhite, Blue, Orange
  • ANSI/TIA Category6
  • Cable TypeUnshielded
  • Conductor TypeSolid, Stranded
  • Integrated Dust Cover Type None
  • Termination TypeIDC
  • WiringTIA 568A, TIA 568B
  • Material Specifications
  • Material TypeConductor: Phosphor Bronze Housing: PC IDC: PC IDC Cap: PC
  • Termination Contact Plating50 u inch gold
  • Electrical Characteristics
  • DC resistance≤ 20 mΩ
  • Current Rating1.5 A @ 20 °C
  • Dielectric Withstand Voltage, RMS, conductive surface1,000 Vac @ 60s
  • Dielectric Withstand Voltage, RMS, contact-to-contact1,000 Vac @ 60s
  • Insulation Resistance, minimum500 MΩ
  • Mechanical Specifications
  • Plug to Jack Mating Cycles≥ 750 times
  • Dimensions
  • Height20.05 mm
  • Width16.80 mm
  • Depth27.40 mm
  • Compatible Conductor Gauge, solid22-24 AWG
  • Compatible Conductor Gauge, stranded22-24 AWG
  • Environmental Specifications
  • Operating Temperature-10 °C to +60 °C
  • Storage Temperature-40 °C to +68 °C
  • Relative Humidity10%~90%
  • Packaging and Weights
  • Packaging TypeBox
  • Package dimension160 x 110 x 98 mm
  • Packaging quantity50
  • Weight7g/pcs 420g/Box
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Category
Product Category
Keystone Jack
Fire resistance
Fire resistance
UL 94 V-0
General Specifications
Color
White, Blue, Orange
ANSI/TIA Category
6
Cable Type
Unshielded
Conductor Type
Solid, Stranded
Integrated Dust Cover Type
None
Termination Type
IDC
Wiring
TIA 568A, TIA 568B
Material Specifications
Material Type
Conductor: Phosphor Bronze Housing: PC IDC: PC IDC Cap: PC
Termination Contact Plating
50 u inch gold
Electrical Characteristics
DC resistance
≤ 20 mΩ
Current Rating
1.5 A @ 20 °C
Dielectric Withstand Voltage, RMS, conductive surface
1,000 Vac @ 60s
Dielectric Withstand Voltage, RMS, contact-to-contact
1,000 Vac @ 60s
Insulation Resistance, minimum
500 MΩ
Mechanical Specifications
Plug to Jack Mating Cycles
≥ 750 times
Dimensions
Height
20.05 mm
Width
16.80 mm
Depth
27.40 mm
Compatible Conductor Gauge, solid
22-24 AWG
Compatible Conductor Gauge, stranded
22-24 AWG
Environmental Specifications
Operating Temperature
-10 °C to +60 °C
Storage Temperature
-40 °C to +68 °C
Relative Humidity
10%~90%
Packaging and Weights
Packaging Type
Box
Package dimension
160 x 110 x 98 mm
Packaging quantity
50
Weight
7g/pcs 420g/Box
