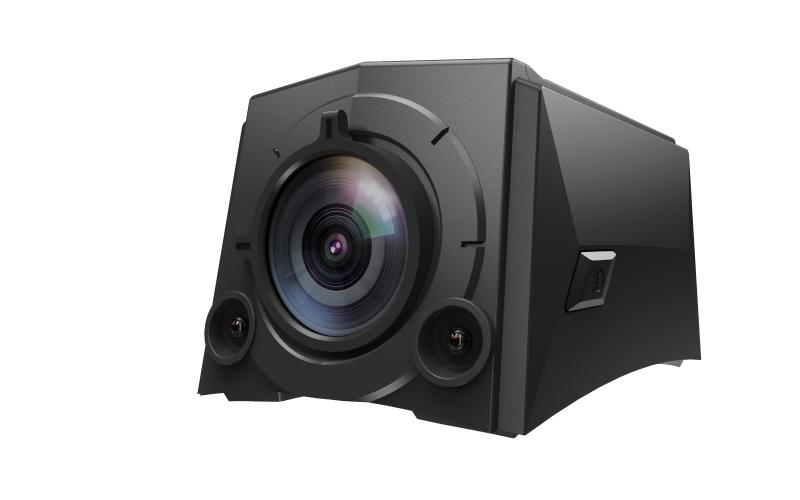

Helmet Camera

  • Up to 1080p/30 fps recording resolution
  • H.264/H.265
  • IR light supplement
  • Wide-range lens with 102° horizontal FOV
  • IP67
  • The battery is dismountable
  • Rotatable lens to adjust angle (± 90°)
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-MCH508/3/I/32G/GPS/WIFI(D)
DS-MCH508/3/I/32G/GLE(D)
DS-MCH508D
Data Sheet

Specification

  • CPU
  • CPUSingle core, 32 bit, Main frequency: 0.96 GHz
  • Camera
  • Max. Recording Resolution1920 × 1080
  • Image Sensor 1/2.8"" progressive scan CMOS
  • Min. IlluminationColor: 0.03 Lux @ (F2.4, AGC ON), 0 Lux with supplement light
  • Day & NightSwitch IR cut filter automatically
  • ZoomNot supported
  • Lens
  • Focal Length 2 mm fixed lens
  • FOVHorizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 124°
  • Aperture F2.4
  • Video
  • Video CompressionH.264,H.265
  • Main Stream 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
  • Sub-Stream30 fps, 15fps, 5fps(1280 × 720, 720 × 576)
  • Video FormatPS，MP4
  • Audio
  • Audio Compression for Video RecordingG722_1,AAC
  • Audio Compression for Group IntercomG711_A,G711_MU,G722_1
  • Audio Bit RateG711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps)
  • Image
  • Image FormatJPEG
  • Image Resolution5 MP, 16 MP, 30 MP, 40 MP
  • Image Stabilization Algorithm
  • Image Stabilization AlgorithmNot supported
  • Screen
  • Screen Size0.88"
  • Display Resolution128 × 32
  • Screen BrightnessTypical value: 150 cd/m²
  • Storage
  • Capacity32 GB eMMC
  • RAM128MB
  • IR
  • IR RangeUp to 10 m
  • IR Wavelength940 nm
  • Wireless Network
  • BluetoothBT4.0
  • Wi-Fi Protocol IEEE 802.11 b/g/n
  • Positioning ModeGPS
  • Cellular NetworkOnly available for models with /GLE: GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20/B28 TDD -LTE: B38/B40/B41
  • NFC Not supported
  • Network
  • ProtocolHTTPS, RTSP, NTP, FTP
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP 5.0
  • Security
  • EncryptionAES128 / AES256
  • WatermarkSupported
  • Interface
  • USB1 USB 2.0 port(s)
  • Indicator1 Dual color Indicator for Charging/Working/Recording/Exception
  • ButtonPower,Fn
  • SIM CardOnly available for models with /GLE :1 (Nano-SIM)
  • Charging InterfaceType-C
  • Event
  • Smart EventFall detection
  • Group Intercom
  • Group IntercomNot supported
  • General
  • Operating SystemLinux
  • Power5 VDC, 2 A, max. 10 W
  • Vibration MotorSupported
  • Operating Condition-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
  • Dimensions94 mm × 54 mm × 48 mm (3.7" × 2.3" × 1.9")
  • Weight233 g (without mounting) (0.51 lb.)
  • MICSupported
  • GyroscopeSupported
  • SpeakerNot supported
  • Battery
  • Capacity2700 mAh
  • Battery TypeLithium-ion battery, dismountable
  • Charging Time≤ 4 h
  • Battery DurationUp to 11h in 720p resolution¹
  • Approval
  • RFEN 301489-1 V2.2.3 EN 301489-3 V2.1.1 EN 301489-17 V3.2.4 EN 301489-52 V1.2.1 EN 301 489-19 V2.2.1 EN 300328 V2.2.2 EN 303413 V1.2.1 EN 300330 V2.1.1 EN 50360:2017 EN 50566:2017 EN 300 440 V2.1.1 EN 301908-1 V15.1.1 EN 301 908-13 V13.1.1
  • EMCEN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011+A1: 2014
  • SafetyCB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67
  • Drop Test
  • Drop TestMIL-STD-810G, 2 m drop test
  • Warranty
  • Warranty 2 years for the device without battery, 1 year for the battery
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

CPU
CPU
Single core, 32 bit, Main frequency: 0.96 GHz
Camera
Max. Recording Resolution
1920 × 1080
Image Sensor
1/2.8"" progressive scan CMOS
Min. Illumination
Color: 0.03 Lux @ (F2.4, AGC ON), 0 Lux with supplement light
Day & Night
Switch IR cut filter automatically
Zoom
Not supported
Lens
Focal Length
2 mm fixed lens
FOV
Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 124°
Aperture
F2.4
Video
Video Compression
H.264,H.265
Main Stream
30 fps (1920 × 1080, 1280 × 720, 720 × 576)
Sub-Stream
30 fps, 15fps, 5fps(1280 × 720, 720 × 576)
Video Format
PS，MP4
Audio
Audio Compression for Video Recording
G722_1,AAC
Audio Compression for Group Intercom
G711_A,G711_MU,G722_1
Audio Bit Rate
G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps)
Image Format
JPEG
Image Resolution
5 MP, 16 MP, 30 MP, 40 MP
Image Stabilization Algorithm
Image Stabilization Algorithm
Not supported
Screen
Screen Size
0.88"
Display Resolution
128 × 32
Screen Brightness
Typical value: 150 cd/m²
Storage
Capacity
32 GB eMMC
RAM
128MB
IR
IR Range
Up to 10 m
IR Wavelength
940 nm
Wireless Network
Bluetooth
BT4.0
Wi-Fi Protocol
IEEE 802.11 b/g/n
Positioning Mode
GPS
Cellular Network
Only available for models with /GLE: GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20/B28 TDD -LTE: B38/B40/B41
NFC
Not supported
Network
Protocol
HTTPS, RTSP, NTP, FTP
API
ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP 5.0
Security
Encryption
AES128 / AES256
Watermark
Supported
Interface
USB
1 USB 2.0 port(s)
Indicator
1 Dual color Indicator for Charging/Working/Recording/Exception
Button
Power,Fn
SIM Card
Only available for models with /GLE :1 (Nano-SIM)
Charging Interface
Type-C
Event
Smart Event
Fall detection
Group Intercom
Group Intercom
Not supported
General
Operating System
Linux
Power
5 VDC, 2 A, max. 10 W
Vibration Motor
Supported
Operating Condition
-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
Dimensions
94 mm × 54 mm × 48 mm (3.7" × 2.3" × 1.9")
Weight
233 g (without mounting) (0.51 lb.)
MIC
Supported
Gyroscope
Supported
Speaker
Not supported
Battery
Capacity
2700 mAh
Battery Type
Lithium-ion battery, dismountable
Charging Time
≤ 4 h
Battery Duration
Up to 11h in 720p resolution¹
Approval
RF
EN 301489-1 V2.2.3 EN 301489-3 V2.1.1 EN 301489-17 V3.2.4 EN 301489-52 V1.2.1 EN 301 489-19 V2.2.1 EN 300328 V2.2.2 EN 303413 V1.2.1 EN 300330 V2.1.1 EN 50360:2017 EN 50566:2017 EN 300 440 V2.1.1 EN 301908-1 V15.1.1 EN 301 908-13 V13.1.1
EMC
EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011+A1: 2014
Safety
CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67
Drop Test
Drop Test
MIL-STD-810G, 2 m drop test
Warranty
Warranty
2 years for the device without battery, 1 year for the battery
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
CPU
  • CPUSingle core, 32 bit, Main frequency: 0.96 GHz
Camera
  • Max. Recording Resolution1920 × 1080
  • Image Sensor 1/2.8"" progressive scan CMOS
  • Min. IlluminationColor: 0.03 Lux @ (F2.4, AGC ON), 0 Lux with supplement light
  • Day & NightSwitch IR cut filter automatically
  • ZoomNot supported
Lens
  • Focal Length 2 mm fixed lens
  • FOVHorizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 124°
  • Aperture F2.4
Video
  • Video CompressionH.264,H.265
  • Main Stream 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
  • Sub-Stream30 fps, 15fps, 5fps(1280 × 720, 720 × 576)
  • Video FormatPS，MP4
Audio
  • Audio Compression for Video RecordingG722_1,AAC
  • Audio Compression for Group IntercomG711_A,G711_MU,G722_1
  • Audio Bit RateG711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps)
  • Image FormatJPEG
  • Image Resolution5 MP, 16 MP, 30 MP, 40 MP
Image Stabilization Algorithm
  • Image Stabilization AlgorithmNot supported
Screen
  • Screen Size0.88"
  • Display Resolution128 × 32
  • Screen BrightnessTypical value: 150 cd/m²
Storage
  • Capacity32 GB eMMC
  • RAM128MB
IR
  • IR RangeUp to 10 m
  • IR Wavelength940 nm
Wireless Network
  • BluetoothBT4.0
  • Wi-Fi Protocol IEEE 802.11 b/g/n
  • Positioning ModeGPS
  • Cellular NetworkOnly available for models with /GLE: GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20/B28 TDD -LTE: B38/B40/B41
  • NFC Not supported
Network
  • ProtocolHTTPS, RTSP, NTP, FTP
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP 5.0
Security
  • EncryptionAES128 / AES256
  • WatermarkSupported
Interface
  • USB1 USB 2.0 port(s)
  • Indicator1 Dual color Indicator for Charging/Working/Recording/Exception
  • ButtonPower,Fn
  • SIM CardOnly available for models with /GLE :1 (Nano-SIM)
  • Charging InterfaceType-C
Event
  • Smart EventFall detection
Group Intercom
  • Group IntercomNot supported
General
  • Operating SystemLinux
  • Power5 VDC, 2 A, max. 10 W
  • Vibration MotorSupported
  • Operating Condition-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
  • Dimensions94 mm × 54 mm × 48 mm (3.7" × 2.3" × 1.9")
  • Weight233 g (without mounting) (0.51 lb.)
  • MICSupported
  • GyroscopeSupported
  • SpeakerNot supported
Battery
  • Capacity2700 mAh
  • Battery TypeLithium-ion battery, dismountable
  • Charging Time≤ 4 h
  • Battery DurationUp to 11h in 720p resolution¹
Approval
  • RFEN 301489-1 V2.2.3 EN 301489-3 V2.1.1 EN 301489-17 V3.2.4 EN 301489-52 V1.2.1 EN 301 489-19 V2.2.1 EN 300328 V2.2.2 EN 303413 V1.2.1 EN 300330 V2.1.1 EN 50360:2017 EN 50566:2017 EN 300 440 V2.1.1 EN 301908-1 V15.1.1 EN 301 908-13 V13.1.1
  • EMCEN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011+A1: 2014
  • SafetyCB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67
Drop Test
  • Drop TestMIL-STD-810G, 2 m drop test
Warranty
  • Warranty 2 years for the device without battery, 1 year for the battery
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
