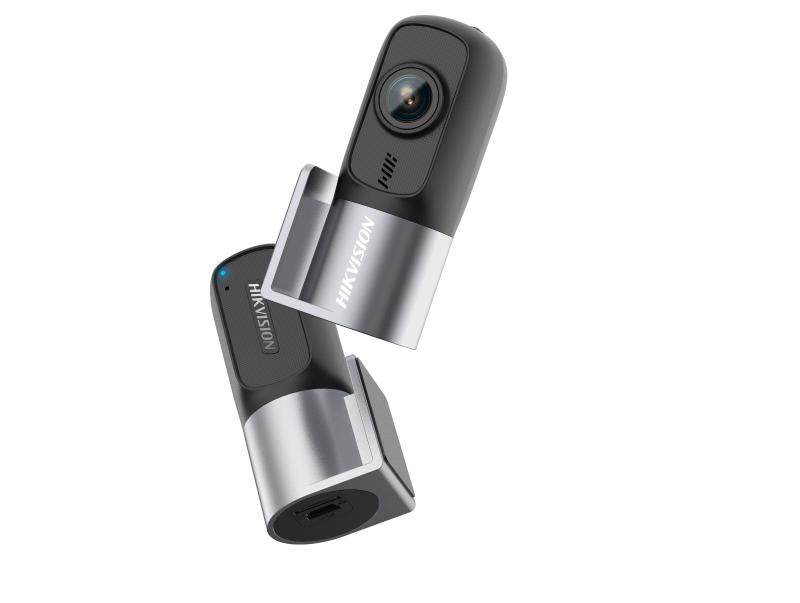

Dashcam

  • Up to 1080P HD camera with horizontal 102°wide angle, diagonal 122°.
  • Support built-in MIC and speaker for audio in and out.
  • Communication: Built-in Wi-Fi module.
  • Supports TF card storage (Max.128GB) and recording overwrite.
  • Phone App: live view, record playback and parameter configuration.
  • Built-in G-Sensor module, support video recording linkage at car crash or strong vibration .(Linkage video record can be configured be no-overwritten)

View Less
View more
Sales Inquiry

Available models:

AE-DC2018-D1
AE-DC2018-D1(HiLook)
AE-DC2018-D1(Saudi)(64G)
AE-DC2018-D1(CZE)
AE-DC2018-D1(WG)
AE-DC2018-D1(Saudi)(64G)(WG)
AE-DC2018-D1(CZE)(WG)
AE-DC2018-D1(HiLook)(WG)
AE-DC4018-D1(IN)
AE-DC4018-D1(IN)(WG)
AE-DC2018-D1
AE-DC2018-D1

Specification

  • Camera
  • Image Sensor COMS
  • Lens
  • Lens Type5 G+P
  • ApertureF2.0
  • Wi-Fi
  • Frequency Range 2412-2472MHZ
  • Channel Bandwidth 20MHZ
  • Interface
  • Built-in Microphone YES
  • Built-in SpeakerYES
  • Power OutputApprox 2.5W
  • General
  • GPSNO
  • WiFi2.4
  • Wi-Fi SupportYES
  • Resolution 1080P@30 fps
  • Max. Resolution 1080P@30 fps
  • Video Compression H.265
  • FOV122° (D), 102° (H)
  • Camera Dimension78mm x 36mm x 52mm (3.07" x 1.41" x 2.04")
  • Camera Weight100g (0.22 lb)
  • Online UpgradeYES
  • Power Consumption and Current 5V DC, 1.5 A
  • Power Supply Drop line pressing
  • Power InterfaceMini USB
  • Working temperature-20 °C to 70 °C (-4 °F to 158 °F)
  • Working humidity 95%(Max)
  • Storage TF card, 16GB to 128 GB
  • OSDDisplay time, date, etc.
  • Image formatJPEG
  • Local StorageNO
  • ADASNO
  • Speech recognitionNO
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
COMS
Lens
Lens Type
5 G+P
Aperture
F2.0
Wi-Fi
Frequency Range
2412-2472MHZ
Channel Bandwidth
20MHZ
Interface
Built-in Microphone
YES
Built-in Speaker
YES
Power Output
Approx 2.5W
General
GPS
NO
WiFi
2.4
Wi-Fi Support
YES
Resolution
1080P@30 fps
Max. Resolution
1080P@30 fps
Video Compression
H.265
FOV
122° (D), 102° (H)
Camera Dimension
78mm x 36mm x 52mm (3.07" x 1.41" x 2.04")
Camera Weight
100g (0.22 lb)
Online Upgrade
YES
Power Consumption and Current
5V DC, 1.5 A
Power Supply
Drop line pressing
Power Interface
Mini USB
Working temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Working humidity
95%(Max)
Storage
TF card, 16GB to 128 GB
OSD
Display time, date, etc.
Image format
JPEG
Local Storage
NO
ADAS
NO
Speech recognition
NO
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor COMS
Lens
  • Lens Type5 G+P
  • ApertureF2.0
Wi-Fi
  • Frequency Range 2412-2472MHZ
  • Channel Bandwidth 20MHZ
Interface
  • Built-in Microphone YES
  • Built-in SpeakerYES
  • Power OutputApprox 2.5W
General
  • GPSNO
  • WiFi2.4
  • Wi-Fi SupportYES
  • Resolution 1080P@30 fps
  • Max. Resolution 1080P@30 fps
  • Video Compression H.265
  • FOV122° (D), 102° (H)
  • Camera Dimension78mm x 36mm x 52mm (3.07" x 1.41" x 2.04")
  • Camera Weight100g (0.22 lb)
  • Online UpgradeYES
  • Power Consumption and Current 5V DC, 1.5 A
  • Power Supply Drop line pressing
  • Power InterfaceMini USB
  • Working temperature-20 °C to 70 °C (-4 °F to 158 °F)
  • Working humidity 95%(Max)
  • Storage TF card, 16GB to 128 GB
  • OSDDisplay time, date, etc.
  • Image formatJPEG
  • Local StorageNO
  • ADASNO
  • Speech recognitionNO
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.0.3_240510
Applied to:
AE-DC2018-D1
AE-DC2018-D1(HiLook)
AE-DC4018-D1(IN)
Firmware_V3.0.2_240624
Applied to:
AE-DC2018-D1(CZE)
Firmware_V1.1.0 build 241105
Applied to:
