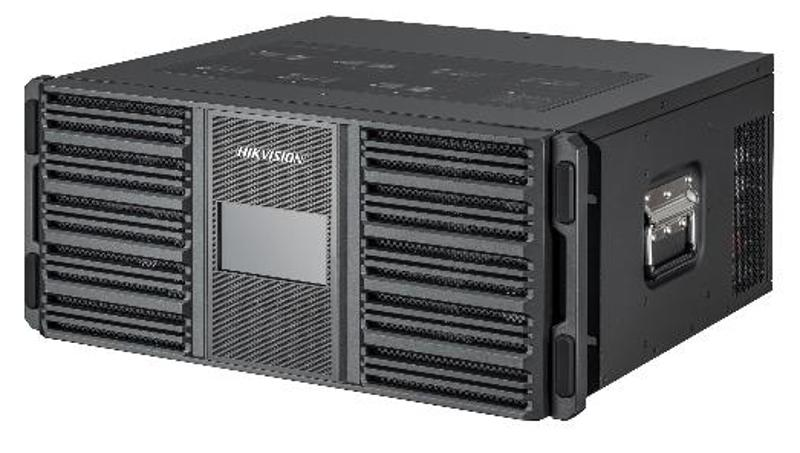

S11 Main Chassis

  • Adopt the 4.5 U standard rack design, operational-grade ATA chassis system, and 4.3-inch non-touch screen panel to allow you to view the device status information at any time.
  • Adopt the plug-in modular design and 11 slots for hot swappable service boards (one slot for the output board and 10 slots for input and output boards).
  • Adopt 2 power supplies for redundancy, 4 groups of intelligent fans for auto temperature adjustment, and 2 main control units (MCU) for expansion.
  • Support embedded HDMI audio input, external audio input via mini-DP to 3.5 mm cable, dual audio channel, and stereo.
  • Support the video signal source input such as computer, video conference terminal, and ultra-high-definition (UHD) server, signal input including VGA, DVI, HDMI, HDMI 4K, and DP 4K, and network signal source input such as network camera and NVR.
  • Support YUV 444 in image collection and output with lossless image quality.
  • Support UHD fusion and 16 4K UHD signal access.
  • Support On-Screen Display (OSD) overlay and signal source cropping.
  • Support embedded HDMI audio output and external audio output via mini-DP to 3.5 mm cable.
  • Support video signal output including VGA, DVI, and HDMI.
  • Adopt frame synchronization technology to ensure that the images of all output ports are completely synchronized, with complete picture and smooth playback, and without lag, frame loss, tearing, or splicing.
  • Support H.264 and H.265 encoding of input boards, sub stream encoding, and main stream encoding.
  • Support up to 40 encoding channels, and 40 channels of 2 MP video encoding capability when the MVC is fully installed with input boards.
  • Support network camera, NVR and other network source decoding of output boards, sub-stream and main stream decoding including H.264, H.265, Smart264, Smart265, MJPEG, and mainstream encapsulation formats such as PS, TS, ES, RTP, and HIK.
  • Support up to 704 decoding channels, and simultaneous decoding of 352 channels of 2 MP video to the video wall when the MVC is fully installed with output boards.
  • Support 32 MP HD video decoding.
  • Support smart decoding, stream editing and switching, and auto switching to the sub stream when the divided window quantity reaches the upper limit.
  • Support up to 8 video walls.
  • Support video wall pre-editing and live view of windows and non-fusion signal sources.
  • Support up to 6 4K signal source windows per screen and each signal source window can be divided into 1, 4, 6, 8, 9, and 16 windows.
  • Support 8 background images and the resolution of each background image is 1080p.
  • Support up to 12 subtitles for the MVC, up to 3 subtitles for one video wall and configuration of different types of subtitles.
  • Support using the client software to capture images on the screen and display the captured images on the video wall.
  • Support up to 128 scenes. You can customize the video wall layout and save it as a scene.
  • Support up to 128 auto-switching plans. You can customize the camera, scene, and time for each plan.
  • Support the live view of network signal sources over RTP or RTSP.
  • Support window switching, group operation and auto-switching, scene switching, PTZ control, and video wall playback via keyboard.
  • Support using the software to control the connected LED via serial port, including screen status, brightness, contrast, color, sharpness, and picture position.
  • Support using the ONVIF protocol to access devices for decoding.
  • Use the built-in 10 GB switching network.
  • Support adaptive optics, link aggregation, and NAT.
  • Support the access and operation via the mobile client (Android or iOS), PC client, and Web client.
  • Support remote configuration, MVC restart, restoring of the default settings, upgrade, getting system status and logs, and time synchronization.
  • Support auto fault detection and device exception alarm, including network disconnection, IP conflict, invalid access, temperature overshoot, fan status exception, decoding signal source exception, and device exception.
  • Support visualization in operation and maintenance by displaying the network topology and network status of MCUs and service boards.
View Less
View more

Available models:

DS-B30-S11

Specification

  • Chassis
  • Chassis Height4.5 U
  • Bus Type10 GB network switching
  • Signal Sampling QualityYUV 444
  • MCU Slot2
  • Installed MCU1
  • Service Board Slot11
  • Max. Input Slot10
  • Max. Output Slot11
  • Power Supply Slot2
  • Installed Power Supply2
  • Fan4
  • Chassis Screen4.3 inch non-touch LCD screen Size 105.4 mm × 67 mm (4.15 inch × 2.64 inch) Resolution 480 × 272
  • Device Decoding Capability352 channels of 1080p 30 fps
  • Device Encoding Capability40 channels of 1080P 60 fps
  • Device Splicing Capability44 channels
  • Interface
  • USB Interface1 × USB 2.0
  • Serial Interface1 × console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45)
  • Network Interface3 × 10/100/1000 Mbps auto-sensing Ethernet interface (RJ-45)
  • Power
  • Power Interface100 VAC to 240 VAC, 50/60 Hz
  • Device Consumption≤ 420 W
  • Network
  • Management Interface1 × 10/100/1000 Mbps auto-sensing Ethernet interface (RJ-45)
  • Switching Interface2 × 10/100/1000 Mbps auto-sensing Ethernet interface (RJ-45)
  • Transmission ProtocolSDK, RTSP, ONVIF, GB28181-2022
  • Video Wall
  • Video Walls8
  • Video Wall Specification≤ 44
  • Open Windows≤ 16
  • Number of Single Split Screen1, 4, 6, 8, 9, 16
  • Input Source Copy CapabilityOne HD input board supports 8 channels. One UHD input board supports 3 channels.
  • Screen Layer6 × 4K layers
  • Device Layer264
  • Scenes128
  • Scene Auto-Switch Delay400 ms
  • Plans128
  • Preview ChannelsPreview channel of each input channel: ≤ 6
  • Preview ResolutionBoth sub stream and main stream support preview function. Sub stream resolution: CIF(352 × 288), FCIF(704 × 576), WD1(960 × 576), 720p(1280 × 720), XVGA(1280 × 960), UXGA(1600 × 1200), 1080p(1920 × 1080) Main stream resolution: 720p(1280 × 720), XVGA(1280 × 960), UXGA(1600 × 1200), 1080p(1920 × 1080), XGA(1024 × 768), WXGA(1360 × 768), SXGA(1280 × 1024), SXGA+(1400 × 1050), WSXGA(1440 × 900), WSXGA+(1680 × 1050), 1920 × 1200, 2560 × 1440, 2560 × 1920, 3840 × 2160, 4096 × 2160
  • UHD Fusions≤ 16
  • Background Image≤ 8 Each background image is of up to 1080p resolution. Background image format: JGP, JPEG
  • SubtitlesTotal: ≤ 12; Single video wall: ≤ 3
  • Input OSD OverlaySupported
  • Input Image CroppingSupported 200 pixel points on top, bottom, left, and right.
  • Local Signal Source Decoding Delay90 ms (1080p 60 fps signal source)
  • General
  • Working Temperature0 °C to 50 °C
  • Working Humidity10% to 90%
  • Net Weight≤ 25.8 kg (56.88 lb.) Full configuration, including 14.3 kg (31.53 lb.) chassis and 1.05 kg (2.31 lb.) for each service board
  • Gross Weight≤ 43.5 kg (95.9 lb.) Full configuration, including 21.3 kg (46.96 lb.) chassis and 2.02 kg (4.45 lb.) for each service board
  • Dimensions (W × H × D)442 mm × 207.8 mm × 446 mm (17.4 inch × 8.18 inch × 17.56 inch)
  • Packing List1 × serial port cable, 2 × AC power cord, 2 × power supply, 1 × grounding cable, 1 × audio adapter cable, 1 × regulatory compliance and safety information manual

Specification

Specification
Chassis
  • Chassis Height4.5 U
  • Bus Type10 GB network switching
  • Signal Sampling QualityYUV 444
  • MCU Slot2
  • Installed MCU1
  • Service Board Slot11
  • Max. Input Slot10
  • Max. Output Slot11
  • Power Supply Slot2
  • Installed Power Supply2
  • Fan4
  • Chassis Screen4.3 inch non-touch LCD screen Size 105.4 mm × 67 mm (4.15 inch × 2.64 inch) Resolution 480 × 272
  • Device Decoding Capability352 channels of 1080p 30 fps
  • Device Encoding Capability40 channels of 1080P 60 fps
  • Device Splicing Capability44 channels
Interface
  • USB Interface1 × USB 2.0
  • Serial Interface1 × console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45)
  • Network Interface3 × 10/100/1000 Mbps auto-sensing Ethernet interface (RJ-45)
Power
  • Power Interface100 VAC to 240 VAC, 50/60 Hz
  • Device Consumption≤ 420 W
Network
  • Management Interface1 × 10/100/1000 Mbps auto-sensing Ethernet interface (RJ-45)
  • Switching Interface2 × 10/100/1000 Mbps auto-sensing Ethernet interface (RJ-45)
  • Transmission ProtocolSDK, RTSP, ONVIF, GB28181-2022
Video Wall
  • Video Walls8
  • Video Wall Specification≤ 44
  • Open Windows≤ 16
  • Number of Single Split Screen1, 4, 6, 8, 9, 16
  • Input Source Copy CapabilityOne HD input board supports 8 channels. One UHD input board supports 3 channels.
  • Screen Layer6 × 4K layers
  • Device Layer264
  • Scenes128
  • Scene Auto-Switch Delay400 ms
  • Plans128
  • Preview ChannelsPreview channel of each input channel: ≤ 6
  • Preview ResolutionBoth sub stream and main stream support preview function. Sub stream resolution: CIF(352 × 288), FCIF(704 × 576), WD1(960 × 576), 720p(1280 × 720), XVGA(1280 × 960), UXGA(1600 × 1200), 1080p(1920 × 1080) Main stream resolution: 720p(1280 × 720), XVGA(1280 × 960), UXGA(1600 × 1200), 1080p(1920 × 1080), XGA(1024 × 768), WXGA(1360 × 768), SXGA(1280 × 1024), SXGA+(1400 × 1050), WSXGA(1440 × 900), WSXGA+(1680 × 1050), 1920 × 1200, 2560 × 1440, 2560 × 1920, 3840 × 2160, 4096 × 2160
  • UHD Fusions≤ 16
  • Background Image≤ 8 Each background image is of up to 1080p resolution. Background image format: JGP, JPEG
  • SubtitlesTotal: ≤ 12; Single video wall: ≤ 3
  • Input OSD OverlaySupported
  • Input Image CroppingSupported 200 pixel points on top, bottom, left, and right.
  • Local Signal Source Decoding Delay90 ms (1080p 60 fps signal source)
General
  • Working Temperature0 °C to 50 °C
  • Working Humidity10% to 90%
  • Net Weight≤ 25.8 kg (56.88 lb.) Full configuration, including 14.3 kg (31.53 lb.) chassis and 1.05 kg (2.31 lb.) for each service board
  • Gross Weight≤ 43.5 kg (95.9 lb.) Full configuration, including 21.3 kg (46.96 lb.) chassis and 2.02 kg (4.45 lb.) for each service board
  • Dimensions (W × H × D)442 mm × 207.8 mm × 446 mm (17.4 inch × 8.18 inch × 17.56 inch)
  • Packing List1 × serial port cable, 2 × AC power cord, 2 × power supply, 1 × grounding cable, 1 × audio adapter cable, 1 × regulatory compliance and safety information manual

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Applied to:
DS-B30-S11
