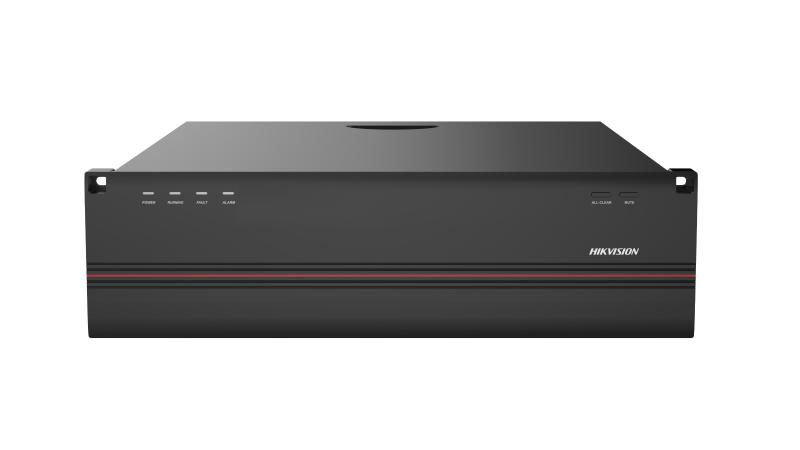

Fiber-Optic Temperature Server 10KM 12-Ch

【System】
3U rack-mounted 4-channel temperature measurement fiber optic host, the device adopts a short case design, with an all-in-one optical module
Support open network interface, and can be accessed via OTAP, MODBUS protocol
Support lightning protection, surge protection, and ESD protection
Support Class1 laser classification
【Monitoring】
Support simultaneous monitoring of multiple temperature alarm points
Support constant temperature alarm, temperature rise Alarm and temperature difference alarm
Support uploading alarm types, temperature, and other information
【Environment】
Strong environmental adaptability. With front-end passive and flexible characteristics, the device can be installed in various complex terrains, not restricted by power supply and network conditions.
It can withstand harsh environments such as moisture, temperature variations, and is resistant to ammonia, chlorine, salt spray, acid rain, and more

View Less

Available models:

DS-QFT1012

DS-QFT1012 ^NEW

Specification
Resources
Accessories

Basic Parameter
Fiber TypeMulti-mode
Channel12
Single-Channel Detection Range10km
Positioning Accuracy10km：±0.5m
Temperature Range-200℃~800℃(actual temperature monitoring capability depends on the selected fiber optic).
Temperature Accuracy±1℃
Temperature Resolution0.1℃
Spatial Resolution1m
Sampling Interval0.4m
Partition Quantity≤1000 per channel，it is configurable
Alarm Response Time≤5s per channel

Function
Alarm TriggerConstant Temperature Alarm, Temperature Rise Alarm, Temperature Drop Alarm, Temperature Difference Alarm
LED IndicatorPower indicator: Solid blue: power on Light off: power off Running indicator: Solid blue: program running normally Flashing blue: program running abnormally Fault indicator: Light off: all-in-one module running normally Solid yellow: all-in-one module error Tamper indicator: Solid red: tamper alarm triggered Light off: tamper alarm not triggered
BuzzerStay buzzing for tampering alarm
Switch1 rocker switch for power, 1 mute button, 1 reset button

Communication
Communication MethodWired communication

Interface
Fiber Interface12 FC/APC fiber interfaces
Power Interface1 power input interface with 100~240V AC power input
Function Interface1 RJ45 1000 M network interface, 1 RS-232 interface, 2 RS-485 interfaces, 2 USB 3.0 interfaces
Alarm Out32 relay outputs

General
MaterialMetal
Power100-240V～50/60Hz 0.5A
ColorBlack
Power Consumption＜20 W
Operating Temperature-15 °C to 55 °C (5 °F to 131 °F)
Operating Humidity0% to 95% (± 2%)
Laser Classification Class 1
Dimension133.51 mm × 483 mm × 449.21 mm (5.26" × 19.02" × 17.69")
WeightApprox. 10.1 kg (22.27 lb.)
