*Images are for illustrative purposes. Actual product appearance and specifications may vary.

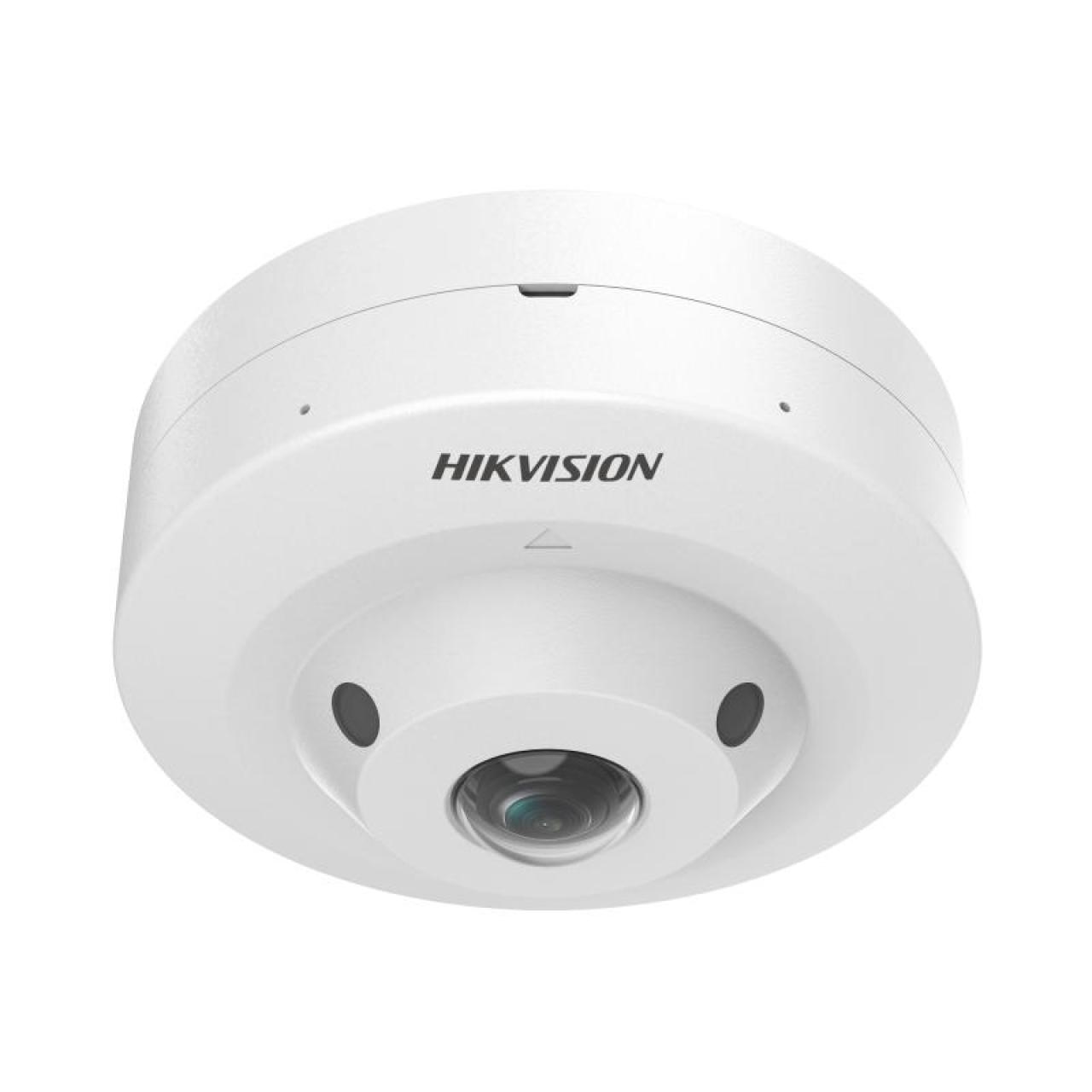

3K Smart Hybrid Light Audio Fisheye Camera

Name: 3K Smart Hybrid Light Audio Fisheye Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

High quality imaging with 3K, 2960 × 1665 resolution
1.8 mm fixed focal lens
Smart-Hybrid light, optimize your security with flexible lighting options
180° fisheye view
3D DNR technology delivers clean and sharp images
Up to 10 m white light and 10 m IR distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
Water and dust resistant (IP67) and vandal resistant (IK08)

View Less

Data Sheet

Available models:

DS-2CE52K0T-LPS(1.8mm)

View more View Less

DS-2CE52K0T-LPS

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor3K CMOS
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.01 Lux @ (F2.0,AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s,NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Signal SystemPAL/NTSC

Lens
Lens Type1.8 mm fixed focal lens
Focal Length & FOV1.8 mm, horizontal FOV: 180°, vertical FOV: 114°, diagonal FOV: 180°
Lens MountM12

Microphone
Pickup DistanceIn a radius of up to 10 m
Amount1

Illuminator
Supplement Light TypeSmart, IR, White Light
Supplement Light RangeIR: Up to 10 m,White Light: Up to 10 m

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsSaturation,Brightness,Contrast,Sharpness,Anti-banding,AGC
Frame RateTVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps, 1080P @25 fps/30 fps
Day/Night ModeAuto/Color
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC,HLC,Global,DWDR
Noise Reduction3D DNR
White BalanceAuto,Manual

Interface
Video Output 1 HD analog output

General
Power12 VDC ± 25%, max. 8.2 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
MaterialPlastic
DimensionØ121.78 mm × 59.5 mm (Ø4.79" × 2.34")
Approx. 270 g (0.595 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 160 °F). Humidity 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67, IK08

Camera

Image Sensor

3K CMOS

Max. Resolution

2960 (H) × 1665 (V)

Min. Illumination

0.01 Lux @ (F2.0,AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s,NTSC: 1/30 s to 1/50,000 s

Day & Night

ICR

Signal System

PAL/NTSC

Lens

Lens Type

1.8 mm fixed focal lens

Focal Length & FOV

1.8 mm, horizontal FOV: 180°, vertical FOV: 114°, diagonal FOV: 180°

Lens Mount

M12

Microphone

Pickup Distance

In a radius of up to 10 m

Amount

Illuminator

Supplement Light Type

Smart, IR, White Light

Supplement Light Range

IR: Up to 10 m,White Light: Up to 10 m


Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Image Settings

Saturation,Brightness,Contrast,Sharpness,Anti-banding,AGC

Frame Rate

TVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps, 1080P @25 fps/30 fps

Day/Night Mode

Auto/Color

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC,HLC,Global,DWDR

Noise Reduction

3D DNR

White Balance

Auto,Manual

Interface

Video Output

1 HD analog output

General

Power

12 VDC ± 25%, max. 8.2 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

Material

Plastic

Dimension

Ø121.78 mm × 59.5 mm (Ø4.79" × 2.34")

Approx. 270 g (0.595 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 160 °F). Humidity 90% or less (non-condensing)

Communication

HIKVISION-C

Language

English

Approval
