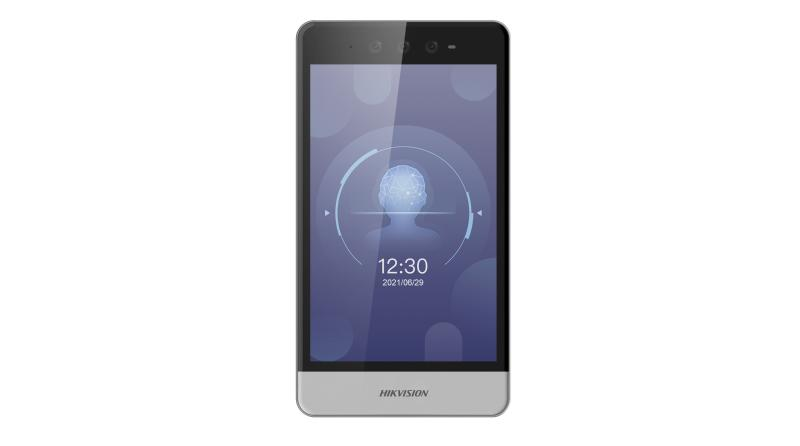

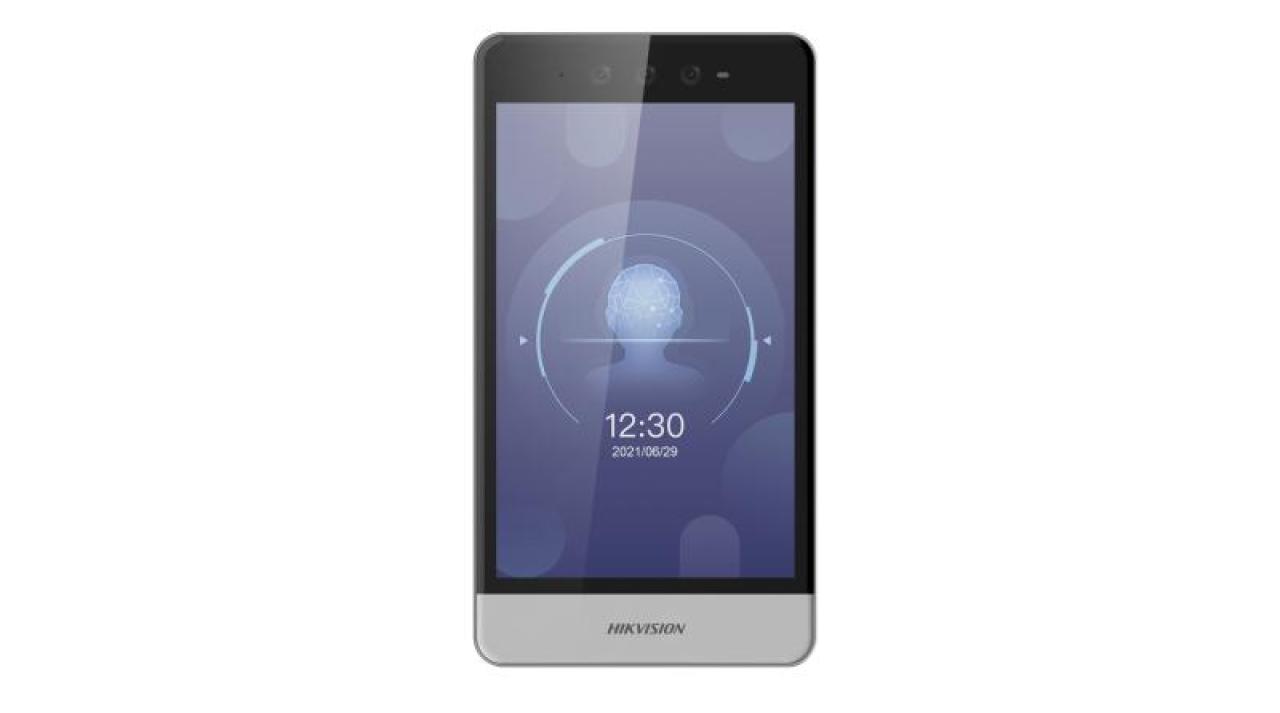

Ultra Iris Recognition Terminal

Max. 50,000 faces capacity, Max. 10,000 irises capacity, Max. 100,000 cards capacity, and Max. 150,000 events capacity
Iris recognition with 8-inch LCD touch screen; 2 MP wide-angle lens for face recognition and 5 MP single lens for iris recognition; built-in M1 card reading module
Two-way audio with client software
Supports TCP/IP, and Wi-Fi
Configuration via the web client
Face recognition distance: 0.3 m to 3 m; iris recognition distance: 40 cm to 70 cm
Face recognition duration＜ 0.2 s/User and accuracy rate ≥ 99%; iris recognition duration ＜ 1 s
Supports face with mask recognition

View Less

Data Sheet

Available models:

DS-K1T981M

Specification
Resources
Accessories

Data Sheet

Display
Screen size8 inch
Operation methodCapacitive touch screen
TypeLCD

Video
Lens3 (2 for face recognition, 1 for iris recognition)
ResolutionFor face recognition: 2 MP For iris recognition: 5 MP
FOVFor face recognition: HFOV = 44°; VFOV = 88°; DFOV = 108° For iris recognition: HFOV = 19.9°; VFOV = 14.5°; DFOV = 24.5°

Audio
Audio qualityNoise suppression and echo cancellation

Network
Wired networkSupport
Wi-FiSupport, 2.4 G, 802.11b/g/n

Interface
Network interface1 RJ-45, 10/100/1000 M self-adaptive
Lock control1
Exit button1
Door contact input1
Alarm input2
Alarm output1
TAMPER1
RS-4851 RS-485 (Half duplex, HIKVISION)
Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
USB1

Capacity
Iris capacity10,000

Authentication
Iris recognition distance40 to 70 cm
Iris registration duration＜ 5 s
Iris recognition duration＜ 1 s
Card typeM1 card
Card reading frequency13.56 MHz

General
Power supply12 VDC, 3 A
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity10 to 90% (no condensing)
Dimensions126 mm × 232 mm × 27 mm (5.0" × 9.1" × 1.1")
InstallationWall mounting
LanguageEnglish, Spanish (South America), Thai, Arabic, Russian, Portuguese (Brazil)
PlatformHik-ProConnect and HikCentral Professional

Function
Face anti-spoofingSupport

Display

Screen size

8 inch

Operation method

Capacitive touch screen

Type

LCD

Video

Lens

3 (2 for face recognition, 1 for iris recognition)

Resolution

For face recognition: 2 MP For iris recognition: 5 MP

FOV

For face recognition: HFOV = 44°; VFOV = 88°; DFOV = 108° For iris recognition: HFOV = 19.9°; VFOV = 14.5°; DFOV = 24.5°

Audio

Audio quality

Noise suppression and echo cancellation

Network

Wired network

Support

Wi-Fi

Support, 2.4 G, 802.11b/g/n

Interface

Network interface

1 RJ-45, 10/100/1000 M self-adaptive

Lock control

Exit button

Door contact input

Alarm input

Alarm output

TAMPER

RS-485

1 RS-485 (Half duplex, HIKVISION)

Wiegand

1 Wiegand(Hik 26bit,Hik 34bit)

USB

Capacity

Iris capacity

10,000

Authentication

Iris recognition distance

40 to 70 cm

Iris registration duration

＜ 5 s

Iris recognition duration

＜ 1 s

Card type

M1 card

Card reading frequency

13.56 MHz

General

Power supply

12 VDC, 3 A

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

10 to 90% (no condensing)

Dimensions

126 mm × 232 mm × 27 mm (5.0" × 9.1" × 1.1")

Installation

Wall mounting

Language

English, Spanish (South America), Thai, Arabic, Russian, Portuguese (Brazil)

Platform

Hik-ProConnect and HikCentral Professional

Function

Face anti-spoofing
