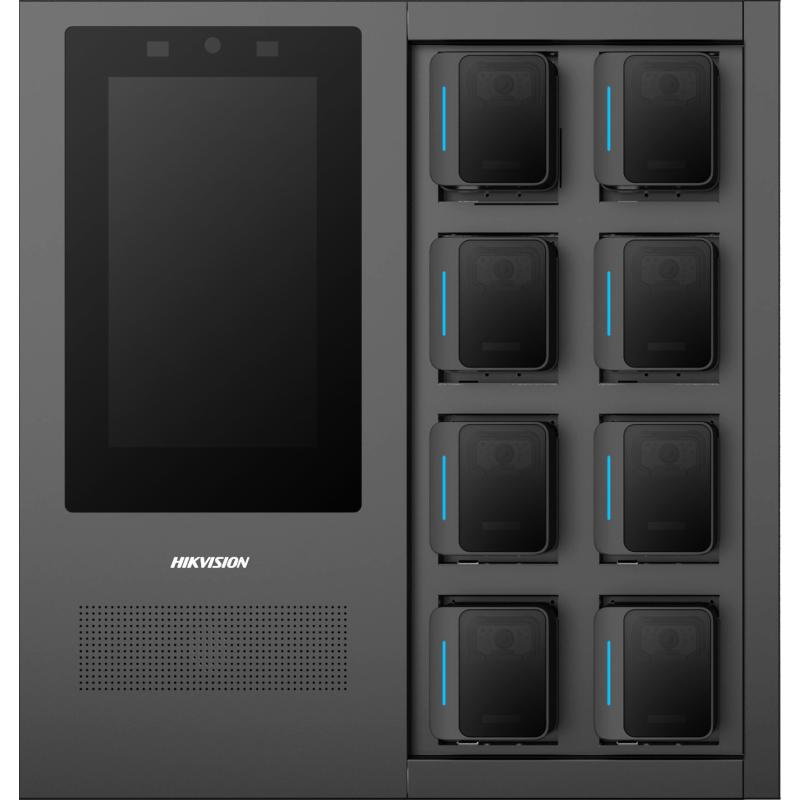

8 Ports Dual System Touchscreen Dock Station

Dual system design which is highly stable. Supports wall mount, mobile mount, and desktop mount.
13.3-inch ultra-large touchscreen with 1920 × 1080 resolution and convenient operation.
Unlocks body camera bin by recognizing face to guarantee safe device storage.
Equipped with eight body camera bins in standard. Four dock stations can be connected. Each dock station is equipped with eight body camera bins. Up to 32 body cameras can be connected simultaneously. Supports auto charging.
Two standard USB interfaces provided. One is used to connect to a mouse or keyboard for software operation, or connect to a USB flash disk to upgrade the dock station. The other one is reserved.
Supports six hard disks. Standard 2 TB storage capacity. Up to 8 TB for each disk. RAID0, RAID1, and RAID5 can be customized.
Supports auto uploading of body camera data (picture, video, and audio), and clearing the storage space of body camera automatically.
Locks important data of body camera to avoid being deleted.
Supports data protection in sudden power cutoff.
Log management to record all the operation logs.
Overwritten storage to overwrite the collected data according to the collection sequence when the storage is full.
ANR for data uploading to prevent data loss.
Supports file search in multiple modes, and video, audio, and picture playback.
Local upgrade.
Multi-user management. Multi-users can be associated with one dock station.
Files can be uploaded to CVR and cloud storage.

View Less

Available models:

DS-MDS003/2T/8

DS-MDS003

EOL

Specification
Resources
Accessories

Screen
Display Resolution1920 × 1080
Screen TypeLCD
TouchscreenSupported

Storage
HDDUp to 6 disk(s) (Max. 8 TB for each disk) and default 1*2 TB
RAM2 GB

Network
ProtocolHTTPS, FTP, NTP, SADP, ISAPI

Interface
Base Paramaters5 VDC, 1.5 A for each channel, rate ≥ 5 MB/s
Body Camera Access NumberUp to 32 body camera(s)
ButtonPower
General Interface1 × RJ45,1 × RS-232,1 × USB 2.0,1 × USB 3.0
Indicator2 indicator(s) for charging/working/recording/exception

General
ClientHikCentral Pro,HikCentral Master
Dimensions635 mm × 604.6 mm × 108.7 mm (25" × 23.8" × 4.3")
Installation MethodDesk-mounted,Wall-mounted,Movable bracket
Operating Condition-10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)
Operating SystemLinux, Android 5.1.1
Power100 to 240 VAC, max. 500 W
Storage Condition-25 °C to 50 °C (-13 °F to 122 °F). Humidity 95% or less (non-condensing)
Web BrowserPlug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Weight24.1 kg (53.13 lb.)

Screen

Display Resolution

1920 × 1080

Screen Type

LCD

Touchscreen

Supported

Storage

HDD

Up to 6 disk(s) (Max. 8 TB for each disk) and default 1*2 TB

RAM

2 GB

Network

Protocol

HTTPS, FTP, NTP, SADP, ISAPI

Interface

Base Paramaters

5 VDC, 1.5 A for each channel, rate ≥ 5 MB/s

Body Camera Access Number

Up to 32 body camera(s)

Button

Power

General Interface

1 × RJ45,1 × RS-232,1 × USB 2.0,1 × USB 3.0

Indicator

2 indicator(s) for charging/working/recording/exception

General

Client

HikCentral Pro,HikCentral Master

Dimensions

635 mm × 604.6 mm × 108.7 mm (25" × 23.8" × 4.3")

Installation Method

Desk-mounted,Wall-mounted,Movable bracket

Operating Condition

-10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)

Operating System

Linux, Android 5.1.1

Power

100 to 240 VAC, max. 500 W

Storage Condition

-25 °C to 50 °C (-13 °F to 122 °F). Humidity 95% or less (non-condensing)

Web Browser

Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Weight

24.1 kg (53.13 lb.)
