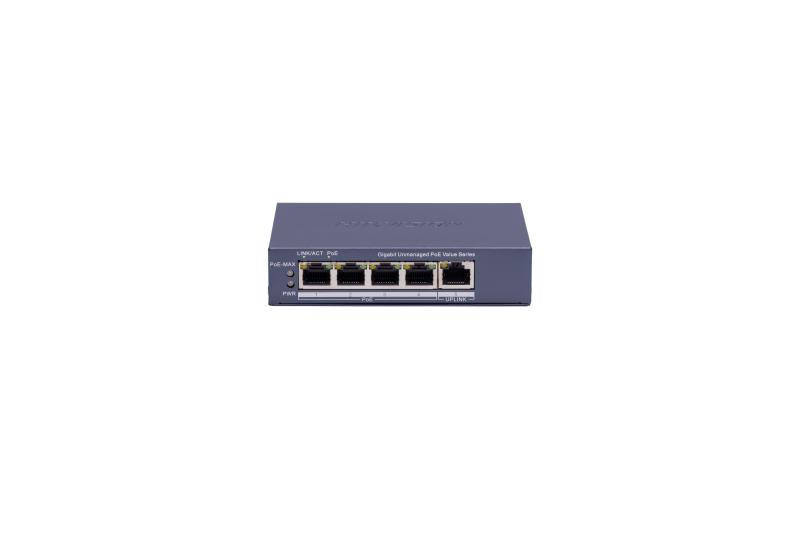

4 Port Gigabit Unmanaged POE Switch

  • 4 x Gigabit PoE Ports, 1 x Gigabit Uplink Port
  • Total PoE Power Budget 45 W
  • IEEE802.3af/at Compliant, and 30 W Max. Output Power for Each Port
  • 6 kV Surge Protection
  • PD Power Intelligent Detection with System-Level Overload Protection
  • Silent Running with Fanless Design
  • Desktop/Wall Installation
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-3E0505P-E/M(B)
DS-3E0505P-E/M(B)
Data Sheet

Specification

  • General
  • ShellMetal material
  • Net Weight0.25 kg (0.55 lb)
  • Gross Weight0.74 kg (1.63 lb)
  • Dimensions (W × H × D)121.1 mm × 27.6 mm × 83.1 mm (4.76'' × 1.08'' × 3.27'')
  • Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply54VDC, 0.92A
  • Max. Power Consumption50 W
  • Power Consumption in Idle5 W
  • Installation ModeDesk-Mounted,Wall-Mounted
  • Surge Protection6 kV
  • Network Parameters
  • Porti4 × Gigabit PoE port,1 × Gigabit RJ45 port
  • MAC Address Table2 K
  • Switching Capacity10 Gbps
  • Packet Forwarding Rate7.44 Mpps
  • Internal Cache1 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af;IEEE 802.3at
  • PoE Power PinEnd-span: 1/2(-), 3/6(+)
  • PoE PortPoE: Ports 1 to 4
  • Max. Port Power30 W
  • PoE Power Budget45 W
  • Approval
  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Shell
Metal material
Net Weight
0.25 kg (0.55 lb)
Gross Weight
0.74 kg (1.63 lb)
Dimensions (W × H × D)
121.1 mm × 27.6 mm × 83.1 mm (4.76'' × 1.08'' × 3.27'')
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature
–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
54VDC, 0.92A
Max. Power Consumption
50 W
Power Consumption in Idle
5 W
Installation Mode
Desk-Mounted,Wall-Mounted
Surge Protection
6 kV
Network Parameters
Porti
4 × Gigabit PoE port,1 × Gigabit RJ45 port
MAC Address Table
2 K
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.44 Mpps
Internal Cache
1 Mbits
PoE Power Supply
PoE Standard
IEEE 802.3af;IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
PoE Port
PoE: Ports 1 to 4
Max. Port Power
30 W
PoE Power Budget
45 W
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
