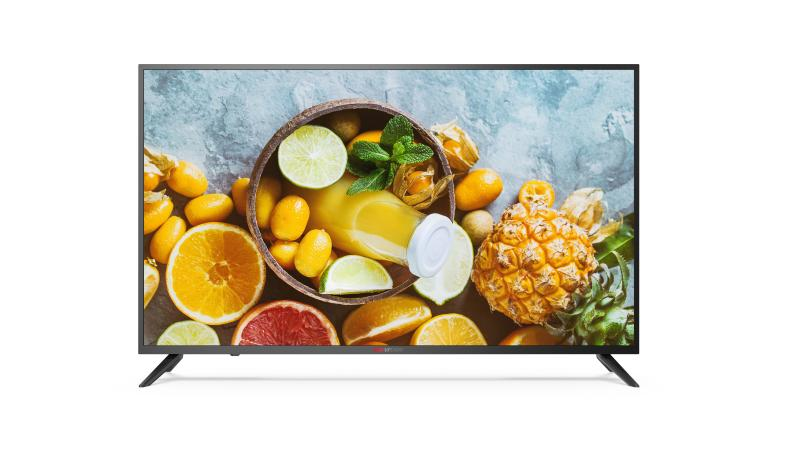

50-inch 4K Monitor

Designed for surveillance, high reliability and stability
50" LED backlight with wide display equipment
4K resolution is 4 times the resolution of 1080p, providing a wider view and more fine detail
Multiple inputs: HDMI, VGA, USB
Narrow front bezel
Wide view angle: Horizontal 178°, Vertical 178°
24/7 operation

View Less

Data Sheet

Available models:

DS-D5050UC-C

EOL

Specification
Resources
Accessories

Data Sheet

Display
Screen Size50”
Active Display Area1095.84 (H) mm × 616.41 (V) mm
Resolution3840 × 2160@60 Hz
BacklightLED
Pixel Pitch0.2854 (H) mm × 0.2854 (V) mm
Brightness300 cd/m²
Viewing Angle178° (H) / 178° (V)
Color Depth8 bit
Contrast Ratio5000:1
Response Time8 ms
Refresh Rate60 Hz
Haze1%
Reliability7 × 24 H
Color Gamut72% NTSC

Interface
Video & Audio InputHDMI 1.4 × 1, HDMI2.0 × 1, VGA × 1, Audio in × 1
Video & Audio OutputSpeaker (6Ω 7W) × 2
Data Transmission InterfaceUSB × 1

Power
Power Supply100~240 VAC, 50/60Hz
Power Consumption≤ 110 W
Standby Consumption≤ 0.5W

Working Environment
Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity20% to 80% RH (Non-Condensing)
Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity10% to 90% RH (Non-Condensing)

General
Casing MaterialPlastic
VESA200 mm × 200 mm (4 × M6-30 mm)
Bezel Width8.24 mm (top/left/right), 23.22 mm (bottom)
Product Dimensions (W × H × D)Without stand: 1116.32 mm × 648 mm × 87.2 mm (43.95" × 25.51" × 3.43") With stand: 1116.32 mm × 710.53 mm × 247.88 mm (43.95" × 27.97" × 9.76")
Package Dimensions (W × H × D)1420 mm × 800 mm × 160 mm (55.91" × 31.50"× 6.30")
Net WeightWithout stand: 10.41 kg (22.95 lb) With stand: 10.65 kg (23.48 lb)
Gross WeightWithout stand: 13.5 kg (29.76 lb) With stand: 13.8 kg (30.42 lb)
Packing ListPower cable × 1, remote control × 1, user manual × 1, HDMI cable × 1, base bracket × 1
RemarksIf the appearance and parameters in this specification vary from the actual product, the later prevails. You can also consult local sale staff.
