DS-D5022FC

EOL

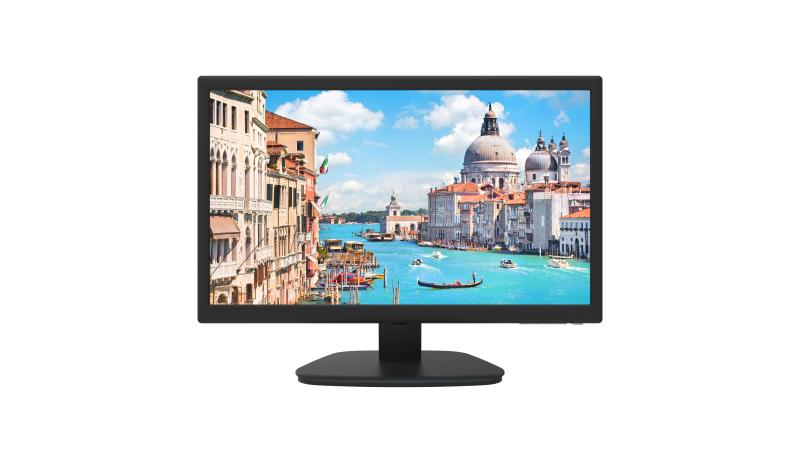

21.5-inch FHD Monitor

  • LED backlit technology with full HD 1920×1080
  • 22" LED backlight monitor
  • Image processing: 3D comb filter, 3D De-interlace, 3D noise reduction
  • Multiple interfaces: HDMI, VGA, BNC input, BNC output, audio in, USB
  • Built-in speaker
  • Wide viewing angle: Horizontal 170°, Vertical 160°
  • 24/7 operation
View Less
View more
Sales Inquiry

Available models:

DS-D5022FC
DS-D5022FC
EOL

Specification

  • Display
  • Screen Size21.5 inch
  • Active Display Area476.64 mm (H) × 268.11 mm (V)
  • Resolution1920 × 1080
  • BacklightD-LED
  • Pixel Pitch0.248 mm (H) × 0.248 mm (V)
  • Brightness250 cd/m² (Typ.)
  • Viewing Angle178° (H) / 178° (V)
  • Color Depth16.7 million
  • Contrast Ratio41.667361111111113
  • Response Time5 ms
  • Interface
  • Data Transmission InterfaceUSB 2.0 × 1, USB 3.0 × 1
  • Video & Audio InputHDMI × 1, VGA × 1, AUDIO IN × 1
  • Video & Audio OutputAUDIO OUT × 1
  • Network InterfaceLAN × 1
  • Loudspeaker2 W × 2
  • Power
  • Power Supply12 VDC, 3.0 A
  • Power Consumption≤ 30 W
  • Standby Consumption0.5 W
  • Working Environment
  • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity10% to 85%RH (No Condensation)
  • Storage Temperature- 20 ℃ to + 55 ℃ (-4 ℉ to 131 ℉)
  • Storage Humidity5% to 95%RH (No Condensation)
  • General
  • ColorBlack
  • VESAM4, 100 mm × 100 mm
  • Product Dimensions (W × H × D)511.4 mm × 313 mm × 45.4 mm ( 20.13'' × 12.32'' × 1.79'') 511 mm × 377 mm× 170 mm ( 20.12'' × 14.84'' × 6.69'')(with base)
  • Mounting TypeWall mounting
  • Package Dimensions (W × H × D)565 mm × 435 mm × 105 mm ( 22.24'' × 17.13'' × 4.13'')
  • Net Weight3.2 kg (7.1 lb.)
  • Gross Weight4.6 kg (10.1 lb.)
  • Packing ListPower cord × 1, VGA cable × 1, user manual × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Screen Size
21.5 inch
Active Display Area
476.64 mm (H) × 268.11 mm (V)
Resolution
1920 × 1080
Backlight
D-LED
Pixel Pitch
0.248 mm (H) × 0.248 mm (V)
Brightness
250 cd/m² (Typ.)
Viewing Angle
178° (H) / 178° (V)
Color Depth
16.7 million
Contrast Ratio
41.667361111111113
Response Time
5 ms
Interface
Data Transmission Interface
USB 2.0 × 1, USB 3.0 × 1
Video & Audio Input
HDMI × 1, VGA × 1, AUDIO IN × 1
Video & Audio Output
AUDIO OUT × 1
Network Interface
LAN × 1
Loudspeaker
2 W × 2
Power
Power Supply
12 VDC, 3.0 A
Power Consumption
≤ 30 W
Standby Consumption
0.5 W
Working Environment
Working Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity
10% to 85%RH (No Condensation)
Storage Temperature
- 20 ℃ to + 55 ℃ (-4 ℉ to 131 ℉)
Storage Humidity
5% to 95%RH (No Condensation)
General
Color
Black
VESA
M4, 100 mm × 100 mm
Product Dimensions (W × H × D)
511.4 mm × 313 mm × 45.4 mm ( 20.13'' × 12.32'' × 1.79'') 511 mm × 377 mm× 170 mm ( 20.12'' × 14.84'' × 6.69'')(with base)
Mounting Type
Wall mounting
Package Dimensions (W × H × D)
565 mm × 435 mm × 105 mm ( 22.24'' × 17.13'' × 4.13'')
Net Weight
3.2 kg (7.1 lb.)
Gross Weight
4.6 kg (10.1 lb.)
Packing List
Power cord × 1, VGA cable × 1, user manual × 1
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Screen Size21.5 inch
  • Active Display Area476.64 mm (H) × 268.11 mm (V)
  • Resolution1920 × 1080
  • BacklightD-LED
  • Pixel Pitch0.248 mm (H) × 0.248 mm (V)
  • Brightness250 cd/m² (Typ.)
  • Viewing Angle178° (H) / 178° (V)
  • Color Depth16.7 million
  • Contrast Ratio41.667361111111113
  • Response Time5 ms
Interface
  • Data Transmission InterfaceUSB 2.0 × 1, USB 3.0 × 1
  • Video & Audio InputHDMI × 1, VGA × 1, AUDIO IN × 1
  • Video & Audio OutputAUDIO OUT × 1
  • Network InterfaceLAN × 1
  • Loudspeaker2 W × 2
Power
  • Power Supply12 VDC, 3.0 A
  • Power Consumption≤ 30 W
  • Standby Consumption0.5 W
Working Environment
  • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity10% to 85%RH (No Condensation)
  • Storage Temperature- 20 ℃ to + 55 ℃ (-4 ℉ to 131 ℉)
  • Storage Humidity5% to 95%RH (No Condensation)
General
  • ColorBlack
  • VESAM4, 100 mm × 100 mm
  • Product Dimensions (W × H × D)511.4 mm × 313 mm × 45.4 mm ( 20.13'' × 12.32'' × 1.79'') 511 mm × 377 mm× 170 mm ( 20.12'' × 14.84'' × 6.69'')(with base)
  • Mounting TypeWall mounting
  • Package Dimensions (W × H × D)565 mm × 435 mm × 105 mm ( 22.24'' × 17.13'' × 4.13'')
  • Net Weight3.2 kg (7.1 lb.)
  • Gross Weight4.6 kg (10.1 lb.)
  • Packing ListPower cord × 1, VGA cable × 1, user manual × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
