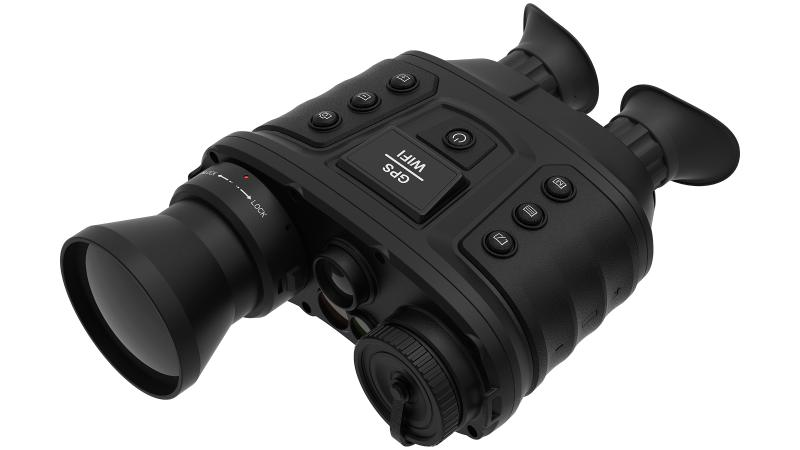

Handheld Thermal Multi-function Binocular Camera

High sensitivity thermal module with 384 × 288 resolution
NETD < 40 mk (@25° C, F#=1.0)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
High quality optical module with 1280 × 960 resolution
Video recording, replay, snapshot, and search (users can review event on device)
Wi-Fi hot spot
Bulit-in Laser-distance detection module, compass, and GPS module, Supports self-positioning and target positioning
Digital Magnetic Compass and Inclination Sensor

View Less

Data Sheet

Available models:

DS-2TS36-100VI/WL

EOL

Specification
Resources
Accessories

Data Sheet

Thermal Module
NETD< 40mk (@25°C,F#=1.0)
Field of View6.23° × 4.98° (H × V)
ApertureF 1.4
Pixel Pitch17μm
Response waveband8μm to 14μm
MRAD (IFOV)0.17
Digital Zoom4×
Max. Resolution640 × 512
Lens (focal length)100mm Electric focus

Image Display
Thermal/Optical ModeThermal view, B/W optical view, image fusion view are selectable
Image FusionColor fusion, B/W fusion
Monitor0.39-inch, OLED, 1024 ×768
PalettesBlack hot, white hot

Optical Module
Max. Resolution1920 × 1080 @25fps
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationB/W : 0.001 lux @ (F1.0 , AGC On)
Lens (focal length)22 mm
Image Enhancement3D DNR, Adaptive AGC

Smart
Laser-Distance DetectionUp to 3 km
Object HighlightYes
Automatic BacklightThe OLED backlight automatically turns off if no human eyes are detected.

System
Measure DistanceMax. 3km
Accuracy0.75m
Nominal Wavelength1550 nm (class1)
Head Accuracy0.2 °(RMS)
Record VideoOn-board video recording
SnapshotOn-board image capturing
Video ReplayYes
Picture SearchYes
Wi-FiYes
GPSYes
StorageBuilt-in memory module (32GB)

Power Supply
Battery TypeFour 18650 batteries, requires 5 hours to be fully charged
Battery Operating Time≥7h
Battery Capacity DisplayYes

General
PowerDC 5V/2A, Max.10W
WeightApprox. 1.5 Kg (3.3 lb)
Protection levelIP67
Dimension (L x W x H)188mm × 276.9mm × 87.4mm (7.4" ×10.9" ×3.4")
Cable OutputAviation plug: connecting to BNC, DB9, and USB
Accessories (Supplied)Battery charger, battery charger power cable, wiping cloth, two wrist straps, User manual, aviation plug cable, eight batteries
MountingUNC 1/4”-20
Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)

Thermal Module

NETD

< 40mk (@25°C,F#=1.0)

Field of View

6.23° × 4.98° (H × V)

Aperture

F 1.4

Pixel Pitch

17μm

Response waveband

8μm to 14μm

MRAD (IFOV)

0.17

Digital Zoom

4×

Max. Resolution

640 × 512

Lens (focal length)

100mm Electric focus

Image Display

Thermal/Optical Mode

Thermal view, B/W optical view, image fusion view are selectable

Image Fusion

Color fusion, B/W fusion

Monitor

0.39-inch, OLED, 1024 ×768

Palettes

Black hot, white hot

Optical Module

Max. Resolution

1920 × 1080 @25fps

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

B/W : 0.001 lux @ (F1.0 , AGC On)

Lens (focal length)

22 mm

Image Enhancement

3D DNR, Adaptive AGC

Smart

Laser-Distance Detection

Up to 3 km

Object Highlight

Yes

Automatic Backlight

The OLED backlight automatically turns off if no human eyes are detected.

System

Measure Distance

Max. 3km

Accuracy

0.75m

Nominal Wavelength

1550 nm (class1)

Head Accuracy

0.2 °(RMS)

Record Video

On-board video recording

Snapshot

On-board image capturing

Video Replay

Yes

Picture Search

Yes

Wi-Fi

Yes

GPS

Yes

Storage

Built-in memory module (32GB)

Power Supply

Battery Type

Four 18650 batteries, requires 5 hours to be fully charged

Battery Operating Time

≥7h

Battery Capacity Display

Yes

General

Power

DC 5V/2A, Max.10W

Weight

Approx. 1.5 Kg (3.3 lb)

Protection level

IP67

Dimension (L x W x H)

188mm × 276.9mm × 87.4mm (7.4" ×10.9" ×3.4")

Cable Output

Aviation plug: connecting to BNC, DB9, and USB

Accessories (Supplied)

Battery charger, battery charger power cable, wiping cloth, two wrist straps, User manual, aviation plug cable, eight batteries

Mounting

UNC 1/4”-20

Working Temperature

-30 °C to 60 °C (-22 °F to 140 °F)
