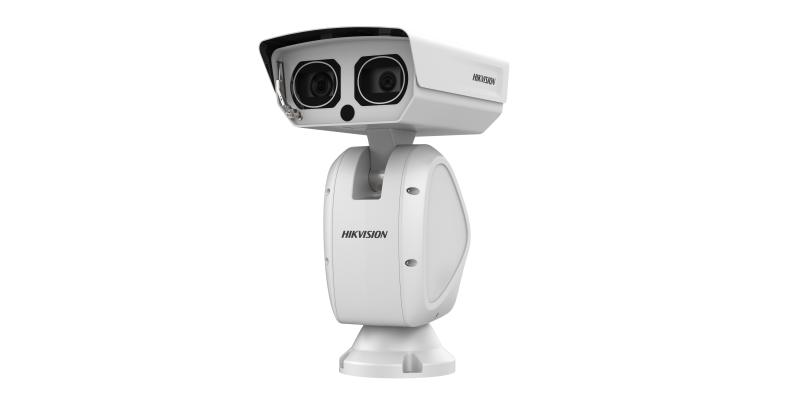

9-inch 2 MP 36X DarkFighter Laser Network Positioning System

1/1.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination:Color: 0.002 Lux @(F1.3, AGC ON) ,B/W: 0.0002 Lux @(F1.3, AGC ON),0 Lux with Laser
Rain-sensing auto wiper
36× optical zoom, 16×digital zoom
140dB WDR, 3D DNR, HLC, BLC, Smart IR
24 VAC
Support H.265+/H.265 video compression
Support up to 800 m laser distance

View Less

Data Sheet

Available models:

DS-2DY9236I8X-A(T3)

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/1.8＂ progressive scan CMOS
Min. Illuminationcolor: 0.002 Lux @(F1.3,AGC ON) ; B/W: 0.0002 Lux @ (F1.3, AGC ON), 0 Lux with Laser
Shutter Speed1/1s ~ 1/30,000s
Focusauto;semi-auto;manual
Day & NightICR
BLCyes
WDR140 dB WDR
HLCyes
3D DNRyes
EISYes. Built-in gyroscope to improve EIS performance.
Regional Exposureyes
Regional Focusyes
White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor
Digital Zoom16x
Optical Zoom36x
Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
General Functionmirror, password protection, watermark, IP address filter

Lens
Focal Length6.0mm to 216mm，36× Optical
Zoom Speedapprox. 4.5 s
FOVHorizontal field of view: 56.6° to 2.0° (wide-tele), Vertical field of view: 33.7° to 1.2° (wide-tele), Diagonal field of view: 63.4° to 2.3° (wide-tele)
Aperture F1.3

Illuminator
Laser DistanceUp to 800 m laser distance

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-90° to 40° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 100°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIyes

Audio
Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

Smart Features
Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;unattended baggage detection;object removal detection;vandal-proof alarm
Smart Trackingmanual tracking;auto-tracking;event tracking
Smart RecordANR;Dual-VCA
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIONVIF (Profile S, Profile G, Profile T); ISAPI;Hikvision SDK
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+

Interface
Communication Interface1 RJ45 10 M/100 M Ethernet Interface
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm Input7 alarm inputs
Alarm Output2 alarm outputs
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω
Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

General
Power24 VAC. Max. 120 W, including max. 25 W for laser and max. 13W for heater
Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
WiperYes. Rain-sensing auto control
MaterialAluminum alloy ADC12
Dimensions256×334×505mm(10.08" × 13.15" × 19.88")
WeightApprox. 17 kg (37.48lb)
Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval
ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
