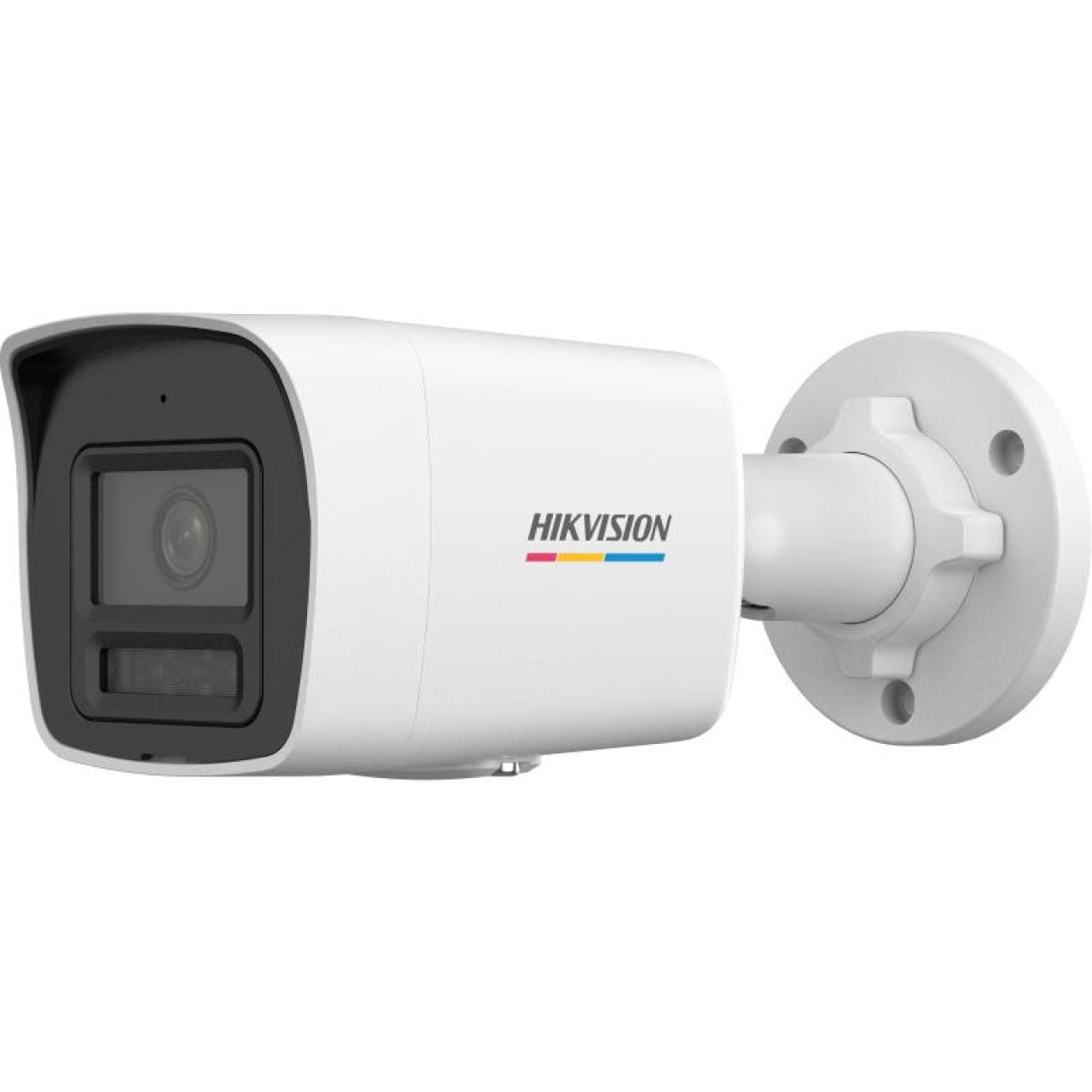

4 MP ColorVu 3.0 Fixed Bullet Network Camera

Name: 4 MP ColorVu 3.0 Fixed Bullet Network Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

HikAI-ISP for excellent noise reduction effect
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
Motion Detection 3.0, more accurate on person and vehicle classification
/SL/SRB: Provide real-time security via built-in two-way audio and strobe light alarm
Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
-F: Support on-board storage up to 512 GB (SD card slot) (Optional)
Water and dust resistant (IP67)

View Less

Available models:

DS-2CD1047S3H-LIU(2.8mm)(HIK ITALY)

View more View Less

DS-2CD1047S3H-LIU#IT

Specification
Resources
Accessories

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.0001 Lux @ (F1.0, AGC ON)
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 104°, vertical FOV 54.4°, diagonal FOV 126.7° 4 mm, horizontal FOV 89.3°, vertical FOV 48.2°, diagonal FOV 106.5°
Lens MountM16
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 2.5 m to ∞ 4 mm: 2.8 m to ∞

DORI
DORI2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m

Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 24 fps (768 × 432, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding

Audio
Audio TypeMono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/HostUp to 32 users 3 user levels: administrator, operator, and user
ClientiVMS-4200,Hik-Connect
Web BrowserPlug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+

Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-LIUF/-SL/-SRB: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, -LIU: NA
Built-in MicrophoneYes,1 built-in microphone
Built-in Speaker-SL/-SRB: Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB, -LIU/-LIUF: NA
Reset Key-LIUF/-SL/-SRB: Yes, -LIU: NA

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP,notify surveillance center,send email,trigger recording,trigger capture

General
Power-LIU: 12 VDC ± 25%, 0.58 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3,max. 9 W, -LIUF: 12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3,max. 10 W, -SL/SRB: 12 VDC ± 25%, 0.84 A, max. 10.1 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3,max. 12.1 W
MaterialCover: PLASTIC, main body: METAL
Dimension-LIU: 69.1 mm × 66.9 mm × 172.9 mm (2.7" × 2.6" × 6.8"), -LIUF/-SL/-SRB: 69.1 mm × 67.4 mm × 179 mm (2.7" × 2.7" × 7.1")
Package Dimension210 mm × 116 mm × 106 mm (8.3" × 4.6" × 4.2")
-LIU: Approx. 310 g (0.7 lb.), -LIUF: Approx. 315 g (0.7 lb.), -SL/-SRB: Approx. 325 g (0.7 lb.)
With Package Weight-LIU: Approx. 465 g (1.0 lb.), -LIUF: Approx. 470 g (1.0 lb.), -SL/-SRB: Approx. 495 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
General FunctionHeartbeat,mirror,flash log,password reset via email,password protection,anti-banding
Flashing Light-SL: White Light, -SRB: Red and Blue Light, -LIU/LIUF: NA

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
ProtectionIP67: IEC 60529-2013

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.0001 Lux @ (F1.0, AGC ON)

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 104°, vertical FOV 54.4°, diagonal FOV 126.7° 4 mm, horizontal FOV 89.3°, vertical FOV 48.2°, diagonal FOV 106.5°

Lens Mount

M16

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm: 2.5 m to ∞ 4 mm: 2.8 m to ∞

DORI

2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m

Illuminator

Supplement Light Type

IR,White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 24 fps (768 × 432, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP

Simultaneous Live View

Up to 6 channels

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+


Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-LIUF/-SL/-SRB: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, -LIU: NA

Built-in Microphone

Yes,1 built-in microphone

Built-in Speaker

-SL/-SRB: Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB, -LIU/-LIUF: NA

Reset Key

-LIUF/-SL/-SRB: Yes, -LIU: NA

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP,notify surveillance center,send email,trigger recording,trigger capture

General

Power

-LIU: 12 VDC ± 25%, 0.58 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3,max. 9 W, -LIUF: 12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3,max. 10 W, -SL/SRB: 12 VDC ± 25%, 0.84 A, max. 10.1 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3,max. 12.1 W

Material

Cover: PLASTIC, main body: METAL

Dimension

-LIU: 69.1 mm × 66.9 mm × 172.9 mm (2.7" × 2.6" × 6.8"), -LIUF/-SL/-SRB: 69.1 mm × 67.4 mm × 179 mm (2.7" × 2.7" × 7.1")

Package Dimension

210 mm × 116 mm × 106 mm (8.3" × 4.6" × 4.2")

-LIU: Approx. 310 g (0.7 lb.), -LIUF: Approx. 315 g (0.7 lb.), -SL/-SRB: Approx. 325 g (0.7 lb.)

With Package Weight

-LIU: Approx. 465 g (1.0 lb.), -LIUF: Approx. 470 g (1.0 lb.), -SL/-SRB: Approx. 495 g (1.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German

General Function

Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding

Flashing Light

-SL: White Light, -SRB: Red and Blue Light, -LIU/LIUF: NA

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU

Protection

IP67: IEC 60529-2013
