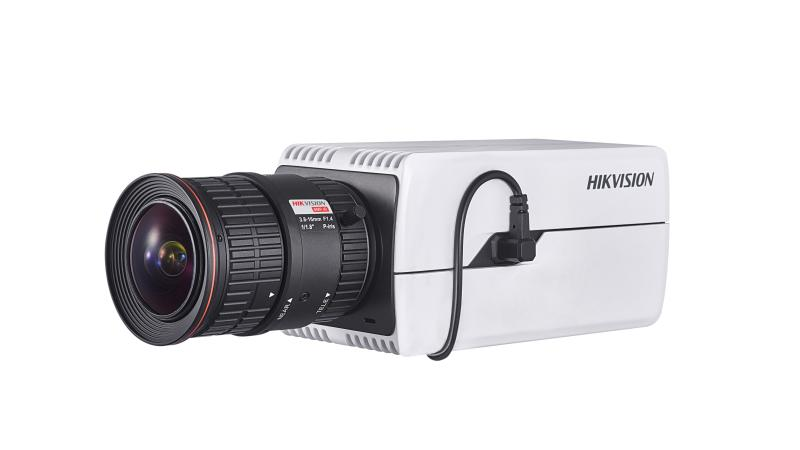

2MP DarkFighterX Box With Housing Network Camera

Hikvision DarkfighterX series camera adopts the patented dual-sensor design to process color and brightness independently, and outputs one FULL-COLOR image
High quality imaging with 2 MP resolution
Efficient H.265 compression technology to save bandwidth and storage
6 behavior analyses, 3 exception detection, and face detection.

View Less

Available models:

DS-2CD5028G0/E-HI(5-50mm)

DS-2CD5028G0/E-HI

EOL

Specification
Resources
Accessories

Camera
Image SensorDual-sensor, 1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.001 Lux @ (F1.5, AGC ON), B/W: 0.0001Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed1 s - 1/30,000 s
Slow ShutterSupport
DNR3D DNR
WDRDWDR
Day & NightAuto
Auto-IrisHALL driver

Lens
ApertureF1.5 to F2.9
FOVHorizontal field of view: 60.5° to 6.3° ,Vertical field of view: 34.9° to 3.54°,Diagonal field of view: 68.3° to 7.3°
Focal length5 to 50 mm

Audio
Audio Compression16kHz / 32kHz / 44.1kHz / 48kHz
Audio I/OSupport

Image EnhancementBLC/ 3D DNR/Defog
Day/Night SwitchDay/Night/Auto/Scheduled
Image SettingsRotate mode, saturation, brightness, contrast, and sharpness are adjustable by client software or web browser
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240),
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network
ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflict, HDD full, HDD error
SecurityTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Simultaneous Live ViewONVIF (PROFILE S, PROFILE G), ISAPI, SDK
User/HostUp to 20 channels
ClientUp to 32 users,3 levels: Administrator, Operator and User
Web BrowseriVMS-4200
DetectionSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
General FunctionUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Aggiornamento FirmwareOne-key reset, anti-flicker, three streams, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter
Smart featuresIE8+, Chrome31-44, Firefox 30.0 - 51

Interface
Communication InterfaceBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Alarm1-ch 3.5 mm input (line in), 1-ch 3.5mm output (line out),
Video Output1 RJ45 10M/100M Ethernet port,1 RS-485 interface: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
On-board Storage2 inputs, 2 outputs
SVCCVBS
Housing interfaceYes

Compression Standard
H.264 TypeBaseline Profile/Main Profile/High Profile
Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.265 TypeMain Profile
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Video Bit Rate32 Kbps to 16 Mbps
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

IR
IR RangeUp to 100 m
Wavelength850 nm

Road Traffic and Vehicle Detection
AccuracyApprox.3800 g (8.38 lb.)

Smart Feature-set
Face DetectionSupport
Exception DetectionScene change detection, audio exception detection, defocus detection
Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Region of InterestSupport 4 fixed regions for each stream

General
Power Supply‘-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
WeightCamera: 445.3 × 110 × 169.2 mm (17.53" × 4.33" × 6.66")
Power Consumption24 VAC ± 20%, terminal block
Shipping Weight24 VAC ± 20%,Heater off: max. 35W/1.5A,Heater on: max. 43W/1.79A
WiperAluminum alloy housing, plastic sun shield

Camera

Image Sensor

Dual-sensor, 1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.001 Lux @ (F1.5, AGC ON), B/W: 0.0001Lux @ (F1.5, AGC ON), 0 Lux with IR

Shutter Speed

1 s - 1/30,000 s

Slow Shutter

Support

DNR

3D DNR

WDR

DWDR

Day & Night

Auto

Auto-Iris

HALL driver

Lens

Aperture

F1.5 to F2.9

FOV

Horizontal field of view: 60.5° to 6.3° ,Vertical field of view: 34.9° to 3.54°,Diagonal field of view: 68.3° to 7.3°

Focal length

5 to 50 mm

Audio

Audio Compression

16kHz / 32kHz / 44.1kHz / 48kHz

Audio I/O

Support


Image Enhancement

BLC/ 3D DNR/Defog

Day/Night Switch

Day/Night/Auto/Scheduled

Image Settings

Rotate mode, saturation, brightness, contrast, and sharpness are adjustable by client software or web browser

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240),

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network

Protocols

Motion detection, video tampering alarm, network disconnected, IP address conflict, HDD full, HDD error

Security

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Simultaneous Live View

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

User/Host

Up to 20 channels

Client

Up to 32 users,3 levels: Administrator, Operator and User

Web Browser

iVMS-4200

Detection

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

General Function

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Aggiornamento Firmware

One-key reset, anti-flicker, three streams, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter

Smart features

IE8+, Chrome31-44, Firefox 30.0 - 51

Interface

Communication Interface

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Alarm

1-ch 3.5 mm input (line in), 1-ch 3.5mm output (line out),

Video Output

1 RJ45 10M/100M Ethernet port,1 RS-485 interface: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

On-board Storage

2 inputs, 2 outputs

SVC

CVBS

Housing interface

Yes

Compression Standard

H.264 Type

Baseline Profile/Main Profile/High Profile

Video Compression

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

H.265 Type

Main Profile

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Video Bit Rate

32 Kbps to 16 Mbps

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

IR Range

Up to 100 m

Wavelength

850 nm

Road Traffic and Vehicle Detection

Accuracy

Approx.3800 g (8.38 lb.)

Smart Feature-set

Face Detection

Support

Exception Detection

Scene change detection, audio exception detection, defocus detection

Behavior Analysis

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Region of Interest

Support 4 fixed regions for each stream

General

Power Supply

‘-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)

Weight

Camera: 445.3 × 110 × 169.2 mm (17.53" × 4.33" × 6.66")

Power Consumption

24 VAC ± 20%, terminal block

Shipping Weight

24 VAC ± 20%,Heater off: max. 35W/1.5A,Heater on: max. 43W/1.79A

Wiper

Aluminum alloy housing, plastic sun shield
