*Images are for illustrative purposes. Actual product appearance and specifications may vary.
add compare icon

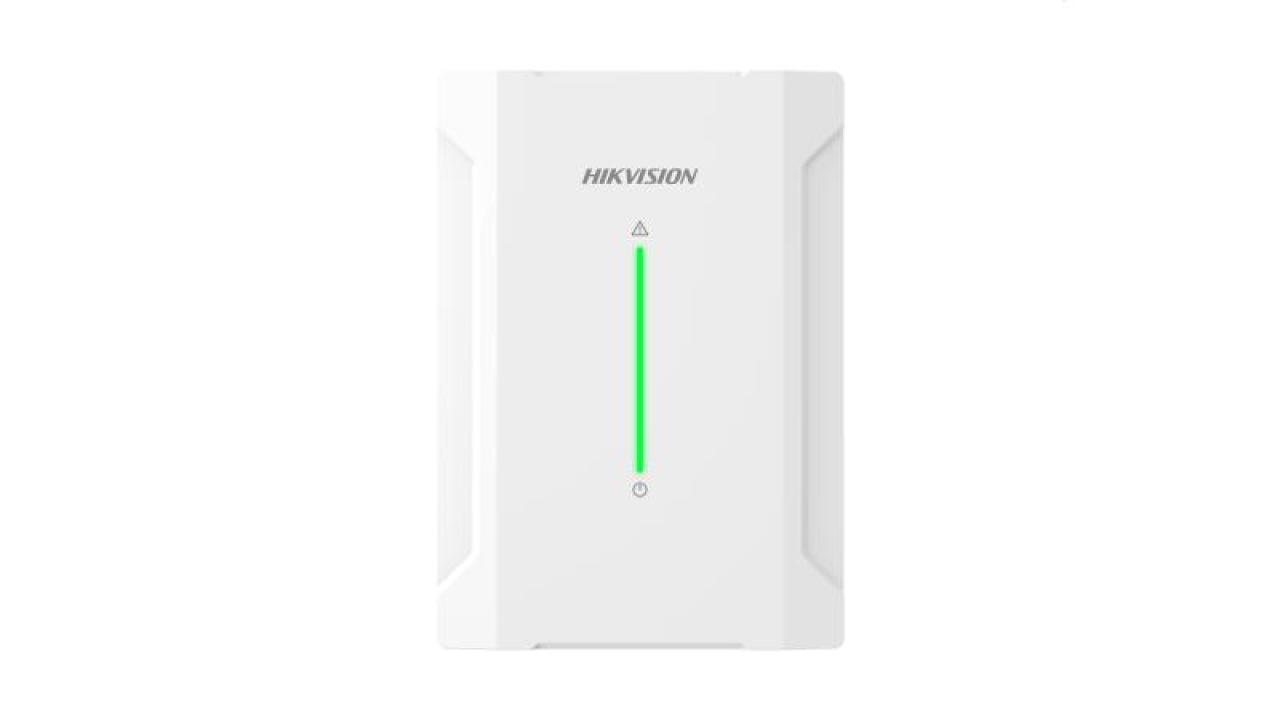

Bus Hub

  • Distributes one input Bus signal to four output ports for seamless branching.
  • Supports flexible topologies including star and tree connections.
  • Ensures reliable transmission with integrated signal regeneration.
  • Extends overall Bus communication range for long-distance deployment.
  • Enables flexible wiring for area segmentation, branching scenarios, and legacy system upgrades.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PR511-4
View more View Less
DS-PR511-4
Data Sheet

Specification

  • Bus interconnection
  • Bus-extenderSupport
  • Bus technologyHalf-Duplex RS-485
  • Bus wiring4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
  • Power supply - general
  • Quiescent current12 VDC norminal (9~16 VDC), powered by bus
  • Input voltage10 mA @12VDC
  • Max. current85 mA @12VDC
  • Environmental
  • Operating temperature-10°C to 50°C (14°F to 122°F), indoor use only
  • Storage temperature -20°C to 60°C (-4°F to 140°F)
  • Relative humidity10% ~ 90% non-condensing
  • Physical
  • Dimension (W × H × D) 110 × 155 × 31 mm
  • 210 g
  • Installation methodWall mount
  • Compliance
  • Electrical conformityCE, CB
  • EN 50131Security Grade 2, Environmental Class II
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Bus interconnection
Bus-extender
Support
Bus technology
Half-Duplex RS-485
Bus wiring
4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Power supply - general
Quiescent current
12 VDC norminal (9~16 VDC), powered by bus
Input voltage
10 mA @12VDC
Max. current
85 mA @12VDC
Environmental
Operating temperature
-10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature
-20°C to 60°C (-4°F to 140°F)
Relative humidity
10% ~ 90% non-condensing
Physical
Dimension (W × H × D)
110 × 155 × 31 mm
210 g
Installation method
Wall mount
Compliance
Electrical conformity
CE, CB
EN 50131
Security Grade 2, Environmental Class II
