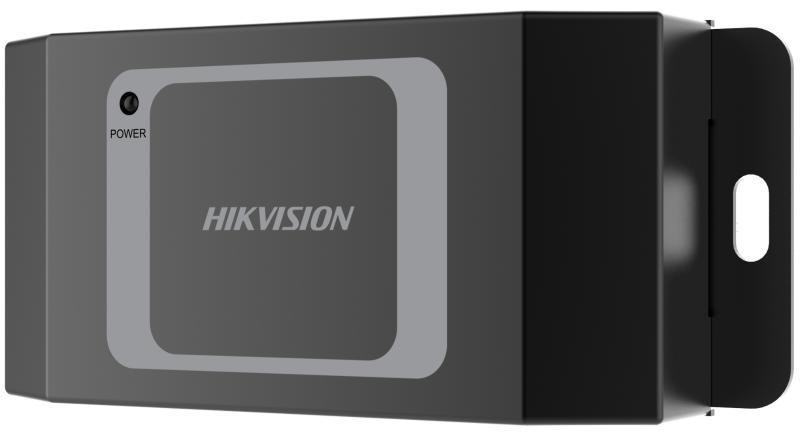

DS-K2M061


    Secure Door Control Module

    • Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
    • Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
    • Supports tampering alarm
    • Supports RS-485 communication indicators to show the communication status
    • 4-ch DIP switch supporting ID No. configuration
    • Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
    • Fire interface and exit button linkage
    View Less
    View more

    Available models:

    DS-K2M061

    Specification

    • Interface
    • Lock control1
    • Exit button1
    • Door contact input1
    • Alarm input2
    • Alarm output1
    • RS-4851
    • Wiegand1
    • General
    • Indicator1 for power supply
    • Power supply12 VDC 0.5A
    • Working temperature-40 °C to 70 °C
    • Working humidity0% to 90%
    • Dimensions48 mm × 115 mm × 26 mm (1.9" × 4.5" × 1.0")
    • InstallationWall Mounting
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Interface
    Lock control
    1
    Exit button
    1
    Door contact input
    1
    Alarm input
    2
    Alarm output
    1
    RS-485
    1
    Wiegand
    1
    General
    Indicator
    1 for power supply
    Power supply
    12 VDC 0.5A
    Working temperature
    -40 °C to 70 °C
    Working humidity
    0% to 90%
    Dimensions
    48 mm × 115 mm × 26 mm (1.9" × 4.5" × 1.0")
    Installation
    Wall Mounting
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Interface
    • Lock control1
    • Exit button1
    • Door contact input1
    • Alarm input2
    • Alarm output1
    • RS-4851
    • Wiegand1
    General
    • Indicator1 for power supply
    • Power supply12 VDC 0.5A
    • Working temperature-40 °C to 70 °C
    • Working humidity0% to 90%
    • Dimensions48 mm × 115 mm × 26 mm (1.9" × 4.5" × 1.0")
    • InstallationWall Mounting
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
