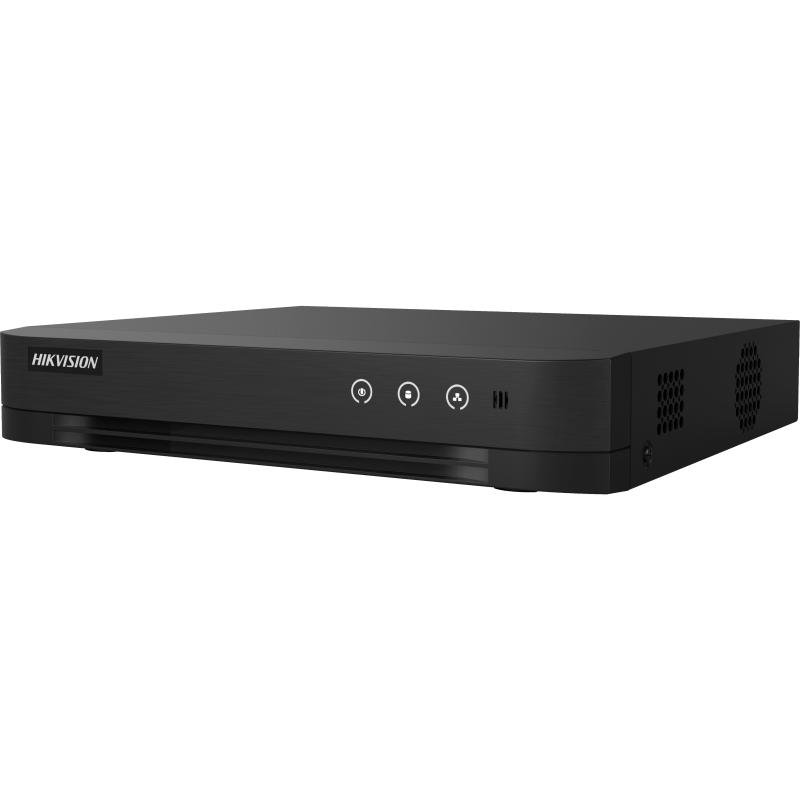

8-ch 1080p Lite 1U H.265 DVR

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 10-ch IP camera input (up to 5 MP)
  • Up to 1080p Lite@15 fps encoding capability
  • Max. 1200 m for 720p HDTVI signal

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-7208HGHI-K1(S)
DS-7208HGHI-K1
Data Sheet

Specification

  • Motion Detection 2.0
  • Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
  • Video and Audio
  • IP Video Input2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way AudioReuse the first audio input
  • Synchronous playback8-ch
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
  • Frame RateMain stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
  • Video Bitrate32 Kbps to 4 Mbps
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Remote Connection64
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
  • Total Bandwidth72 Mbps
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 4 TB capacity for each disk
  • USB InterfaceRear panel: 2 × USB 2.0
  • Alarm In/OutN/A
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 17 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)263 × 227 × 48 mm (10.4 × 8.9 × 1.9 inch)
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video and Audio
IP Video Input
2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Support
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
Reuse the first audio input
Synchronous playback
8-ch
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate
32 Kbps to 4 Mbps
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Remote Connection
64
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Total Bandwidth
72 Mbps
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 4 TB capacity for each disk
USB Interface
Rear panel: 2 × USB 2.0
Alarm In/Out
N/A
General
Power Supply
12 VDC, 1.5 A
Consumption
≤ 17 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
263 × 227 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight
≤ 1 kg (without HDD, 2.2 lb.)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Motion Detection 2.0
  • Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video and Audio
  • IP Video Input2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way AudioReuse the first audio input
  • Synchronous playback8-ch
Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
  • Frame RateMain stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
  • Video Bitrate32 Kbps to 4 Mbps
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
Network
  • Remote Connection64
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
  • Total Bandwidth72 Mbps
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 4 TB capacity for each disk
  • USB InterfaceRear panel: 2 × USB 2.0
  • Alarm In/OutN/A
General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 17 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)263 × 227 × 48 mm (10.4 × 8.9 × 1.9 inch)
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_Asia_V4.83.401_241110
Firmware_V4.83.401_241110
Firmware_Russia_V4.83.401_241110
Turbo HD DVR V4.83.401build241110 Release Notes
