Discontinued

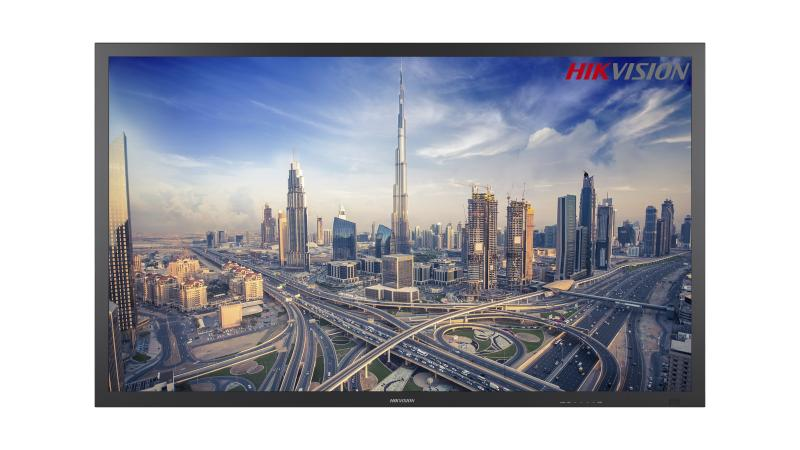

55-inch 4K Monitor

  • Industrial grade A+ LCD panel
  • Designed for surveillance with high reliability and stability
  • Broader view and more abundant details with 4K resolution
  • Display perfect picture with 16.7 million color
  • Both horizontal and vertical display accessible
  • Horizontal 178°, Vertical 178°
  • Dedicated project RS-232 interface
  • Build-in loudspeaker, audio visual connection
  • VESA standard
  • Metal shell
  • Fine and clear display with the resolution of 3840 × 2160@60 Hz
  • 3D digital interleaver and 3D DNR technology
  • Programmable 12-bit RGB gamma correction technology
  • Sound setting mode accessible
  • Lower EMI radiation by spread-spectrum technology through software
  • Elegant appearance with the top, left and right bezels equal to each other
  • Capture the moment with one-touch; Ensure security with high-temperature alarm
  • Updating through USB
  • 3.5 mm audio input
  • Work continuously by 7 × 24 h
  • 2 MACE independent color correction engines for improving the contrast, details, skin color, and edge of images
  • Signal input through DP, DVI, HDMI, and VGA interface
View Less
View more

Available models:

DS-D5055UL-B
DS-D5055UL-B Discontinued

Specification

  • Display
  • Screen Size54.64”
  • Active Display Area1209.6 (H) mm × 680.4 (V) mm
  • Resolution3840 × 2160@60 Hz
  • BacklightD-LED
  • Pixel Pitch0.315 (H) mm × 0.315 (V) mm
  • Brightness350 cd/m2
  • Viewing Angle178° (H) / 178°(V)
  • Color Depth10bit (8 bit + FRC)
  • Contrast Ratio1200:1
  • Response Time8 ms
  • Refresh Rate60 Hz
  • Haze2 %
  • Reliability7 × 24 H
  • Color Gamut72%
  • Interface
  • Video & Audio InputHDMI × 1, DP × 1, DVI × 1, VGA × 1, AUDIO IN × 1
  • Video & Audio OutputAUDIO OUT × 1, Speaker (8Ω 5W) × 2
  • Data Transmission InterfaceUSB × 1
  • Control InterfaceRS-232 IN × 1, RS-232 OUT × 1
  • Power
  • Power Supply100~240 VAC, 50/60Hz
  • Power Consumption≤ 190W
  • Standby Consumption≤ 0.5 W
  • Working Environment
  • Working Temperature5 ℃ to 40 ℃ (41 ℉ to 104 ℉)
  • Working Humidity20% to 80% RH (Non-Condensing)
  • Storage Temperature-10 ℃ to 60 ℃ (14 ℉ to 140 ℉)
  • Storage Humidity10% to 80% RH (Non-Condensing)
  • General
  • Casing MaterialMetal
  • VESA400 mm × 400 mm, 4-M6 × 10 screw holes
  • Bezel Width29.3mm (top/left/right), 32.8mm (bottom)
  • Product Dimensions (W × H × D)1267.1 mm × 741.5 mm × 78.24 mm (49.89'' × 29.19'' × 3.08'')
  • Package Dimensions (W × H × D)1403 mm × 898 mm × 303 mm (55.24'' × 35.35'' × 11.93'')
  • Net Weight28.32 kg (62.43 lb)
  • Gross Weight31.24 kg (68.87 lb)
  • Packing Listremote control × 1, power cable × 1, screws × 1 package
  • Remarks*The base is not included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.

Specification

Specification
Display
  • Screen Size54.64”
  • Active Display Area1209.6 (H) mm × 680.4 (V) mm
  • Resolution3840 × 2160@60 Hz
  • BacklightD-LED
  • Pixel Pitch0.315 (H) mm × 0.315 (V) mm
  • Brightness350 cd/m2
  • Viewing Angle178° (H) / 178°(V)
  • Color Depth10bit (8 bit + FRC)
  • Contrast Ratio1200:1
  • Response Time8 ms
  • Refresh Rate60 Hz
  • Haze2 %
  • Reliability7 × 24 H
  • Color Gamut72%
Interface
  • Video & Audio InputHDMI × 1, DP × 1, DVI × 1, VGA × 1, AUDIO IN × 1
  • Video & Audio OutputAUDIO OUT × 1, Speaker (8Ω 5W) × 2
  • Data Transmission InterfaceUSB × 1
  • Control InterfaceRS-232 IN × 1, RS-232 OUT × 1
Power
  • Power Supply100~240 VAC, 50/60Hz
  • Power Consumption≤ 190W
  • Standby Consumption≤ 0.5 W
Working Environment
  • Working Temperature5 ℃ to 40 ℃ (41 ℉ to 104 ℉)
  • Working Humidity20% to 80% RH (Non-Condensing)
  • Storage Temperature-10 ℃ to 60 ℃ (14 ℉ to 140 ℉)
  • Storage Humidity10% to 80% RH (Non-Condensing)
General
  • Casing MaterialMetal
  • VESA400 mm × 400 mm, 4-M6 × 10 screw holes
  • Bezel Width29.3mm (top/left/right), 32.8mm (bottom)
  • Product Dimensions (W × H × D)1267.1 mm × 741.5 mm × 78.24 mm (49.89'' × 29.19'' × 3.08'')
  • Package Dimensions (W × H × D)1403 mm × 898 mm × 303 mm (55.24'' × 35.35'' × 11.93'')
  • Net Weight28.32 kg (62.43 lb)
  • Gross Weight31.24 kg (68.87 lb)
  • Packing Listremote control × 1, power cable × 1, screws × 1 package
  • Remarks*The base is not included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Applied to:
DS-D5055UL-B
