Discontinued

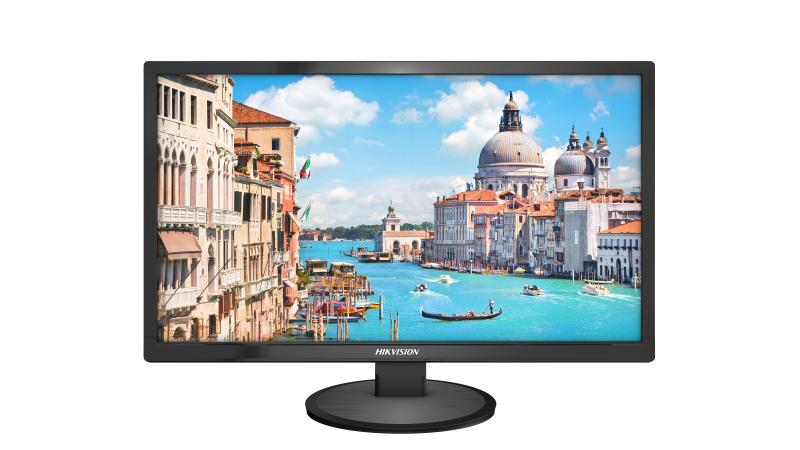

28-inch FHD Monitor

  • Designed for surveillance, high reliability and stability;
  • 28” Fashion appearance, very narrow frame;
  • 4K resolution is 4 times 1080P can own broader view and more abundant details;
  • VESA standard;
  • Wide view angle: Horizontal 170°, Vertical 160°;
  • High reliability and stability, 24/7 operation;
  • Build-in speaker
View Less
View more

Available models:

DS-D5028UC
DS-D5028UC Discontinued

Specification

  • General
  • Power SupplyAC 110-240V;50/60Hz
  • Standby Power Consumption≤ 0.5 W
  • Working Temperature0 °C ~ 40 °C(32℉ ~ 104℉)
  • Power Consumption≤45 W(Typ), ≤70 W(Max)
  • Working Humidity10 to 85 %
  • Storage Humidity5 to 85%
  • Packing Dimensions(W*H*D)730mm x 527mm x 148mm
  • Loudspeaker2 * 3W
  • Storage Temperature-10 to 55 º C (14 to 131 º F)
  • Dimensions(W*H*D)659.7mm x 391mm x 49.3mm / 659.7mm x 452mm x 250 mm(with base)
  • Color of CasingBlack
  • VESAM4, 100 mm × 100 mm
  • Net Weight5.6 kg
  • Gross Weight7.2 kg
  • Interfaces
  • DP Input1
  • HDMI Input1
  • VGA Input1
  • Audio Input1
  • Accessories
  • Power Cord1
  • HDMI cable1
  • User Manual1
  • Warranty Card1
  • Monitor
  • BacklightLED Backlight
  • Screen Size27.9’’
  • Pixel Pitch0.16 mm (H) × 0.16 mm (V)
  • Max Resolution1920 × 1080@60Hz( Analog ), 3840 x 2160@60Hz(HDMI2.0/DP)
  • Brightness300 cd/m²
  • Contrast1000: 1
  • Response Time5.5 ms
  • Color1.07B (8bit + FRC)
  • Active Area620.93(H) mm x 341.28(V) mm
  • Viewing AngleHorizantal 170°, vertical 160º
  • Bracket
  • PedestalContain 1
  • Wall MountedOptional DS-DM1940W

Specification

Specification
General
  • Power SupplyAC 110-240V;50/60Hz
  • Standby Power Consumption≤ 0.5 W
  • Working Temperature0 °C ~ 40 °C(32℉ ~ 104℉)
  • Power Consumption≤45 W(Typ), ≤70 W(Max)
  • Working Humidity10 to 85 %
  • Storage Humidity5 to 85%
  • Packing Dimensions(W*H*D)730mm x 527mm x 148mm
  • Loudspeaker2 * 3W
  • Storage Temperature-10 to 55 º C (14 to 131 º F)
  • Dimensions(W*H*D)659.7mm x 391mm x 49.3mm / 659.7mm x 452mm x 250 mm(with base)
  • Color of CasingBlack
  • VESAM4, 100 mm × 100 mm
  • Net Weight5.6 kg
  • Gross Weight7.2 kg
Interfaces
  • DP Input1
  • HDMI Input1
  • VGA Input1
  • Audio Input1
Accessories
  • Power Cord1
  • HDMI cable1
  • User Manual1
  • Warranty Card1
Monitor
  • BacklightLED Backlight
  • Screen Size27.9’’
  • Pixel Pitch0.16 mm (H) × 0.16 mm (V)
  • Max Resolution1920 × 1080@60Hz( Analog ), 3840 x 2160@60Hz(HDMI2.0/DP)
  • Brightness300 cd/m²
  • Contrast1000: 1
  • Response Time5.5 ms
  • Color1.07B (8bit + FRC)
  • Active Area620.93(H) mm x 341.28(V) mm
  • Viewing AngleHorizantal 170°, vertical 160º
Bracket
  • PedestalContain 1
  • Wall MountedOptional DS-DM1940W
