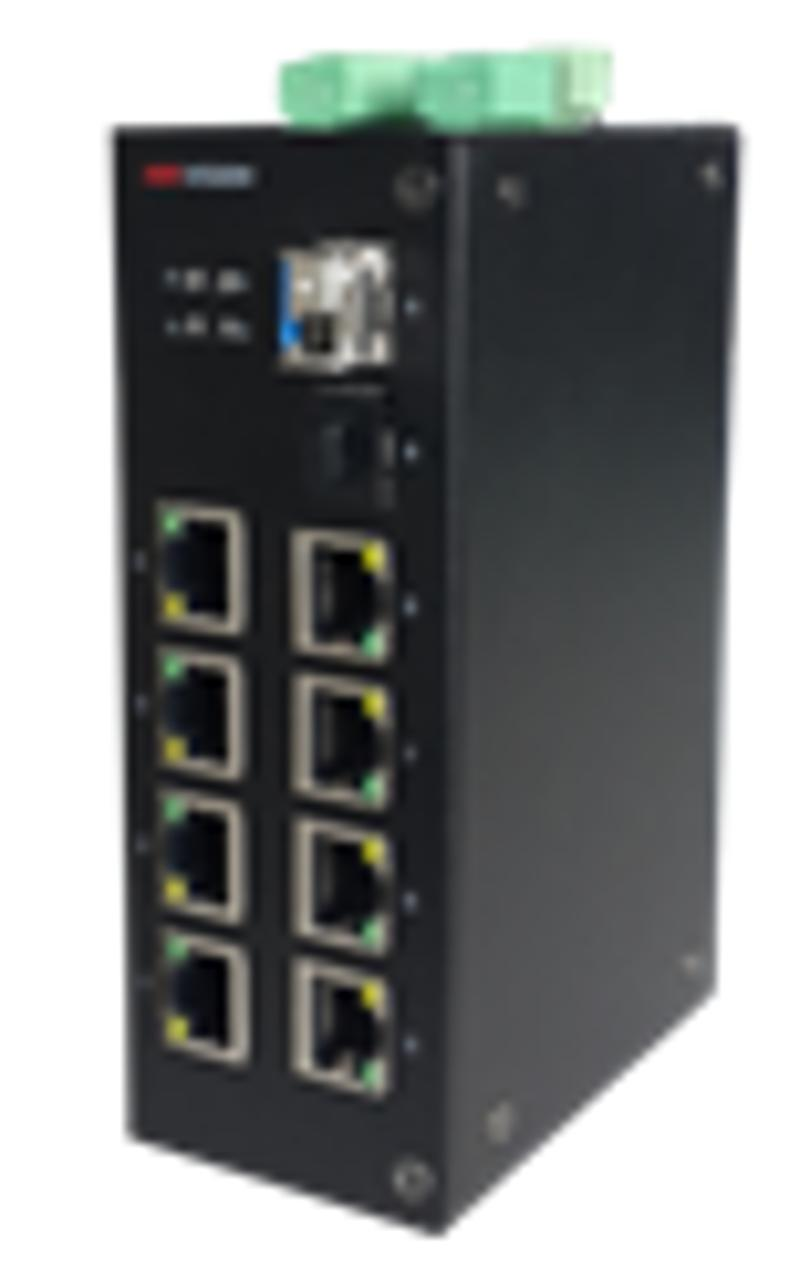

8 Port 1000M Fiber Optical Transceiver

  • 8 port Network optical fiber transmitter
  • Seven 100M electrical interfaces
  • One 1000M electrical interface
  • One 1000M optical interface
  • Ultra long distance: 20 kilometers
View Less
View more
Sales Inquiry
DS-3D208T-A

Specification

  • General
  • Power Supply12 VDC/1 A
  • Working Temperature-30 °C ~ 70 °C (-22 °F ~ 158 °F)
  • Working Humidity5~95% (No Condensation)
  • 0.6 kg (1.32 lb)
  • Consumption< 6W
  • LED IndicatorOPT optical fiber link indicator, PWR power indicator
  • CoverMetal Material, No Fan
  • IP levelIP 40
  • Dimension (H×W×D)138.3 mm×32 mm×99.5 mm (5.44″×1.26″×3.92″)
  • InstallationDIN Industrial Rail Mounted
  • Network
  • Interface8 RJ45, 7 10/100BaseT(X), 1 10/100/1000BaseT(X)
  • Network StandardIEEE802.3, IEEE802.3u, IEEE802.3x
  • Process ModeStorage and Forwarding
  • Flow ControlIEEE802.3x Full Duplex, backpressure
  • Priority Queue4
  • MAC Address Table8k
  • QoS (Quality of Service)Support
  • Exchange Capacity5.4Gbps
  • Packet Forwarding Rate4Mpps
  • Internal Cache1Mbit
  • Optic
  • Interface TypeLC
  • Transmission Distance0~20 km
  • Optical TypeSingle-mode and Single-fiber, 9/125μm
  • Input/output WavelengthTx1310/Rx1550nm
  • Sending Power-6~-1dBm
  • Receiving Sensitivity-21 dB
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Power Supply
12 VDC/1 A
Working Temperature
-30 °C ~ 70 °C (-22 °F ~ 158 °F)
Working Humidity
5~95% (No Condensation)
0.6 kg (1.32 lb)
Consumption
< 6W
LED Indicator
OPT optical fiber link indicator, PWR power indicator
Cover
Metal Material, No Fan
IP level
IP 40
Dimension (H×W×D)
138.3 mm×32 mm×99.5 mm (5.44″×1.26″×3.92″)
Installation
DIN Industrial Rail Mounted
Network
Interface
8 RJ45, 7 10/100BaseT(X), 1 10/100/1000BaseT(X)
Network Standard
IEEE802.3, IEEE802.3u, IEEE802.3x
Process Mode
Storage and Forwarding
Flow Control
IEEE802.3x Full Duplex, backpressure
Priority Queue
4
MAC Address Table
8k
QoS (Quality of Service)
Support
Exchange Capacity
5.4Gbps
Packet Forwarding Rate
4Mpps
Internal Cache
1Mbit
Optic
Interface Type
LC
Transmission Distance
0~20 km
Optical Type
Single-mode and Single-fiber, 9/125μm
Input/output Wavelength
Tx1310/Rx1550nm
Sending Power
-6~-1dBm
Receiving Sensitivity
-21 dB
