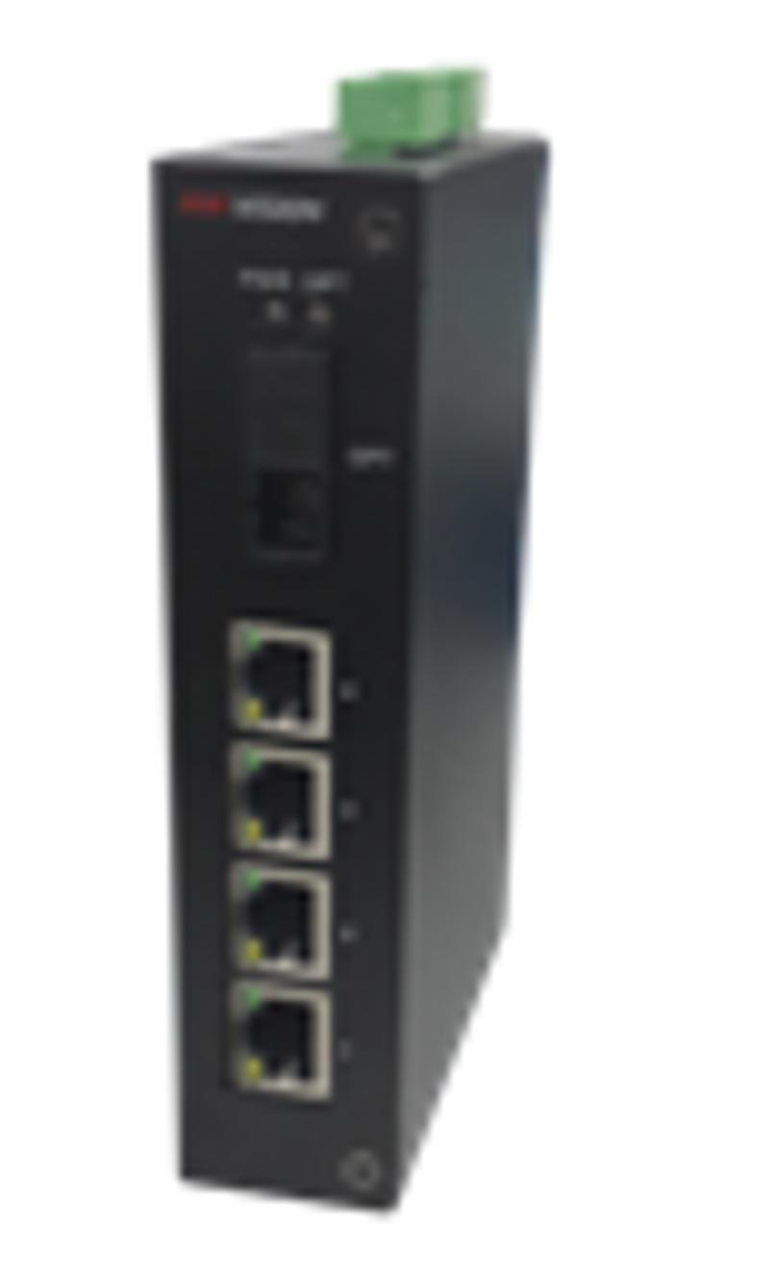

4 Port 100M Fiber Optical Transceiver

  • 4 port Network optical fiber receiver
  • Four 100M electrical interface
  • One 100M optical interface
  • Ultra long distance: 20 kilometers
View Less
View more
Data Sheet
Sales Inquiry
DS-3D04T-A
Data Sheet

Specification

  • General
  • Power Supply12 VDC/1 A
  • Working Temperature-30 °C ~ 70 °C (-22 °F ~ 158 °F)
  • Working Humidity5~95% (No Condensation)
  • 0.4kg (0.88lb)
  • Consumption< 6W
  • LED IndicatorOPT optical fiber link indicator, PWR power indicator
  • CoverMetal Material, No Fan
  • IP levelIP 40
  • Dimension (H×W×D)138.3mm×32mm×99.5mm (5.44″×1.26″×3.92″)
  • InstallationDIN Industrial Rail Mounted
  • Network
  • Interface4 RJ45, 10/100BaseT(X)
  • Network StandardIEEE802.3, IEEE802.3u, IEEE802.3x
  • Process ModeStorage and Forwarding
  • Flow ControlIEEE802.3x Full Duplex, backpressure
  • Priority Queue4
  • MAC Address Table2k
  • QoS (Quality of Service)Support
  • Exchange Capacity1.2Gbps
  • Packet Forwarding Rate0.7Mpps
  • Internal Cache384Kbit
  • Optic
  • Interface TypeSC
  • Transmission Distance0~20 km
  • Optical TypeSingle-mode and Single-fiber, 9/125μm
  • Input/output WavelengthTx1310/Rx1550nm
  • Sending Power-7~-15dBm
  • Receiving Sensitivity-32dB
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Power Supply
12 VDC/1 A
Working Temperature
-30 °C ~ 70 °C (-22 °F ~ 158 °F)
Working Humidity
5~95% (No Condensation)
0.4kg (0.88lb)
Consumption
< 6W
LED Indicator
OPT optical fiber link indicator, PWR power indicator
Cover
Metal Material, No Fan
IP level
IP 40
Dimension (H×W×D)
138.3mm×32mm×99.5mm (5.44″×1.26″×3.92″)
Installation
DIN Industrial Rail Mounted
Network
Interface
4 RJ45, 10/100BaseT(X)
Network Standard
IEEE802.3, IEEE802.3u, IEEE802.3x
Process Mode
Storage and Forwarding
Flow Control
IEEE802.3x Full Duplex, backpressure
Priority Queue
4
MAC Address Table
2k
QoS (Quality of Service)
Support
Exchange Capacity
1.2Gbps
Packet Forwarding Rate
0.7Mpps
Internal Cache
384Kbit
Optic
Interface Type
SC
Transmission Distance
0~20 km
Optical Type
Single-mode and Single-fiber, 9/125μm
Input/output Wavelength
Tx1310/Rx1550nm
Sending Power
-7~-15dBm
Receiving Sensitivity
-32dB
