*Images are for illustrative purposes. Actual product appearance and specifications may vary.

Discontinued

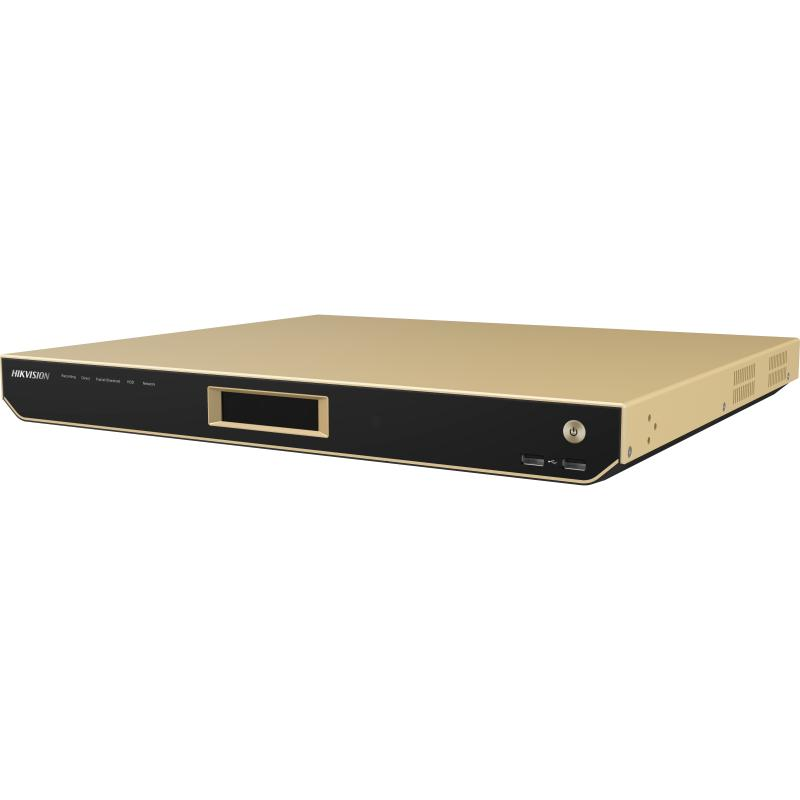

8-ch 1080p H.265 DVS

Three live view control views are provided: movie mode, picture-in-picture mode, and multi-screen mode
Auto live view control realizes automatic switch of teacher image, student image, and multimedia image, which helps to meet the demand of daily teaching requirement
ACC format audio encoding technology, up to 48 KHz audio input sampling rate, and internal sound mixing feature provide high audio quality
Synchronously collect the teacher image, student image, and multimedia image via HDMI/VGA input
Real-time encoding for all cameras with up to 1080p resolution
Support setting different resolution, frame rate, and bitrate for three streams, including main stream, sub-stream, and third stream
Support searching, playback, and downloading courses by keywords
Support publishing courses to FTP server by pressing the publish button on front panel
Support manual live view control, RTMP live view, playback course, and configure course plan in remote client or platform
Support RTMP multimedia.

View Less

Available models:

DS-8108LHFHI-K2

DS-8108LHFHI-K2 ^Discontinued

Specification
Resources
Accessories

Video and Audio
IP Video Input 5-ch ; Up to 2 MP resolution; Support H.265/H.264 IP cameras
Analog Video Input 8-ch; BNC interface ; 1080p/25 fps, 1080p/30 fps, 720p/25 fps, 720p/30 fps, 720p/50 fps, 720p/60 fps; Connectable to CVBS signal
HDMI Output 1-ch; 1024 × 768/60 Hz, 1280 × 720/60 Hz, 1280 × 1024/60 Hz, 1920 × 1080/60 Hz
VGA Output 1-ch; 1024 × 768/60 Hz, 1280 × 720/60 Hz, 1280 × 1024/60 Hz, 1920 × 1080/60 Hz
HDMI Input 2-ch; 1024 × 768, 1280 × 720, 1366 × 768, 1680 × 1050, 1920 × 1080; HDMI and VGA can’t be recognised synchronously in same group
VGA Input 2-ch;1024 × 768, 1280 × 720, 1366 × 768, 1680 × 1050, 1920 × 1080; HDMI and VGA can’t be recognised synchronously in same group
HDMI Loopback 1-ch (matching HDMI video in 1)
VGA Loopback 1-ch (matching VGA video in 1)
Audio Output 1-ch dual track of 3.5 mm connector 1-ch dual track of RCA connector 2-ch single track of green connector. Linear Level; Impedance: 1 KΩ
Audio Input 1-ch dual track of 3.5 mm connector 1-ch dual track of RCA connector. Sampling rate: 48 KHz 6-ch single track of green connector. Sampling rate: 48 KHz
Audio Sampling Rate 48 KHz

Recording
Video Compression H.265/H.264
Encoding Resolution High-definition stream: 1080p/720p/WD1/4CIF/VGA/CIF Standard-definition stream: WD1/4CIF/CIF Fluent stream: CIF/QVGA
Frame Rate 1 to 25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 16 Mbps
Stream Type Video&Audio, Video
Audio Compression AAC
Audio Bitrate 128 Kbps

Decoding
Synchronous playback 1-ch
Dual-stream Support

Network
Network Interface 2, RJ25 10M/100M/1000M Ethernet interface

Auxiliary Interface
SATA 2 SATA interfaces
Capacity Up to 8 TB capacity for each disk
Serial Interface 1 RS-485, full duplex
USB Interface Front Panel: 2 × USB 2.0 Rear Panel: 2 × USB 3.0
Alarm In/Out 2/1

General
Power Supply 12 VDC
Consumption ≤ 40 W(without HDDs)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 1U
Dimension (W × D × H) 440 × 385 × 45 mm (17.3 × 15.2 × 1.8 inch)
≤ 5.5 Kg (12.1 lb)

Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN50130-4, EN 61000-3-2,EN 61000-3-3,EN 55032

Video and Audio

IP Video Input

5-ch ; Up to 2 MP resolution; Support H.265/H.264 IP cameras

Analog Video Input

8-ch; BNC interface ; 1080p/25 fps, 1080p/30 fps, 720p/25 fps, 720p/30 fps, 720p/50 fps, 720p/60 fps; Connectable to CVBS signal

HDMI Output

1-ch; 1024 × 768/60 Hz, 1280 × 720/60 Hz, 1280 × 1024/60 Hz, 1920 × 1080/60 Hz

VGA Output

1-ch; 1024 × 768/60 Hz, 1280 × 720/60 Hz, 1280 × 1024/60 Hz, 1920 × 1080/60 Hz

HDMI Input

2-ch; 1024 × 768, 1280 × 720, 1366 × 768, 1680 × 1050, 1920 × 1080; HDMI and VGA can’t be recognised synchronously in same group

VGA Input

2-ch;1024 × 768, 1280 × 720, 1366 × 768, 1680 × 1050, 1920 × 1080; HDMI and VGA can’t be recognised synchronously in same group

HDMI Loopback

1-ch (matching HDMI video in 1)

VGA Loopback

1-ch (matching VGA video in 1)

Audio Output

1-ch dual track of 3.5 mm connector 1-ch dual track of RCA connector 2-ch single track of green connector. Linear Level; Impedance: 1 KΩ

Audio Input

1-ch dual track of 3.5 mm connector 1-ch dual track of RCA connector. Sampling rate: 48 KHz 6-ch single track of green connector. Sampling rate: 48 KHz

Audio Sampling Rate

48 KHz

Recording

Video Compression

H.265/H.264

Encoding Resolution

High-definition stream: 1080p/720p/WD1/4CIF/VGA/CIF Standard-definition stream: WD1/4CIF/CIF Fluent stream: CIF/QVGA

Frame Rate

1 to 25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 16 Mbps

Stream Type

Video&Audio, Video

Audio Compression

AAC

Audio Bitrate

128 Kbps

Decoding

Synchronous playback

1-ch

Dual-stream

Support

Network

Network Interface

2, RJ25 10M/100M/1000M Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 8 TB capacity for each disk

Serial Interface

1 RS-485, full duplex

USB Interface

Front Panel: 2 × USB 2.0 Rear Panel: 2 × USB 3.0

Alarm In/Out

2/1

General

Power Supply

12 VDC

Consumption

≤ 40 W(without HDDs)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Chassis

Dimension (W × D × H)

440 × 385 × 45 mm (17.3 × 15.2 × 1.8 inch)

≤ 5.5 Kg (12.1 lb)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

EN50130-4, EN 61000-3-2,EN 61000-3-3,EN 55032

Technical documents

Quick Start Guide

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware_V3.5.50_210116

Applied to:

DS-8108LHFHI-K2
