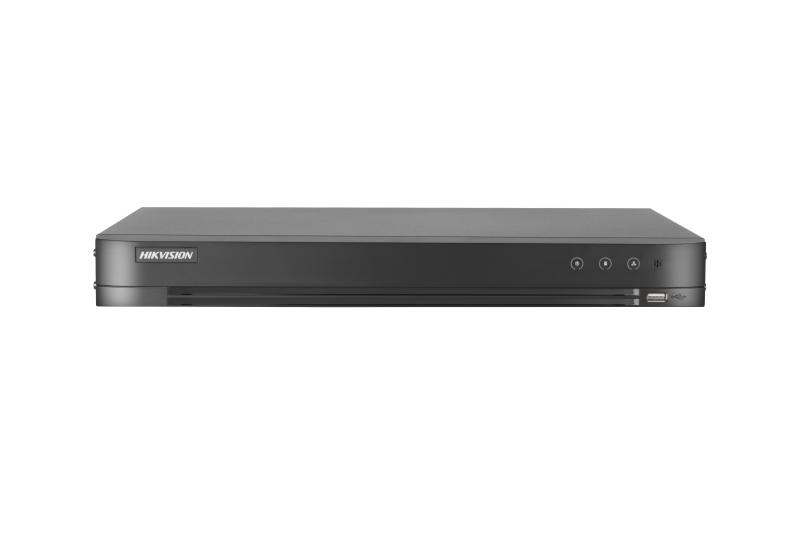

DS-7216HGHI-K2

EOL

16-ch 1080p Lite 1U H.265 DVR

  • 16 channels and 2 HDDs 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p lite @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 18 network cameras can be connected
View Less
View more

Available models:

DS-7216HGHI-K2
DS-7216HGHI-K2(S)
DS-7216HGHI-K2
EOL

Specification

  • Recording
  • Encoding resolutionMain stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
  • Video bit rate32 Kbps to 4 Mbps
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Video and Audio
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback16-ch
  • IP video input2-ch (up to 18-ch);Up to 5 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog video input16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD input1080p25, 1080p30, 720p25, 720p30
  • CVBS outputN/A
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI/VGA simultaneous output
  • Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections128
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial interfaceN/A
  • USB interface2 × USB 2.0
  • Alarm in/outN/A
  • SATA2 SATA interface
  • General
  • Consumption(without HDD)≤ 10 W
  • Working humidity10% to 90%
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
  • Weights (without HDD)≤ 2.0 kg (4.4 lb)

Specification

Specification
Recording
  • Encoding resolutionMain stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
  • Video bit rate32 Kbps to 4 Mbps
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
Video and Audio
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback16-ch
  • IP video input2-ch (up to 18-ch);Up to 5 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog video input16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD input1080p25, 1080p30, 720p25, 720p30
  • CVBS outputN/A
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI/VGA simultaneous output
Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections128
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial interfaceN/A
  • USB interface2 × USB 2.0
  • Alarm in/outN/A
  • SATA2 SATA interface
General
  • Consumption(without HDD)≤ 10 W
  • Working humidity10% to 90%
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
  • Weights (without HDD)≤ 2.0 kg (4.4 lb)
