EOL

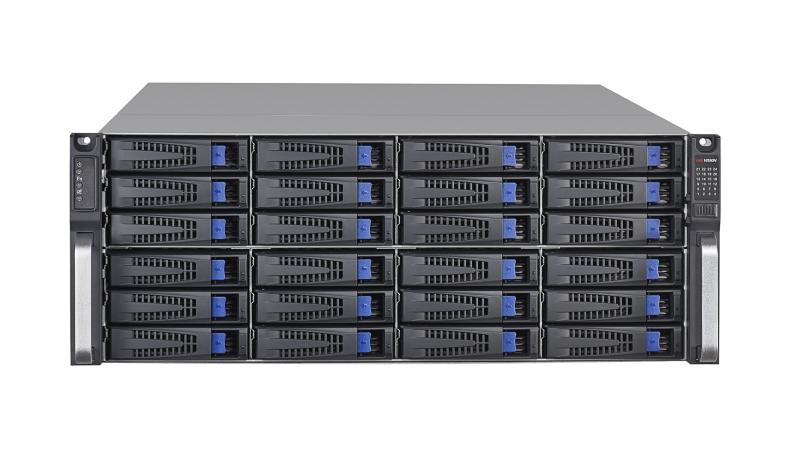

24-slot Cost-efficient Cluster Storage

  • High Reliability Design
  • High Performance Application
  • Cost-efficient System
  • Efficient Maintenance Service
  • High Scalability
  • HDD Detection
  • RAID Optimization
  • Green & Energy-efficient
  • Compatible & Open
  • Software Module
View Less
View more
Sales Inquiry

Available models:

DS-A71024R-CVS
DS-A71024R-CVS
EOL

Specification

  • External interface
  • USB4
  • VGA1
  • Data2, 1000M Ethernet interface,1 of which can be used as IPMI management interface, extendable to 4 × GE or 2 × 10GE
  • Management1, 100M Ethernet interface
  • COM1
  • Storage
  • InterfaceSATA (SSD optional)
  • Hot-pluggingSupported
  • HDD slot24
  • RAIDRAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
  • Capacity1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8TB, 10TB, 12TB
  • Controller
  • Processor64-bit multi-core processor
  • Cache8 GB (extendable to 32 GB)
  • SSD64 GB
  • Software module
  • CVADevice access management, recording schedule, stream forwarding
  • CVSVideo access service, storage space management, data read/write
  • Storage managementStorOS storage system, RAID management, HDD detection and restoration, alarm
  • Performance
  • Video: recording + playback (2Mbps)180-ch + 32-ch
  • General
  • Power supplyRedundant power supply
  • Dimensions (W × D × H)430 × 730 × 180 mm (16.9 × 28.7 × 7.1 inch)
  • Weight (without HDD)≤ 40 kg (88.2 lb)
  • Power Consumption(with HDD)Operating: ≤ 395 W Rated: ≤ 875 W
  • TemperatureOperating: 5 °C to 35 °C (41 °F to 95 °F);Storing: -20 °C to +70 °C (-4 °F to +158 °F)
  • HumidityOperating: 20% to 80% RH (non-condensing/frozen);Storing: 5% to 90% RH (non-condensing/frozen)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

External interface
USB
4
VGA
1
Data
2, 1000M Ethernet interface,1 of which can be used as IPMI management interface, extendable to 4 × GE or 2 × 10GE
Management
1, 100M Ethernet interface
COM
1
Storage
Interface
SATA (SSD optional)
Hot-plugging
Supported
HDD slot
24
RAID
RAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
Capacity
1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8TB, 10TB, 12TB
Controller
Processor
64-bit multi-core processor
Cache
8 GB (extendable to 32 GB)
SSD
64 GB
Software module
CVA
Device access management, recording schedule, stream forwarding
CVS
Video access service, storage space management, data read/write
Storage management
StorOS storage system, RAID management, HDD detection and restoration, alarm
Performance
Video: recording + playback (2Mbps)
180-ch + 32-ch
General
Power supply
Redundant power supply
Dimensions (W × D × H)
430 × 730 × 180 mm (16.9 × 28.7 × 7.1 inch)
Weight (without HDD)
≤ 40 kg (88.2 lb)
Power Consumption(with HDD)
Operating: ≤ 395 W Rated: ≤ 875 W
Temperature
Operating: 5 °C to 35 °C (41 °F to 95 °F);Storing: -20 °C to +70 °C (-4 °F to +158 °F)
Humidity
Operating: 20% to 80% RH (non-condensing/frozen);Storing: 5% to 90% RH (non-condensing/frozen)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
External interface
  • USB4
  • VGA1
  • Data2, 1000M Ethernet interface,1 of which can be used as IPMI management interface, extendable to 4 × GE or 2 × 10GE
  • Management1, 100M Ethernet interface
  • COM1
Storage
  • InterfaceSATA (SSD optional)
  • Hot-pluggingSupported
  • HDD slot24
  • RAIDRAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
  • Capacity1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8TB, 10TB, 12TB
Controller
  • Processor64-bit multi-core processor
  • Cache8 GB (extendable to 32 GB)
  • SSD64 GB
Software module
  • CVADevice access management, recording schedule, stream forwarding
  • CVSVideo access service, storage space management, data read/write
  • Storage managementStorOS storage system, RAID management, HDD detection and restoration, alarm
Performance
  • Video: recording + playback (2Mbps)180-ch + 32-ch
General
  • Power supplyRedundant power supply
  • Dimensions (W × D × H)430 × 730 × 180 mm (16.9 × 28.7 × 7.1 inch)
  • Weight (without HDD)≤ 40 kg (88.2 lb)
  • Power Consumption(with HDD)Operating: ≤ 395 W Rated: ≤ 875 W
  • TemperatureOperating: 5 °C to 35 °C (41 °F to 95 °F);Storing: -20 °C to +70 °C (-4 °F to +158 °F)
  • HumidityOperating: 20% to 80% RH (non-condensing/frozen);Storing: 5% to 90% RH (non-condensing/frozen)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
