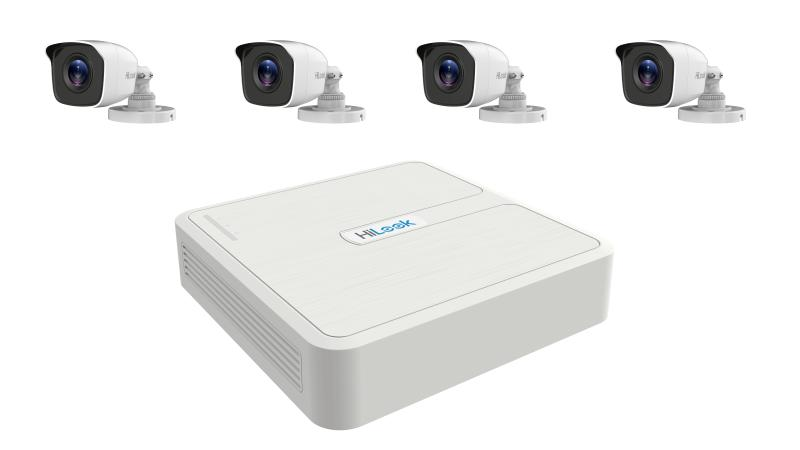

4-ch H.264 1 MP Bullet Kit

One pack contains all for small monitoring scenarios
One 4-channel DVR with compression of 1080p @ 15 fps
Four 2 MP bullet analog cameras
4 video and power cables.

View Less

Data Sheet

Available models:

DS-J142I

TK-4041B-PP

EOL

Specification
Resources
Accessories

Data Sheet

External interface
Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
USB interfaceRear panel: 2 × USB 2.0

Recording
Encoding resolutionWhen 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame rateMain stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N)
Audio compressionG.711u

Video and Audio
Analog video input4-ch BNC interface (1.0 Vp-p, 75 Ω)
Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
VGA/HDMI output1-ch, 1920 × 1080/60 Hz,1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

Auxiliary interface
SATA1 SATA interface
CapacityUp to 6 TB capacity for each disk

Camera
Lens2.8 mm, 3.6 mm, 6 mm 92° (2.8 mm), 70.9° (3.6 mm), 56.7° (6 mm)
Image Sensor1 MP CMOS image sensor

General
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power ConsumptionMax. 4 W
Protection LevelIP66
IR RangeUp to 20 m
Dimensions355 x 223 x 290 mm (14.0 x 8.8 x 11.4 inch)

Video/Audio input
Video inputTurbo HD, AHD, HDCVI, CVBS

External interface

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

USB interface

Rear panel: 2 × USB 2.0

Recording

Encoding resolution

When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

Frame rate

Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N)

Audio compression

G.711u

Video and Audio

Analog video input

4-ch BNC interface (1.0 Vp-p, 75 Ω)

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ)

VGA/HDMI output

1-ch, 1920 × 1080/60 Hz,1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

Auxiliary interface

SATA

1 SATA interface

Capacity

Up to 6 TB capacity for each disk

Camera

Lens

2.8 mm, 3.6 mm, 6 mm 92° (2.8 mm), 70.9° (3.6 mm), 56.7° (6 mm)

Image Sensor

1 MP CMOS image sensor

General

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Power Consumption

Max. 4 W

Protection Level

IP66

IR Range

Up to 20 m

Dimensions

355 x 223 x 290 mm (14.0 x 8.8 x 11.4 inch)

Video/Audio input

Video input

Turbo HD, AHD, HDCVI, CVBS
