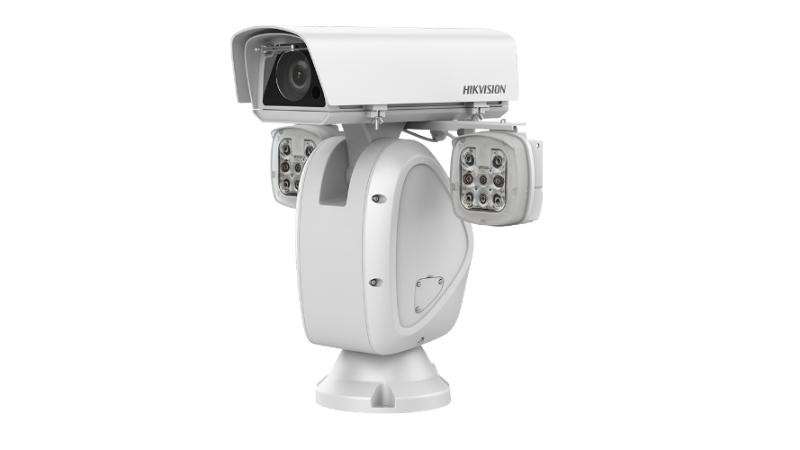

9-inch 2 MP 25X DarkFighterX IR Network Positioning System

Superb low-light performance via DarkFighterX technology
25x optical zoom provides close up views over expansive areas
High quality imaging with 2 MP resolution
Expansive night view with 150 meter laser IR
Water and dust resistant (IP66)

View Less

Data Sheet

Available models:

DS-2DY9225IH-A(C)

DS-2DY9225IH-A

EOL

Specification
Resources
Accessories

Data Sheet

Lens
Zoom SpeedApprox. 4.0 s (optical lens, wide-tele)
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.5 to F3.5
Focal Length4.8 mm to 120 mm, 25× Optical
Field of ViewHorizontal field of view: 58.2-3.2° (wide-tele), Vertical field of view: 32.7-1.8° (wide-tele), Diagonal field of view: 66.8 -3.7° (wide-tele)

Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),,60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
SVCYes

Network
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm LinkageAlarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, and Audio Visual Alarm etc.
Alarm7-ch alarm input/2-ch alarm output
Audio1-ch audio input, 1-ch audio output

Interface
Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
CVBS1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

Compression Standard
H.264+Yes
H.265+Yes
H.264 TypeBaseline Profile/Main Profile/High Profile
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG,
H.265 TypeMain Profile
Video Bitrate32 Kbps to 16384 Kbps
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)

IR
IR Distance200 m
Smart IRYes

Smart Feature
Basic EventMotion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
Smart EventFace Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
Smart RecordANR (Automatic Network Replenishment), Dual-VCA
ROIEight fixed region for each stream

Camera Module
3D DNRYes
Regional ExposureYes
Regional FocusYes
Image SensorTwo 1/2.8" progressive scan CMOS
Min. IlluminationColor: 0.001 Lux @(F1.5, AGC ON), B/W: 0.0001 Lux @(F1.5, AGC ON), 0 lux with IR
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s
Day & NightControlled by dual-sensor
Digital Zoom16×
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
Focus ModeAuto/Semi-automatic/Manual
WDR120 dB
BLCYes
HLCYes
EISYes
DefogYes

PTZ
Movement Range (Pan)360° endless
Pan SpeedConfigurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
Movement Range (Tilt)From -90° to 40°
Tilt SpeedConfigurable, from 0.1°/s to 40°/s, Preset Speed: 40°/s
Proportional ZoomYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemoryYes
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

General
MaterialAluminum alloy, ADC12
DimensionsΦ 256 mm × 334 mm x 505 mm (10.08" × 13.15" × 19.88")
WeightApprox. 17 Kg ( 37.5 lb.)
Protection LevelIP66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power24 VAC ±25%, (max. 120 W
WiperAuto/Manual
Working Environment- 40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
