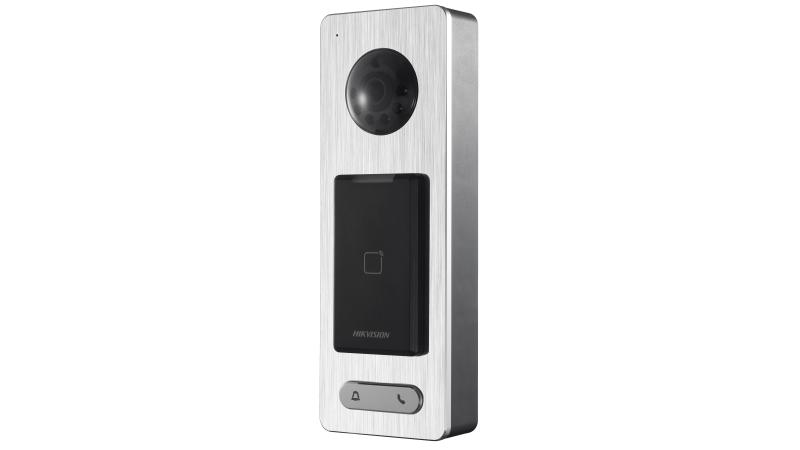

Pro Series Video and Card Terminal

  • Video access control card terminal
  • 2 Mega pixels camera
  • 50,000 card and 200,000 event storage
  • Built-in card reader for Mifare1 card
  • Wiegand interface and RS-485 interface for accessing controller
  • EHome for public network communication
  • Face detection and picture capture function
  • Video intercom function
  • IP65
View Less
View more

Specification

  • Device Interfaces
  • Communication ModeTerminal Mode: TCP/IP and RS-485,Card Reader Mode: Wiegand (26/34) and RS-485,
  • Input InterfaceDoorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
  • Output InterfaceLock Relay × 1, Alarm Output (Doorbell) × 1
  • System Parameters
  • Built-in Micro SD CardMax. 128G
  • Camera2MP/1080P, IR Light
  • Capability50,000 Cards and 200,000 Swiping Card Records
  • Card Reading ModeMifare Card
  • Induction Distance≥ 2cm
  • Processor32 Bit High-performance Processor
  • General
  • Working Temperature-40°C to 70°C (-40°F to 158°F)
  • Working Humidity10% to 90% (No Condensing)
  • Working CurrentMax. 600 mA
  • Power Supply12 VDC/1 A
  • AudioAudio Input: Build-in Micro Phone (Sensitivity: -25±3DB),Audio Output: Build-in Loudspeaker (1W),
  • InstallationWall Mounting
  • Protection LevelIP65
  • Dimension218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")

Specification

Specification
Device Interfaces
  • Communication ModeTerminal Mode: TCP/IP and RS-485,Card Reader Mode: Wiegand (26/34) and RS-485,
  • Input InterfaceDoorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
  • Output InterfaceLock Relay × 1, Alarm Output (Doorbell) × 1
System Parameters
  • Built-in Micro SD CardMax. 128G
  • Camera2MP/1080P, IR Light
  • Capability50,000 Cards and 200,000 Swiping Card Records
  • Card Reading ModeMifare Card
  • Induction Distance≥ 2cm
  • Processor32 Bit High-performance Processor
General
  • Working Temperature-40°C to 70°C (-40°F to 158°F)
  • Working Humidity10% to 90% (No Condensing)
  • Working CurrentMax. 600 mA
  • Power Supply12 VDC/1 A
  • AudioAudio Input: Build-in Micro Phone (Sensitivity: -25±3DB),Audio Output: Build-in Loudspeaker (1W),
  • InstallationWall Mounting
  • Protection LevelIP65
  • Dimension218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")
