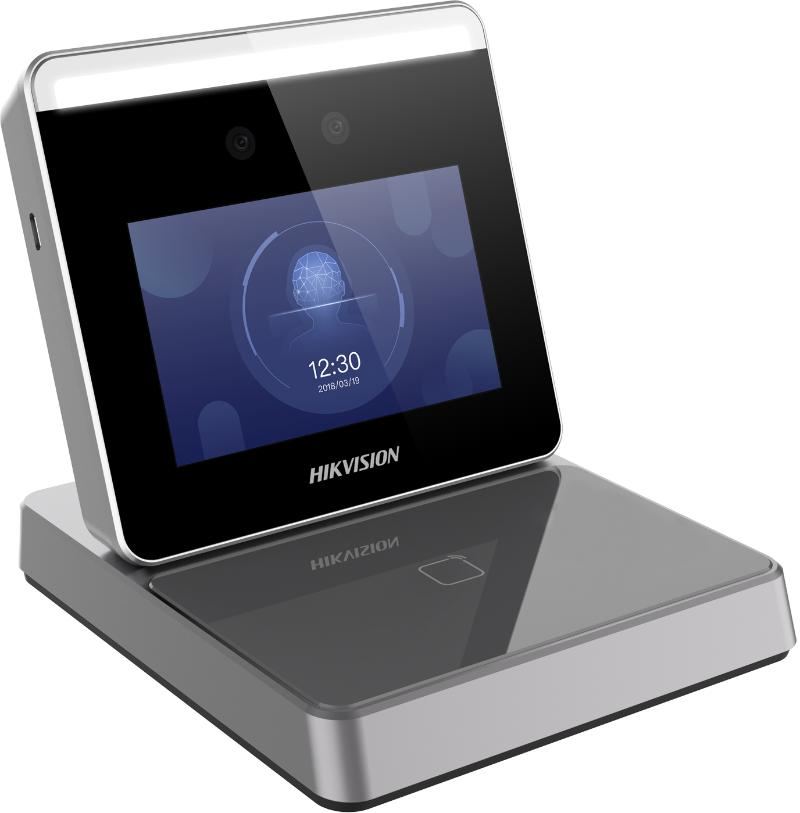

DS-K1F600U-D6E

Enrollment Station

  • 3.97-inch LCD touch screen for face enrollment, parameters configuration, live view, etc.
  • 2 MP wide-angle dual-lens
  • Face anti-spoofing, Face enrollment distance: 0.3 m to 1.5 m
  • Deep learning algorithm
  • 2,000 user capacity, 2,000 face capacity, and 20,000 card capacity
  • Enrolls data via the device and transmits the data from the device to the platform via TCP/IP/Type C USB interface; Enrolls data remotely via the client software
  • Stand-alone operation: Manage, search and set device data after logging in the device locally
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1F600U-D6E
DS-K1F600U-D6E
Data Sheet

Specification

  • System
  • Operating systemLinux
  • Display
  • Screen size3.97-inch
  • Operation methodTouch
  • TypeCapacitive
  • Resolution800 × 480
  • Video
  • Lens2
  • Resolution2 MP
  • WDRSupport
  • Network
  • Wired networkTCP/IP
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
  • Interface
  • USBSupports 1 USB interface and 1 Type C USB interface (Type C USB interface is used for communicating with the platform.)
  • Capacity
  • User capacity2000
  • Face capacity2000
  • Card capacity20,000 (The displayed capacity on the device screen varies according to the configured enrollment rules)
  • Event capacity2000 offline enrollment records
  • Authentication
  • Face recognition distance0.3 m to 1.5 m
  • Card typeEM card;M1 card;DESfire card;Felica card
  • Card reading frequency13.56MHz, 125KHz
  • Card reading distance0 to 5 cm
  • General
  • Power supply12 VDC, 15 W, Round
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10％ to 90％
  • Dimensions121.6 mm × 137.9 mm × 125 mm (4.8" × 5.4" × 4.9")
  • InstallationBase mounting
  • Application environmentIndoor
  • Function
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Operating system
Linux
Display
Screen size
3.97-inch
Operation method
Touch
Type
Capacitive
Resolution
800 × 480
Video
Lens
2
Resolution
2 MP
WDR
Support
Network
Wired network
TCP/IP
Wi-Fi
Support, 2.4 G, 802.11b/g/n
Interface
USB
Supports 1 USB interface and 1 Type C USB interface (Type C USB interface is used for communicating with the platform.)
Capacity
User capacity
2000
Face capacity
2000
Card capacity
20,000 (The displayed capacity on the device screen varies according to the configured enrollment rules)
Event capacity
2000 offline enrollment records
Authentication
Face recognition distance
0.3 m to 1.5 m
Card type
EM card;M1 card;DESfire card;Felica card
Card reading frequency
13.56MHz, 125KHz
Card reading distance
0 to 5 cm
General
Power supply
12 VDC, 15 W, Round
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10％ to 90％
Dimensions
121.6 mm × 137.9 mm × 125 mm (4.8" × 5.4" × 4.9")
Installation
Base mounting
Application environment
Indoor
Function
Face anti-spoofing
Support
Audio prompt
Support
Time synchronization
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • Operating systemLinux
Display
  • Screen size3.97-inch
  • Operation methodTouch
  • TypeCapacitive
  • Resolution800 × 480
Video
  • Lens2
  • Resolution2 MP
  • WDRSupport
Network
  • Wired networkTCP/IP
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
Interface
  • USBSupports 1 USB interface and 1 Type C USB interface (Type C USB interface is used for communicating with the platform.)
Capacity
  • User capacity2000
  • Face capacity2000
  • Card capacity20,000 (The displayed capacity on the device screen varies according to the configured enrollment rules)
  • Event capacity2000 offline enrollment records
Authentication
  • Face recognition distance0.3 m to 1.5 m
  • Card typeEM card;M1 card;DESfire card;Felica card
  • Card reading frequency13.56MHz, 125KHz
  • Card reading distance0 to 5 cm
General
  • Power supply12 VDC, 15 W, Round
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10％ to 90％
  • Dimensions121.6 mm × 137.9 mm × 125 mm (4.8" × 5.4" × 4.9")
  • InstallationBase mounting
  • Application environmentIndoor
Function
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.0.6_240524
Firmware_V1.0.2_211209
