Homepage
*Images are for illustrative purposes. Actual product appearance and specifications may vary.

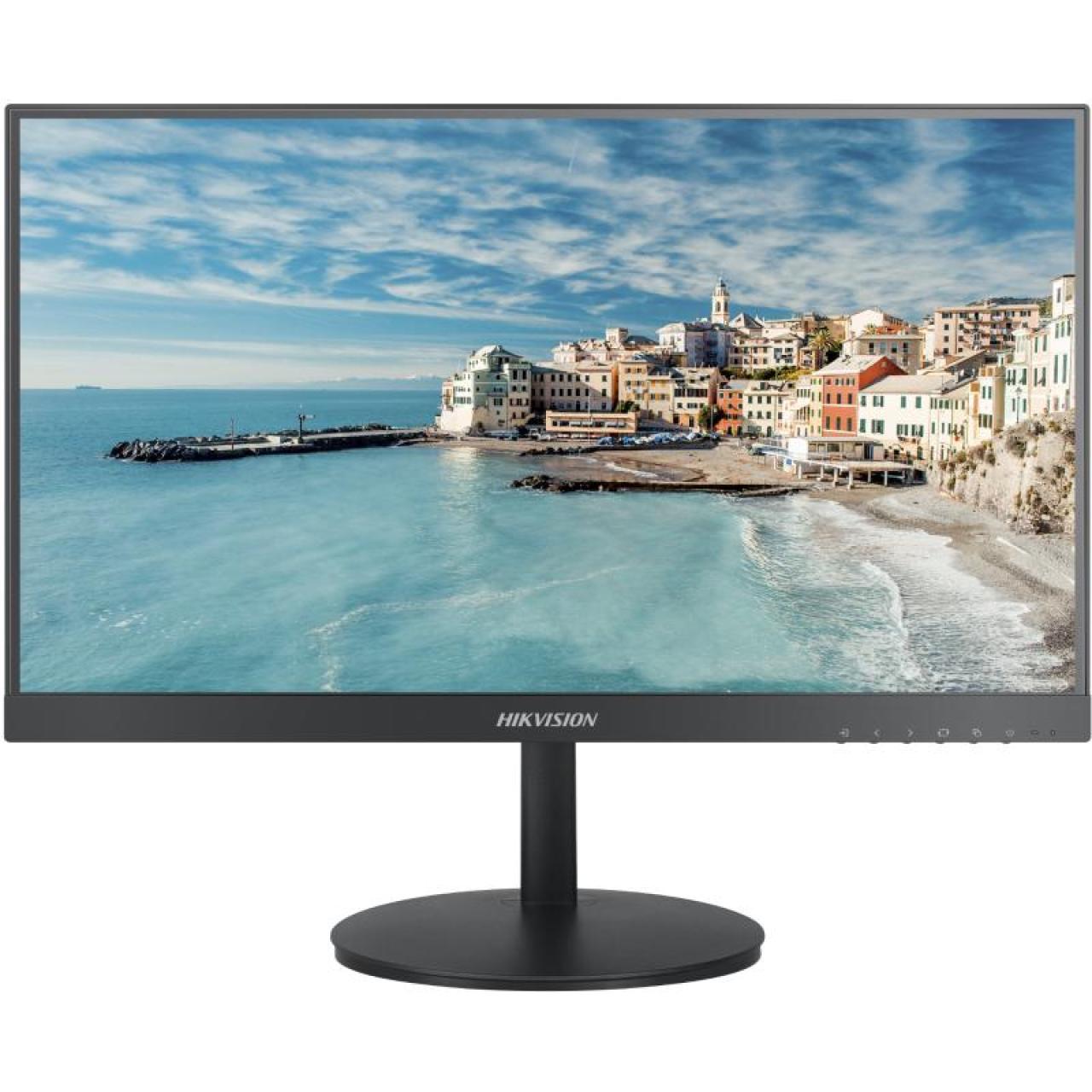

DS-D5022FN-C(B)

  • Ultradunne body met ultradunne rand voor 3 zijden.
  • 2 kanalen met 16 miljoen kleuren LVDS HD (1920 × 1080) display.
  • 178° ultrabreed weergavescherm.
  • 3D-ruisonderdrukking.
  • Ontwerp met weinig blauw licht voor oogverzorging.
  • Dubbele interface van HDMI en VGA.
  • Ondersteunt VESA wandmontage.
View Less
View more
Verkoopaanvraag
DS-D5022FN-C(B)

Specification

  • Display
  • Scherm grootte21.5 inch
  • Active Display Area478.656 (H) mm × 260.28 (V) mm
  • Resolutie1920 × 1080
  • BacklightLED
  • Pixel Pitch0.0831 (H) mm × 0.241 (V) mm
  • Helderheid250 cd/m²
  • Viewing Angle178°(H)/178°(V)
  • Color Depth8 bit/16 Million
  • Contrast Ratio3000:1
  • Response Time6.5 ms
  • Refresh Rate60 Hz
  • Haze25%
  • Reliability7 × 16 h
  • Color Gamut72% NTSC
  • Interface
  • Video & Audio InputHDMI 1.4 × 1, VGA × 1
  • Power
  • Stroomvoorziening 100 to 240 VAC, 50/60 Hz
  • Power Consumption≤ 22 W
  • Standby Consumption≤ 0.5 W
  • Working Environment
  • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity20% to 90% RH (without condensation)
  • Storage Temperature–20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)
  • Storage Humidity10% to 90% RH (without condensation)
  • General
  • Casing MaterialPlastic
  • VESA75 mm × 75mm，4-M6 × 6 screw holes
  • Bezel WidthTop: 1.88 mm, bottom: 19 mm, left: 1.88 mm, right: 1.88 mm
  • Product Dimensions (W × H × D)With base: 492.356 (W) mm × 390.11 (H) mm × 200.20 (D) mm (19.38'' ×15.36'' × 7.88'') Without base: 492.356 (W) mm × 289.680 (H) mm × 43.88 (D) mm (19.38'' × 11.40'' × 1.73'')
  • Package Dimensions (W × H × D)647 (W) mm × 111 (H) mm × 406 (D) mm (25.49 '' × 4.37 '' × 15.99 '')
  • Net Weight2.6 ± 0.5 kg (5.7 ± 1.1 lb.)
  • Gross Weight4.0 ± 0.5 kg (8.8 ± 1.1 lb.)
  • Packing ListMonitor ×1, AC power cable × 1, base bracket × 1, user manual × 1, quick start guide × 1, HDMI cable × 1
  • Remarks*The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Scherm grootte
21.5 inch
Active Display Area
478.656 (H) mm × 260.28 (V) mm
Resolutie
1920 × 1080
Backlight
LED
Pixel Pitch
0.0831 (H) mm × 0.241 (V) mm
Helderheid
250 cd/m²
Viewing Angle
178°(H)/178°(V)
Color Depth
8 bit/16 Million
Contrast Ratio
3000:1
Response Time
6.5 ms
Refresh Rate
60 Hz
Haze
25%
Reliability
7 × 16 h
Color Gamut
72% NTSC
Interface
Video & Audio Input
HDMI 1.4 × 1, VGA × 1
Power
Stroomvoorziening
100 to 240 VAC, 50/60 Hz
Power Consumption
≤ 22 W
Standby Consumption
≤ 0.5 W
Working Environment
Working Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity
20% to 90% RH (without condensation)
Storage Temperature
–20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)
Storage Humidity
10% to 90% RH (without condensation)
General
Casing Material
Plastic
VESA
75 mm × 75mm，4-M6 × 6 screw holes
Bezel Width
Top: 1.88 mm, bottom: 19 mm, left: 1.88 mm, right: 1.88 mm
Product Dimensions (W × H × D)
With base: 492.356 (W) mm × 390.11 (H) mm × 200.20 (D) mm (19.38'' ×15.36'' × 7.88'') Without base: 492.356 (W) mm × 289.680 (H) mm × 43.88 (D) mm (19.38'' × 11.40'' × 1.73'')
Package Dimensions (W × H × D)
647 (W) mm × 111 (H) mm × 406 (D) mm (25.49 '' × 4.37 '' × 15.99 '')
Net Weight
2.6 ± 0.5 kg (5.7 ± 1.1 lb.)
Gross Weight
4.0 ± 0.5 kg (8.8 ± 1.1 lb.)
Packing List
Monitor ×1, AC power cable × 1, base bracket × 1, user manual × 1, quick start guide × 1, HDMI cable × 1
Remarks
*The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
