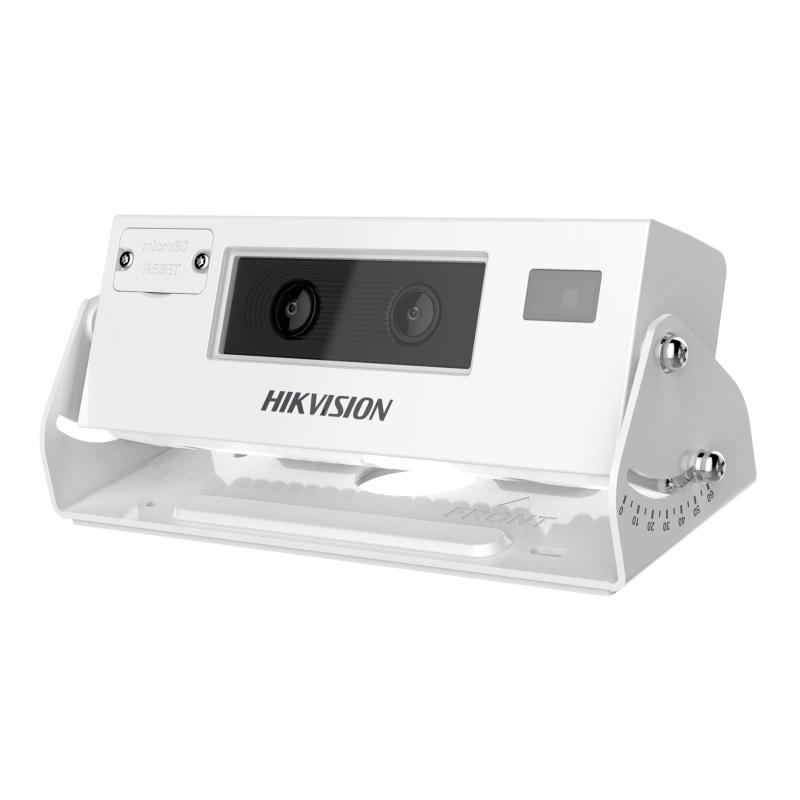

Binocular People Couting Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 105 dB WDR technology
  • Water and dust resistant (IP66) and vandal resistant(IK08)

View Less
View more
Sales Inquiry

Available models:

DS-2XM6825G1/C-IMS(2mm)
DS-2XM6825G1/C-IS(2mm)
DS-2XM6825G1/C-IV(S)(M)(/ND)

Specification

  • Camera
  • Image Sensor1/2.8ʺ Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F2.25, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F2.25, AGC ON)
  • Resolution1920 × 1080
  • Shutter Speed1/3 s to 1/100, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0°，Tilt: 0° to 25°，Zoom: 0° (Noted： Ceiling installation angle is :Pan: 0°，Tilt: 0° to 60°，Zoom: 0°)
  • Lens
  • FOVHorizontal FOV:108°, Vertical FOV: 74°, Diagonal FOV:115°
  • Focal Length2mm
  • Lens MountM12
  • Max. ApertureF2.25
  • Illuminator
  • IR Wavelength850 nm
  • IR RangeUp to 3 m IR range
  • Video
  • H.264+Main stream, Sub-stream, Third stream
  • H.265+Main stream, Sub-stream, Third stream
  • Main Stream50Hz: 25fps (1920 ×1080, 1440 × 900); 60Hz: 30fps (1920 ×1080, 1440 × 900)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 576, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080) 60Hz: 30fps (1920 × 1080)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265+/H.265/H.264/ H.264+/MJPEG Third stream：H.265+/H.265/H.264+/H.264
  • Video Bit RateMain stream: 512Kbps to 16Mbps Sub stream: 256Kbps to 4Mbps Third stream：256Kbps to 4Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 16 channels(Main Stream and Sub Stream each 8 channels)
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • User ManagementUp to 16 users of 3 levels of user authority: administrator, operator and common user
  • Web BrowserIE8+, Chrome41+, Edge16+, Firefox30+
  • Image
  • Picture OverlaySupport overlay of a 24 bit BMP picture of 128×128; support the picture uploading, enable the overlay, and set the coordinate of the picture.
  • DNRSupport
  • Image SettingsBrightness, contrast, saturation, white balance and sharpness can be adjusted via browser and client
  • Day/Night SwitchDay, Night, Auto, Scheduled, Triggered by alarm
  • Image EnhancementBLC, HLC, 2DNR ,3DNR
  • Interface
  • Alarm 2 channels of alarm input, 2 channels of alarm output
  • RS-4851 channels of RS-485
  • Interface TypeBuilt-in
  • TF Card StorageBuilt-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)
  • Deep Learning Function
  • People CountingSupport counting people entering and exiting separately; Support real-time and scheduled uploading of the statistics; Support filtering target by height.
  • Event
  • Basic Event Video tampering, exception (disk full, disk error, illegal login)
  • Linkage MethodUpload to FTP, notify monitoring center, send email, alarm output
  • General
  • Product Dimension230 mm × 100 mm × 50 mm (9.1" × 3.9" × 2.0")
  • Package Dimension280 mm × 135 mm × 135 mm(11" × 5.3" × 5.3")
  • Product WeightApprox. 640 g (Approx. 1.4 lb.)
  • With Package WeightApprox. 960 g（Approx. 2.1 lb.）
  • PowerPoE: 0.24 A to 0.15 A, max: 8.5W DC: 0.95A to 0.24A, max 8.5W
  • Power SupplyIMS: DC 9 V to 36 V, PoE (802.3af, , 36 V to 57 V) IS: DC 9 V to 36 V, PoE (802.3af, , 36 V to 57 V)
  • Camera MaterialMetal
  • Power InterfaceIMS: Molex, M12-4F/S, 2 alarm channels, 485 IS: RJ45-F, DC-J, 2 alarm channels, 485
  • Startup and Operating Conditions-30°C to 75° C (-22°F to 167°F). Humidity 95% or less (non-condensing)
  • General FunctionReset, anti-flicker, heart beat, water mark, password protection, IP address filter
  • LanguageEnglish, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
  • Cable LengthIMS: 4-core aviation plug, 300 mm IS: RJ45, 360mm
  • Approval
  • EMCCE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013） RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 IC: ICES-003 Issue 7:2020 KC: KN32:2015,KN35:2015
  • SafetyCB: IEC 60950-1 CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013) LOA: SANS IEC60950-1 BIS: IS 13252(Part 1)2010+A1:2013+A2:2015
  • EnvironmentCE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
  • Electrical Safety ProtectionIP66: IEC 60529-2013IK08: IEC 62262:2002
  • Automotive and RailwayEN50155: EN 50155-2007,EN 50155-2017 EN45545: (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8ʺ Progressive Scan CMOS
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F2.25, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F2.25, AGC ON)
Resolution
1920 × 1080
Shutter Speed
1/3 s to 1/100, 000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0°，Tilt: 0° to 25°，Zoom: 0° (Noted： Ceiling installation angle is :Pan: 0°，Tilt: 0° to 60°，Zoom: 0°)
Lens
FOV
Horizontal FOV:108°, Vertical FOV: 74°, Diagonal FOV:115°
Focal Length
2mm
Lens Mount
M12
Max. Aperture
F2.25
Illuminator
IR Wavelength
850 nm
IR Range
Up to 3 m IR range
Video
H.264+
Main stream, Sub-stream, Third stream
H.265+
Main stream, Sub-stream, Third stream
Main Stream
50Hz: 25fps (1920 ×1080, 1440 × 900); 60Hz: 30fps (1920 ×1080, 1440 × 900)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 576, 640 × 480)
Third Stream
50Hz: 25fps (1920 × 1080) 60Hz: 30fps (1920 × 1080)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265+/H.265/H.264/ H.264+/MJPEG Third stream：H.265+/H.265/H.264+/H.264
Video Bit Rate
Main stream: 512Kbps to 16Mbps Sub stream: 256Kbps to 4Mbps Third stream：256Kbps to 4Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Region Of Interest (ROI)
Support 2 fixed region for (main/sub) stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
Simultaneous Live View
Up to 16 channels(Main Stream and Sub Stream each 8 channels)
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
User Management
Up to 16 users of 3 levels of user authority: administrator, operator and common user
Web Browser
IE8+, Chrome41+, Edge16+, Firefox30+
Picture Overlay
Support overlay of a 24 bit BMP picture of 128×128; support the picture uploading, enable the overlay, and set the coordinate of the picture.
DNR
Support
Image Settings
Brightness, contrast, saturation, white balance and sharpness can be adjusted via browser and client
Day/Night Switch
Day, Night, Auto, Scheduled, Triggered by alarm
Image Enhancement
BLC, HLC, 2DNR ,3DNR
Interface
Alarm
2 channels of alarm input, 2 channels of alarm output
RS-485
1 channels of RS-485
Interface Type
Built-in
TF Card Storage
Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)
Deep Learning Function
People Counting
Support counting people entering and exiting separately; Support real-time and scheduled uploading of the statistics; Support filtering target by height.
Event
Basic Event
Video tampering, exception (disk full, disk error, illegal login)
Linkage Method
Upload to FTP, notify monitoring center, send email, alarm output
General
Product Dimension
230 mm × 100 mm × 50 mm (9.1" × 3.9" × 2.0")
Package Dimension
280 mm × 135 mm × 135 mm(11" × 5.3" × 5.3")
Product Weight
Approx. 640 g (Approx. 1.4 lb.)
With Package Weight
Approx. 960 g（Approx. 2.1 lb.）
Power
PoE: 0.24 A to 0.15 A, max: 8.5W DC: 0.95A to 0.24A, max 8.5W
Power Supply
IMS: DC 9 V to 36 V, PoE (802.3af, , 36 V to 57 V) IS: DC 9 V to 36 V, PoE (802.3af, , 36 V to 57 V)
Camera Material
Metal
Power Interface
IMS: Molex, M12-4F/S, 2 alarm channels, 485 IS: RJ45-F, DC-J, 2 alarm channels, 485
Startup and Operating Conditions
-30°C to 75° C (-22°F to 167°F). Humidity 95% or less (non-condensing)
General Function
Reset, anti-flicker, heart beat, water mark, password protection, IP address filter
Language
English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
Cable Length
IMS: 4-core aviation plug, 300 mm IS: RJ45, 360mm
Approval
EMC
CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013） RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 IC: ICES-003 Issue 7:2020 KC: KN32:2015,KN35:2015
Safety
CB: IEC 60950-1 CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013) LOA: SANS IEC60950-1 BIS: IS 13252(Part 1)2010+A1:2013+A2:2015
Environment
CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
Electrical Safety Protection
IP66: IEC 60529-2013IK08: IEC 62262:2002
Automotive and Railway
EN50155: EN 50155-2007,EN 50155-2017 EN45545: (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
