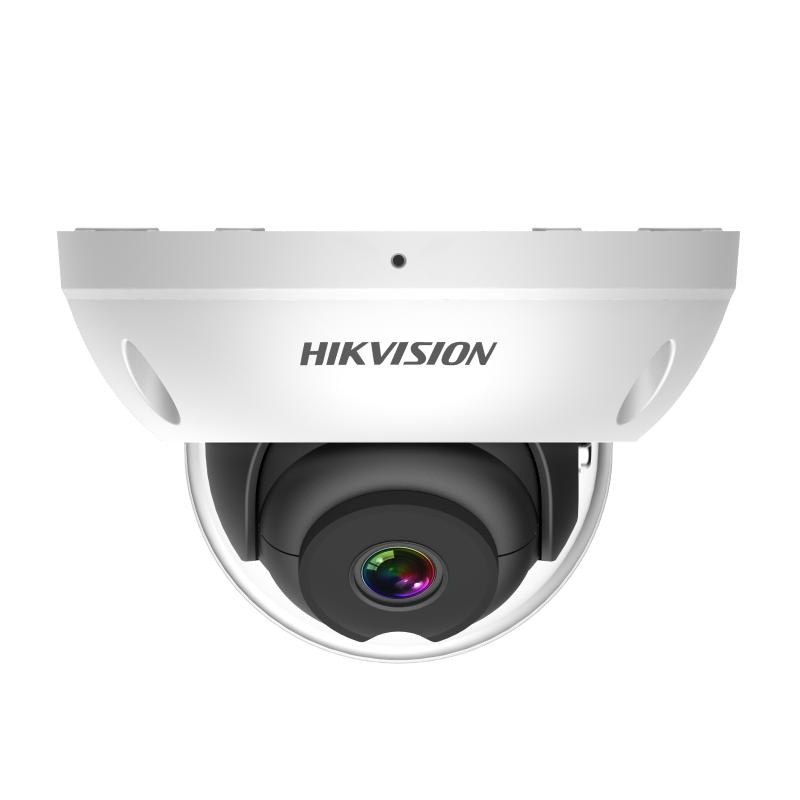

Mobile mini dome

High quality imaging with 2 MP resolution
Water and dust resistant (IP66) and vandal proof (IK08)

View Less

Data Sheet

Available models:

AE-VC215I-ISF(M12)(2.8mm)

AE-VC215I-ISF(M12)(4mm)(0-STD)

AE-VC215I-ISF(RJ45/ND)(2mm)

AE-VC215I-ISF(RJ45/ND)(2.8mm)

AE-VC215I-ISF(RJ45/ND)(4mm)

AE-VC215I-ISF

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/2.8''CMOS Progressive Scan
Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Resolution1920 × 1080
Shutter Speed1/3 s to 1/100, 000 s
Day & NightElectronic Day to Night
Angle AdjustmentPan: -50°~+50° Tilt: 0~60°

Lens
Focal Length2mm/2.8mm/4mm
Focal Length & FOV2mm:Horizontal FOV:132°, Vertical FOV:77°, Diagonal FOV:152° 2.8mm:Horizontal FOV:105°, Vertical FOV:56°, Diagonal FOV:126° 4mm:Horizontal FOV:87°, Vertical FOV:44°, Diagonal FOV:104°
Lens MountM12
FocusManual
Max. Aperture2mm:F2.25 2.8/4mm: F1.6

Illuminator
Supplement Light TypeInfrared
IR Wavelength850 nm
IR Range3 m

Video
Compression TypeH.264 (Main Stream, Sub Stream) H.265 (Main Stream, Sub Stream) MJPEG (only Sub Stream)
Main Stream50Hz:25fps(1920x1080, 1280 x 960, 1280x720) 60Hz:30fps(1920x1080, 1280 x 960, 1280x720)
Sub-Stream50Hz:25fps(704x576, 640x480, 352x288, 320x240) 60Hz:30fps(704x576, 640x480, 352x288, 320x240)
Video Compression Main Stream:H.264, H.265 Sub Stream:H.264, H.265, MJPEG
Video Bit Rate256Kbps-6Mbps
H.264 TypeBaseLine profile/Main Profile
H.265 TypeMain Profile
Bit Rate ControlCBR, VBR
Stream TypeMain Stream, Sub Stream
Region Of Interest (ROI)Support 1 fixed region for each stream（Main Stream, Sub Stream ）
Frame RateP(50Hz): 25fps N(60Hz): 30fps Default 25fps

Audio
Audio Compression G711U, G711A, G726_A, AAC, G722_1, PCM
Audio Bit RateRaw data PCM:256kbps G711U, G711A, G726_A, AAC,G722.1:≤64kbps
Audio Sampling Rate16kHz

Network
ProtocolsTCP/IP, onvif, http, https, DHCP, RTSP, QOS
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S/G/T), ISAPI, DNS, TCP/IP, UDP, ICMP, NTP
User ManagementUp to 16 users of 3 levels of user authority: administrator, operator and common user
Web BrowserIE8+, Chrome57+, Edge16+, Firefox 52+

Image SettingsBrightness, contrast, saturation and sharpness can be adjusted via browser and client program
Day/Night SwitchDay, Night, Auto, Scheduled
Wide Dynamic Range (WDR)105 dB
SNR＞50 dB
Image Enhancement2DNR ,3DNR
Backlight Compensation(BLC)Support BLC adjustment of up, down, left, right, center area and customized BLC.
OthersSupport customizing 3 lines OSD

Interface
Ethernet InterfaceM12:M12-D code Aviation plug RJ45:10 M/100 M self-adaptive Ethernet port
AudioBuilt-in MIC
Reset KeyBuilt-in Reset
TF Card StorageBuilt-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)

Event
Linkage MethodNotify Monitoring Center
Basic Event Disk full

General
Product DimensionΦ97 mm × 62 mm (Φ3.8" × 2.4")
PowerRJ45: 0.139-0.088A, Max. 5W M12: 0.139-0.088A, Max. 5W
ProtectionIP66, IK08
Power SupplyRJ45: PoE (802.3af, 36~57V) M12: PoE (802.3af, 36~57V)
Camera MaterialFront Cover: plastic Base: metal
Screw MaterialSUS, Carbon steel coating
Package Dimension111 mm × 111 mm × 95 mm (4.4″ × 4.4″ × 3.7″)
Product WeightRJ45: Approx. 260 g (0.57 lb.) M12: Approx. 255 g (0.56 lb.)
Startup and Operating Conditions-30°C to +60°C (-22°F to +140°F). Humidity 95% or less (non-condensing)
LanguageEnglish
General FunctionAnti-flicker, heart beat, mirror, password protection
Power InterfaceRJ45: PoE power supply M12: 4-core aviation plug
Cable Length50 cm

Approval
EMCCE-EMC(EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)
SafetyCE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);BIS
EnvironmentCE-RoHS(2011/65/EU)
Electrical Safety ProtectionIP66(IEC 60529-2013);IK08(IEC 62262:2002)
