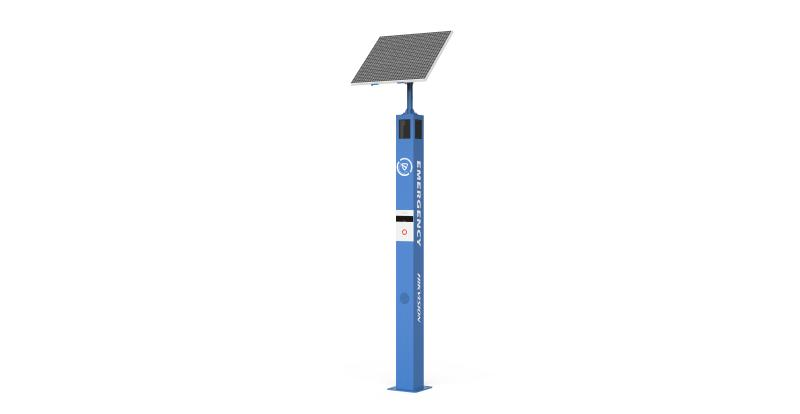

Solar Panic Alarm Station

  • Solar panel and 4G wireless solution for easy deployment
  • One-touch emergency calling
  • Quantity audio tech and embedded 2M HD camera for high efficiency 2-way communication
  • Real-time security via sound and voice detection
  • Supports remote broadcasting
  • Built-in SD slot supports MicroSD / SDHC / SDXC up to 256 GB
  • Supports siren and audio expansion
  • Supports standard SIP and ISUP5.0 for VMS compatibility
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PEA301-CVS1-EA
DS-PEA301-CVS1-EA
Data Sheet

Specification

  • Software features
  • Tamper-ProofTamper Alarm
  • ProtocolISUP5.0, STD_SIP, TCP/IP, RTSP
  • Hardware features
  • Alarm input1
  • Alarm output1
  • SirenSound Can be Configured Separately
  • Lamp1 Red and Blue Alarm Lamp, Light Can be Configured Separately
  • Netowrk interface1xRJ45,10 M/100 M self adaptive(Internal use only) 4G
  • Audio interface1-ch Built-in Omnidirectional Microphone
  • SD CardStandard Micro SD card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 256G
  • LoudspeakerSound Can be Configured Separately
  • Video
  • Video compression standardH.264;H.265
  • Frame rate25fps
  • Field AngleDiagonal: 135°
  • Day/night switch modeIR Cut Filter
  • Audio
  • Audio input1-ch Built-in Omnidirectional Microphone, Pickup Distance: 1 m
  • Audio output1-ch 15 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output
  • Audio encoding/decoding standardG.711U
  • Audio qualitySmart Noise Suppression;AEC
  • Audio compression code rate64Kbps
  • Electrical characteristics
  • Power supplyDC12V
  • Power Consumption1. Sleep mode: ≤ 40mW 2. Low consumption mode: ≤ 2W 3. Full consumption mode: ≤ 35W
  • Wireless transmission
  • Wired network10 M/100 M Self-adaptive Ethernet port
  • General
  • Operation temperature-20° ~ +60°
  • Operation humidity10％-90％
  • Dimension(WxHxD)350x350x2440(without solar panel) 760x490x3160(solar panel installed with 45° horizontal angel)
  • IP RateIP65
  • Installation methodGround Mounting
  • Device management
  • Camera2 MP HD IR Camera
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Software features
Tamper-Proof
Tamper Alarm
Protocol
ISUP5.0, STD_SIP, TCP/IP, RTSP
Hardware features
Alarm input
1
Alarm output
1
Siren
Sound Can be Configured Separately
Lamp
1 Red and Blue Alarm Lamp, Light Can be Configured Separately
Netowrk interface
1xRJ45,10 M/100 M self adaptive(Internal use only) 4G
Audio interface
1-ch Built-in Omnidirectional Microphone
SD Card
Standard Micro SD card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 256G
Loudspeaker
Sound Can be Configured Separately
Video
Video compression standard
H.264;H.265
Frame rate
25fps
Field Angle
Diagonal: 135°
Day/night switch mode
IR Cut Filter
Audio
Audio input
1-ch Built-in Omnidirectional Microphone, Pickup Distance: 1 m
Audio output
1-ch 15 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output
Audio encoding/decoding standard
G.711U
Audio quality
Smart Noise Suppression;AEC
Audio compression code rate
64Kbps
Electrical characteristics
Power supply
DC12V
Power Consumption
1. Sleep mode: ≤ 40mW 2. Low consumption mode: ≤ 2W 3. Full consumption mode: ≤ 35W
Wireless transmission
Wired network
10 M/100 M Self-adaptive Ethernet port
General
Operation temperature
-20° ~ +60°
Operation humidity
10％-90％
Dimension(WxHxD)
350x350x2440(without solar panel) 760x490x3160(solar panel installed with 45° horizontal angel)
IP Rate
IP65
Installation method
Ground Mounting
Device management
Camera
2 MP HD IR Camera
