EOL

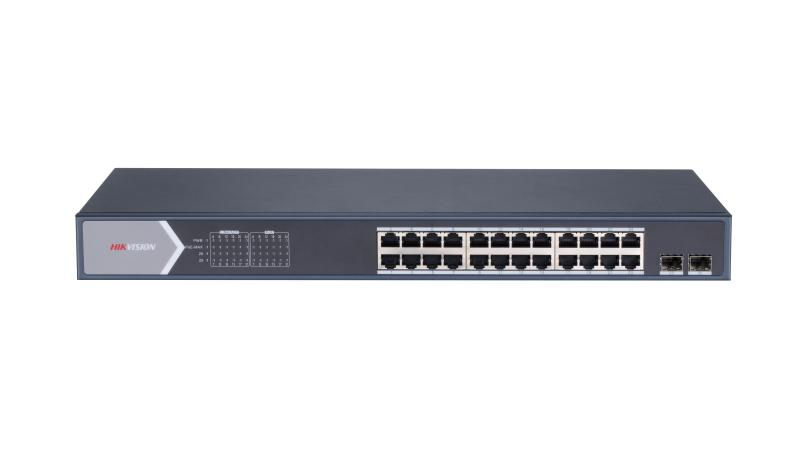

24 Port Gigabit Web POE Switch

  • 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports
  • IEEE 802.3at/af standard for PoE ports
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
  • 6 KV surge protection for PoE ports
  • AF/AT camera can reach up to 300 m in extend mode
  • PoE watchdog to auto detect and restart the cameras that do not respond
  • PoE output power management
  • Gigabit network access design
  • Wire-speed forwarding
  • Store-and-forward switching
  • Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on
  • Port management
  • Web management
  • Solid high-strength metal shell
View Less
View more

Available models:

DS-3E1526P-E

Specification

  • General
  • ShellMetal material
  • Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Relative humidity5% to 95% (no condensation)
  • Power supply100 to 240 VAC, 50/60 Hz, Max. 6.5 A
  • Net weight2.975 kg (6.56 lb)
  • Gross weight3.535 kg (7.79 lb)
  • Dimension (L × H × D)440 mm × 221 mm × 44 mm (17.32” × 8.70” × 1.73”)
  • Operating humidity5% to 95% (no condensation)
  • Power source400 W
  • Power consumption in idle30 W
  • Max. power consumption400 W
  • Network parameters
  • Port number24 × gigabit PoE ports, and 2 × gigabit fiber optical ports
  • Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Forwarding modeStore-and-forward switching
  • Working modeStandard mode (default); Extend mode
  • MAC address table8 K
  • Switching capacity52 Gbps
  • Packet forwarding rate36.688 Mpps
  • Internal cache4.1 Mbits
  • PoE power supply
  • PoE standardIEEE 802.3af, IEEE 802.3at
  • PoE power pinEthernet cables 1/2/3/6 provide power supply.
  • PoE portPorts 1 to 24
  • Max. port power30 W
  • PoE power budget370 W
  • Software Function
  • Device maintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync.
  • Port configurationSupport the configuration of port rate and slow control, and portsenabling .
  • Long rangeSupport up to 300 m transmission.
  • PoE watchdogPorts 1 to 24: auto detect and restart the cameras that do not respond.
  • Port rate-limitingSupport rate-limiting for ingress and egress ports.
  • Storm controlSupport the storm control of unknown unicast, multicast and broadcast.
  • Port mirroringSupport port mirroring function.
  • QoSSupport WRR and SP scheduling and port priority.
  • VLANSupport 128 VLANs.
  • STPSupport STP and RSTP.
  • SNMPSupport SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition.
  • PoESupport IEEE 802.3at/af power supply.
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Shell
Metal material
Operating temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Relative humidity
5% to 95% (no condensation)
Power supply
100 to 240 VAC, 50/60 Hz, Max. 6.5 A
Net weight
2.975 kg (6.56 lb)
Gross weight
3.535 kg (7.79 lb)
Dimension (L × H × D)
440 mm × 221 mm × 44 mm (17.32” × 8.70” × 1.73”)
Operating humidity
5% to 95% (no condensation)
Power source
400 W
Power consumption in idle
30 W
Max. power consumption
400 W
Network parameters
Port number
24 × gigabit PoE ports, and 2 × gigabit fiber optical ports
Port type
RJ45 port, full duplex, MDI/MDI-X adaptive
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding mode
Store-and-forward switching
Working mode
Standard mode (default); Extend mode
MAC address table
8 K
Switching capacity
52 Gbps
Packet forwarding rate
36.688 Mpps
Internal cache
4.1 Mbits
PoE power supply
PoE standard
IEEE 802.3af, IEEE 802.3at
PoE power pin
Ethernet cables 1/2/3/6 provide power supply.
PoE port
Ports 1 to 24
Max. port power
30 W
PoE power budget
370 W
Software Function
