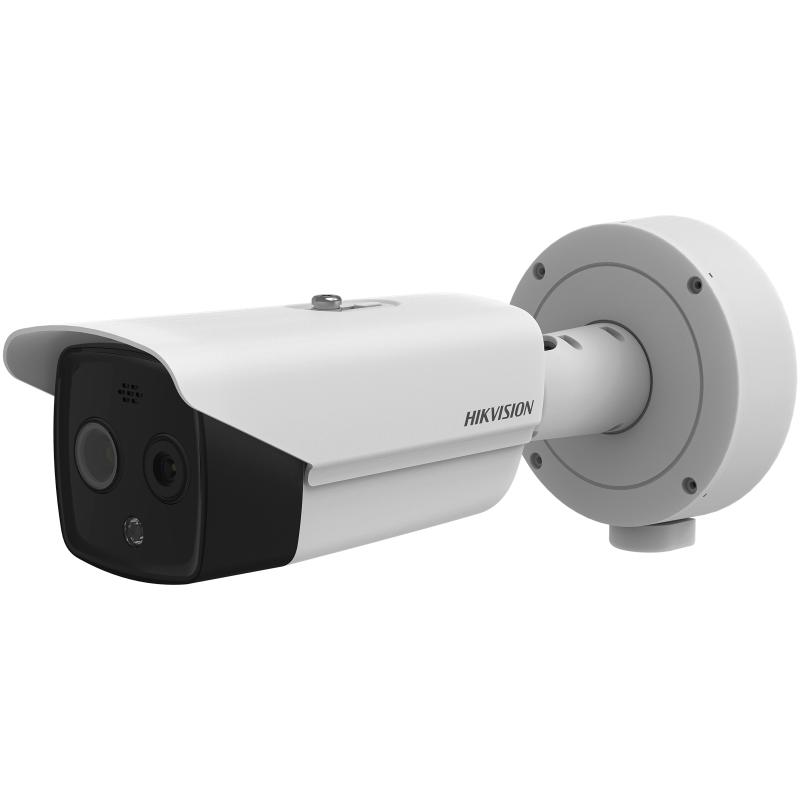

Thermal & Optical Bi-spectrum Network Bullet Camera

Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance & exit
Temperature exception alarm
Fire detection algorithm
160 × 120 (the resolution of output image is 320 × 240) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR

View Less

Data Sheet

DS-2TD2617-3/PAI

Specification
Resources
Accessories

Data Sheet

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution160 × 120
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETDLess than 40 mK (@ 25 °C,F#=1.1)
Focal Length3.1 mm
IFOV5.48 mrad
Field of View50° × 37.2° (H × V)
Min. Focusing Distance0.2 m
ApertureF1.1
Digital Zoom×2, ×4, ×8

Optical Module
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688 × 1520, 4 MP
Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
Shutter Speed1s to 1/100,000s
Field of View84° × 44.8° (H × V)
Focal Length4 mm
Aperture (Range)F1.6
WDR120 dB

Image Effect
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

Illuminator
IR DistanceUp to 40 m
IR Intensity and AngleAutomatically adjusted

Audible and Visual Alarm
White Light RangeUp to 40 m
Visual AlarmYes. White light used as the visual alarm, flashing frequency adjustable
Audio alarmYes. 6 audio alarms are supported to cover all kinds of alarm.

Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical: 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface
Alarm Input1-ch inputs (0-5 VDC)
Alarm Output1-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface

General
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.65A
Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W 12 VDC ± 20%: 0.65 A, max. 7.5 W
Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension354 mm × 144.1 mm × 156.7 mm (13.94" × 5.67" × 6.17")
WeightApprox. 1.76 kg (3.88 lb)

Detection Range Table/Wide Range Coverage
Detection Range for Humans (1.8×0.5m)91 m
Detection Range for Vehicles (4.0×1.4m)280 m
Recognition Range for Humans (1.8×0.5m)23 m
Recognition Range for Vehicles (4.0×1.4m)70 m
Identification Range for Humans (1.8×0.5m)11 m
Identification Range for Vehicles (4.0×1.4m)35 m

Detection Range Table/Smart Function Range
VCA Range for Humans21 m
VCA Range for Vehicles63 m
Temperature Measurement Range for Object (2m×2m)66 m
Temperature Measurement Range for Object (1m×1m)33 m
Fire Detection Range for Object (2m×2m)180 m
Fire Detection Range for Object (1m×1m)90 m

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

160 × 120

Pixel Interval

17 μm

Response Waveband

8 μm to 14 μm

NETD

Less than 40 mK (@ 25 °C,F#=1.1)

Focal Length

3.1 mm

IFOV

5.48 mrad

Field of View

50° × 37.2° (H × V)

Min. Focusing Distance

0.2 m

Aperture

F1.1

Digital Zoom

×2, ×4, ×8

Optical Module

Image Sensor

1/2.7" Progressive Scan CMOS

Resolution

2688 × 1520, 4 MP

Min. Illumination

Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)

Shutter Speed

1s to 1/100,000s

Field of View

84° × 44.8° (H × V)

Focal Length

4 mm

Aperture (Range)

F1.6

WDR

120 dB

Image Effect

Bi-spectrum Image Fusion

Display the details of optical channel on thermal channel

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Yes. Supported in white hot and black hot mode.

Illuminator

IR Distance

Up to 40 m

IR Intensity and Angle

Automatically adjusted

Audible and Visual Alarm

White Light Range

Up to 40 m

Visual Alarm

Yes. White light used as the visual alarm, flashing frequency adjustable

Audio alarm

Yes. 6 audio alarms are supported to cover all kinds of alarm.

Smart Function

VCA

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range

-20 °C to 150 °C (-4 °F to 302 °F)

Temperature Accuracy

± 8 °C (±14.4 °F)

Fire Detection

Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

Main Stream

Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical: 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

Video Compression

Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG

Audio Compression

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Network Storage

MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

API

ISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Client

iVMS-4200, Hik-Connect

Web Browser

Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface

Alarm Input

1-ch inputs (0-5 VDC)

Alarm Output

1-ch relay outputs, alarm response actions configurable

Alarm Action

SD recording/Relay output/Smart capture/FTP upload/Email linkage

Audio Input

1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio Output

Linear Level; Impedance: 600 Ω

Communication Interface

1, RJ45 10 M/100 M Self-adaptive Ethernet interface

General

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power

PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.65A

Power Consumption

PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W 12 VDC ± 20%: 0.65 A, max. 7.5 W

Work Temperature/Humidity

From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less

Protection Level

IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimension

354 mm × 144.1 mm × 156.7 mm (13.94" × 5.67" × 6.17")

Weight

Approx. 1.76 kg (3.88 lb)

Detection Range Table/Wide Range Coverage

Detection Range for Humans (1.8×0.5m)

91 m

Detection Range for Vehicles (4.0×1.4m)

280 m

Recognition Range for Humans (1.8×0.5m)

23 m

Recognition Range for Vehicles (4.0×1.4m)

70 m

Identification Range for Humans (1.8×0.5m)

11 m

Identification Range for Vehicles (4.0×1.4m)

35 m

Detection Range Table/Smart Function Range

VCA Range for Humans

21 m

VCA Range for Vehicles

63 m

Temperature Measurement Range for Object (2m×2m)

66 m

Temperature Measurement Range for Object (1m×1m)

33 m

Fire Detection Range for Object (2m×2m)

180 m

Fire Detection Range for Object (1m×1m)

90 m
