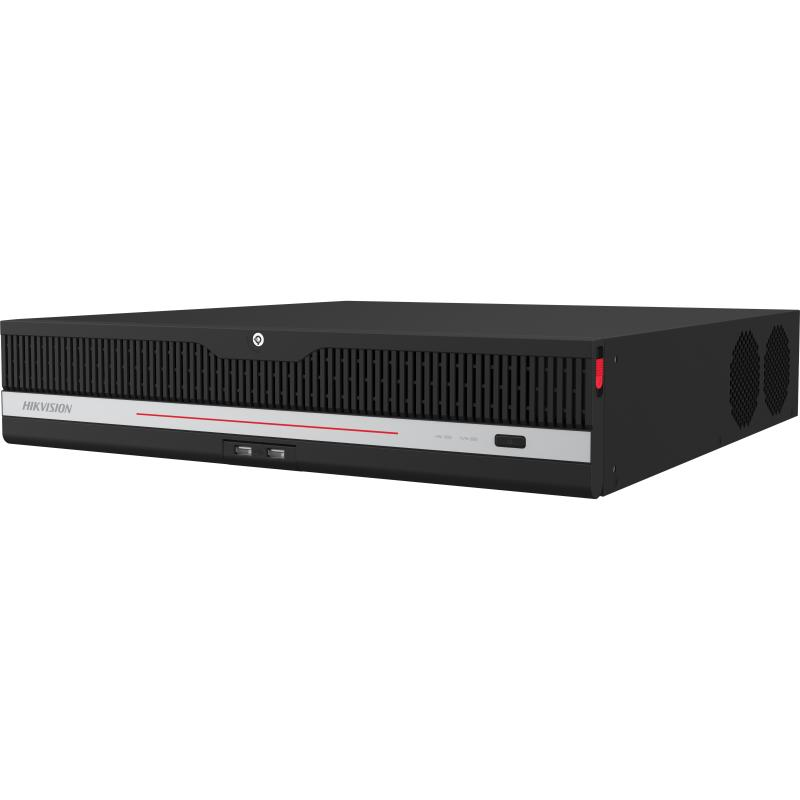

DeepinMind NVR

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
H.265+/H.265/H.264+/H.264 video formats
Up to 32-ch IP cameras can be connected
Deep learning based video analytics for not wearing hard hat detection and event detection, including people running detection, people gathering detection, violent motion detection, using mobile phone detection, etc

View Less

Data Sheet

Available models:

iDS-9632NXI-M8/AI

Specification
Resources
Accessories

Data Sheet

Intelligent Analytics
AI by NVRPre-installed AI Algorithm Package Human ( 3 Algorithm models ) 1. Facial recognition: 2. People counting: regional people counting, people counting statistics 3. PPE: safety helmets and reflective vests detection Vehicle ( 2 Algorithm models ) 1. Vehicle attributes: vehicle brand,vehicle color, vehicle type 2. Non-motorized vehicle detection: motorcycle, bicycles Dangerous Event( 2 Algorithm models ) 1. Fire and smoke detection 2. Occupation of fire escape Behaviour ( 3 Algorithm models ) 1. Street level behaviour : falling down detection, people gathering detection, fast moving detection, physical conflict detection 2. Indoor: playing mobile phone, number of people exception, overstaying detection 3. Perimeter: intrusion detection, line crossing detection, region entrance detection, region exiting detection 4. Smoke detection, call detection AIOP (Up to 16 models) Model type: detection model, classification model, mixed model (detection model and classification model)
Engine2 engines in total, One engine can support four algorithm models; each algorithm model supports one real-time video stream analysis or a maximum of 16 auto-switch video analyses(switch time between 10 to 3600 seconds)

AI Open Platform Performance
Live Video Analysis8
Auto-Switch Video Analysis32
Scheduled Capture Analysis32

Video and Audio
IP Video Input32-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth320 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output1920 × 1080/60Hz
VGA 2 Output1920 × 1080/60Hz
Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
Audio Output2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265/H.265+/H.264/H.264+
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Synchronous Playback16-ch
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Network
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output
SATA8 SATA interfaces; 3.5-inch HDD
eSATA1 eSATA interface
CapacityUp to 14 TB capacity for each HDD
Serial Interface1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Alarm In/Out16/9

General
GUI LanguageEnglish
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 50 W (without HDD)
Working Temperature-10 to 55° C (14 to 131° F)
Working Humidity10 to 90%
Dimension (W × D × H)442 × 465 × 88 mm
Weight≤ 15 kg (without HDD)

Intelligent Analytics

AI by NVR

Pre-installed AI Algorithm Package Human ( 3 Algorithm models ) 1. Facial recognition: 2. People counting: regional people counting, people counting statistics 3. PPE: safety helmets and reflective vests detection Vehicle ( 2 Algorithm models ) 1. Vehicle attributes: vehicle brand,vehicle color, vehicle type 2. Non-motorized vehicle detection: motorcycle, bicycles Dangerous Event( 2 Algorithm models ) 1. Fire and smoke detection 2. Occupation of fire escape Behaviour ( 3 Algorithm models ) 1. Street level behaviour : falling down detection, people gathering detection, fast moving detection, physical conflict detection 2. Indoor: playing mobile phone, number of people exception, overstaying detection 3. Perimeter: intrusion detection, line crossing detection, region entrance detection, region exiting detection 4. Smoke detection, call detection AIOP (Up to 16 models) Model type: detection model, classification model, mixed model (detection model and classification model)

Engine

2 engines in total, One engine can support four algorithm models; each algorithm model supports one real-time video stream analysis or a maximum of 16 auto-switch video analyses(switch time between 10 to 3600 seconds)

AI Open Platform Performance

Live Video Analysis

Auto-Switch Video Analysis

Scheduled Capture Analysis

Video and Audio

IP Video Input

32-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

400 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

VGA 1 Output

1920 × 1080/60Hz

VGA 2 Output

1920 × 1080/60Hz

Video Output Mode

HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output

Audio Output

2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265/H.265+/H.264/H.264+

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)

Synchronous Playback

16-ch

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

SATA

8 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Capacity

Up to 14 TB capacity for each HDD

Serial Interface

1 RS-232, 1 RS-485 (full-duplex), 1 keyboard

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

Alarm In/Out

16/9

General

GUI Language

English

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 50 W (without HDD)

Working Temperature

-10 to 55° C (14 to 131° F)

Working Humidity

10 to 90%

Dimension (W × D × H)

442 × 465 × 88 mm

Weight

≤ 15 kg (without HDD)
