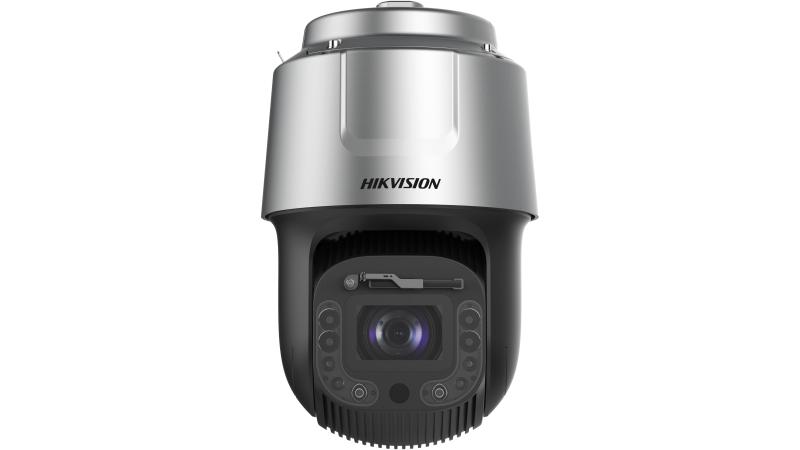

8-inch 4K 48X DarkFighter Laser Network Speed Dome

1/1.8" progressive scan CMOS
Up to 3840 × 2160 resolution
Color: 0.002Lux @ (F1.5, AGC ON), B/W: 0.0002Lux @ (F1.5, AGC ON)
48× optical zoom, 16× digital zoom
120dB WDR, 3D DNR,EIS, OIS,HLC, Smart IR
Up to 500 m laser distance
Support H.265+/H.265 video compression
Support Rapid focus
IP67
Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
Person arming: supports real-time modeling and comparison, arms and tracks predefined persons
Vehicle arming: supports vehicle detection and license plate recognition, arms and tracks predefined vehicles

View Less

Available models:

DS-2DF8C848I5XS-AELW(T2)

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/1.8＂ progressive scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
Shutter Speed1/1 s to 1/30,000 s
Slow Shutteryes
Focusauto;manual;semi-auto
Day & NightICR
Day/Night Switchday, night, auto, scheduled-switch
BLCyes
WDR120 dB WDR
HLCyes
3D DNRyes
Defogyes
EISyes
OISyes
Regional Exposureyes
Regional Focusyes
Image Settingssaturation;brightness;contrast;sharpness
Image Parameters Switchyes
White Balanceauto;MWB;ATW;indoor;outdoor;fluorescent lamp;sodium lamp
Digital Zoom16x
Optical Zoom48X
Privacy Maskup to 24 masks;mask color configurable;rectangle region ;mosaic mask
SNR≥52dB
Optical Defogyes

Lens
Focal Length6.0 to 288 mm, 48 × Optical
Zoom Speedapprox. 5 s
FOV Horizontal field of view: 60.0° to 2.0° (wide-tele), Vertical field of view: 35.8° to 1.2° (wide-tele), Diagonal field of view: 67.0° to 2.4° (wide-tele)
ApertureF1.5

Illuminator
Laser Distance500 m
Smart IRyes

PTZ
Movement Range (Pan)360°
Movement Range (Tilt) -20° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off Memoryyes
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video
Max. Resolution3840 × 2160
Main Stream50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
Video Bit Rate32 Kbps to 16384 Kbps
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIdynamic face tracking;fixed region;dynamic license plate tracking

Audio
Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Bit rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 128 Kbps(MP2L2)

Smart Features
Multi-target-type Detectionsupport face and human body capture, and output linked information
Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Face Comparisonyes
Basic Eventaudio exception;motion detection;video tampering alarm;exception;video tampering alarm;alarm output;alarm input
Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;vandal-proof alarm
Smart Trackingmanual tracking;event tracking;support patrol tracking among multiple detection scenes;auto-tracking
Smart RecordANR;Dual-VCA
Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording
Smart EncodingROI;SVC;H.265+;H.264+;low bit rate

Network
Network StorageNAS (NFS, SMB/ CIFS)
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;ISUP;Hik-Connect
Simultaneous Live View20
User/Host32
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200;Hik-Connect;Hikcentral
Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Interface
Power Outputno
Communication InterfaceSelf-adaptive 10M/100M Ethernet port
Fiber Interfaceno
On-board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input7 alarm inputs
Alarm Output2 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

General
Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Power Consumption and Current24 VAC (Max. 62 W, including max. 12 W for IR and max. 8 W for heater), PoE 802.3 bt (Max. 51 W, including max. 12 W for IR and max. 8 W for heater)
WiperYes. Rain-sensing auto control
DimensionsØ 267 mm × 430 mm (Ø 10.51" × 16.93")
WeightApprox. 9.6 kg (21.16 lb.)

Approval
ProtectionIP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Camera

Image Sensor

1/1.8＂ progressive scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)

Shutter Speed

1/1 s to 1/30,000 s

Slow Shutter

yes

Focus

auto;manual;semi-auto

Day & Night

ICR

Day/Night Switch

day, night, auto, scheduled-switch

BLC

yes

WDR

120 dB WDR

HLC

yes

3D DNR

yes

Defog

yes

EIS

yes

OIS

yes

Regional Exposure

yes

Regional Focus

yes

Image Settings

saturation;brightness;contrast;sharpness

Image Parameters Switch

yes

White Balance

auto;MWB;ATW;indoor;outdoor;fluorescent lamp;sodium lamp

Digital Zoom

16x

Optical Zoom

48X

Privacy Mask

up to 24 masks;mask color configurable;rectangle region ;mosaic mask

SNR

≥52dB

Optical Defog

yes

Lens

Focal Length

6.0 to 288 mm, 48 × Optical

Zoom Speed

approx. 5 s

FOV

Horizontal field of view: 60.0° to 2.0° (wide-tele), Vertical field of view: 35.8° to 1.2° (wide-tele), Diagonal field of view: 67.0° to 2.4° (wide-tele)

Aperture

F1.5

Illuminator

Laser Distance

500 m

Smart IR

yes

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-20° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s

Tilt Speed

tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s

Proportional Zoom

yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

yes

Park Action

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

3D Positioning

yes

PTZ Status Display

yes

Preset Freezing

yes

Scheduled Task

preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video

Max. Resolution

3840 × 2160

Main Stream

50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265;H.264;MJPEG

Video Bit Rate

32 Kbps to 16384 Kbps

H.264 Type

baseline profile;main profile;high profile

H.265 Type

main profile

H.264+

yes

H.265+

yes

SVC

yes

ROI

dynamic face tracking;fixed region;dynamic license plate tracking

Audio

Audio Compression

G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM

Audio Bit rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 128 Kbps(MP2L2)

Smart Features

Multi-target-type Detection

support face and human body capture, and output linked information

Face Capture

Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

Face Comparison

yes

Basic Event

audio exception;motion detection;video tampering alarm;exception;video tampering alarm;alarm output;alarm input

Smart Event

intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;vandal-proof alarm

Smart Tracking

manual tracking;event tracking;support patrol tracking among multiple detection scenes;auto-tracking

Smart Record

ANR;Dual-VCA

Alarm Linkage

preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording

Smart Encoding

ROI;SVC;H.265+;H.264+;low bit rate

Network

Network Storage

NAS (NFS, SMB/ CIFS)

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API

Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;ISUP;Hik-Connect

Simultaneous Live View

User/Host

Security Measures

Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter

Client

iVMS-4200;Hik-Connect;Hikcentral

Web Browser

IE10-11, Chrome 57+, Firefox 52+, Safari 12+

Interface

Power Output

Communication Interface

Self-adaptive 10M/100M Ethernet port

Fiber Interface

On-board Storage

support microSD/microSDHC/microSDXC cards, up to 256 GB

Alarm Input

7 alarm inputs

Alarm Output

2 alarm output

Audio Input

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%

Audio Output

1 audio output, line level, impedance: 600 Ω

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

General

Operating Condition

Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%

Power Consumption and Current

24 VAC (Max. 62 W, including max. 12 W for IR and max. 8 W for heater), PoE 802.3 bt (Max. 51 W, including max. 12 W for IR and max. 8 W for heater)

Wiper

Yes. Rain-sensing auto control

Dimensions

Ø 267 mm × 430 mm (Ø 10.51" × 16.93")

Weight

Approx. 9.6 kg (21.16 lb.)

Approval

Protection

IP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
