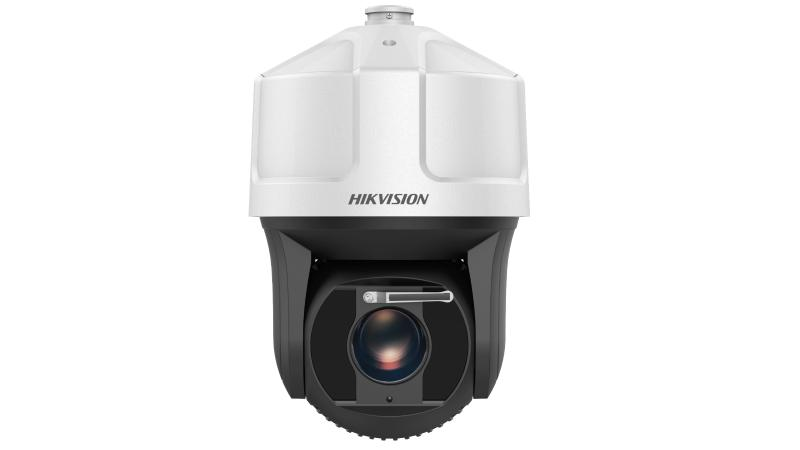

8-inch 4 MP 36X DarkFighter Traffic Network Speed Dome

View Less

Data Sheet

Available models:

iDS-2VS435-F836-EY(C)

iDS-2VS435-F836

EOL

Specification
Resources
Accessories

Data Sheet

Lens
Zoom SpeedApprox. 4.4 s (optical lens, wide-tele)
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.5 to F4.5
Focal Length5.7 to 205.2 mm, 36 × optical zoom
Field of ViewHorizontal field of view: 59.8-2.0° (wide-tele), Vertical field of view: 33.6-1.1° (wide-tele), Diagonal field of view: 68.6 -2.3° (wide-tele)

Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Main Stream50Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) ; 60Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) , 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
SVCYes

Network
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
APIOnvif (profile S, profile G), SDK, ISAPI
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Web BrowserIE8+, Chrome 31-44, Firefox 30-51, Safari 8.0-11
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm7-ch alarm input/2-ch alarm output
Audio1-ch audio input, 1-ch audio output

Interface
Network Interface1 RJ45 10 M/100 M Ethernet interface
RS-485RS-485 Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
CVBS1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC connector

Compression Standard
H.264+Yes
H.265+Yes
H.264 TypeBaseline Profile/Main Profile/High Profile
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG,
H.265 TypeMain Profile
Video Bitrate32 Kbps to 16384 Kbps
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)

Smart Feature
Smart EventAudio exception detection
Smart RecordANR (Automatic Network Replenishment)

Camera Module
3D DNRYes
Regional ExposureYes
Regional FocusYes
Image Sensor1/1.8" progressive scan CMOS
Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON); B/W: 0.0002 Lux @(F1.5, AGC ON); 0 Lux with IR
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom16×
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
Focus ModeAuto/Semi-automatic/Manual
WDR120 dB
BLCYes
HLCYes
EISYes
DefogYes

PTZ
Movement Range (Pan)360° endless
Pan SpeedConfigurable, from 0.1°/s to 210°/s. Preset speed: 280°/s
Movement Range (Tilt)-20° to 90°, autoflip
Tilt SpeedConfigurable, from 0.1°/s to 150°/s. Preset speed: 250°/s
Proportional ZoomYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemoryYes
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

General
MaterialADC12
DimensionsΦ267 mm × 410 mm (Φ10.51" × 16.14")
WeightApprox. 8 kg (17.64 lb.)
Protection LevelIP67, NEMA 4X anti-corrosion
Power24 VAC, max. 60 W, including max. 18 W for IR and max. 6 W for heater; Hi-PoE, max. 50 W, including max. 18 W for IR and max. 6 W for heater
Working Environment- 40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%

Lens

Zoom Speed

Approx. 4.4 s (optical lens, wide-tele)

Working Distance

10 mm to 1500 mm (wide-tele)

Aperture Range

F1.5 to F4.5

Focal Length

5.7 to 205.2 mm, 36 × optical zoom

Field of View

Horizontal field of view: 59.8-2.0° (wide-tele), Vertical field of view: 33.6-1.1° (wide-tele), Diagonal field of view: 68.6 -2.3° (wide-tele)


Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Main Stream

50Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) ; 60Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) , 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

SVC

Yes

Network

Network Storage

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour

API

Onvif (profile S, profile G), SDK, ISAPI

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Web Browser

IE8+, Chrome 31-44, Firefox 30-51, Safari 8.0-11

Security Measures

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Alarm

7-ch alarm input/2-ch alarm output

Audio

1-ch audio input, 1-ch audio output

Interface

Network Interface

1 RJ45 10 M/100 M Ethernet interface

RS-485

RS-485 Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

CVBS

1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC connector

Compression Standard

H.264+

Yes

H.265+

Yes

H.264 Type

Baseline Profile/Main Profile/High Profile

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG,

H.265 Type

Main Profile

Video Bitrate

32 Kbps to 16384 Kbps

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Bitrate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)

Smart Feature

Smart Event

Audio exception detection

Smart Record

ANR (Automatic Network Replenishment)

Camera Module

3D DNR

Yes

Regional Exposure

Yes

Regional Focus

Yes

Image Sensor

1/1.8" progressive scan CMOS

Min. Illumination

Color: 0.002 Lux @(F1.5, AGC ON); B/W: 0.0002 Lux @(F1.5, AGC ON); 0 Lux with IR

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

Gain

Auto/Manual

Shutter Time

1/1 s to 1/30,000 s

Day & Night

IR Cut Filter

Digital Zoom

16×

Privacy Mask

24 programmable polygon privacy masks, mask color or mosaic configurable

Focus Mode

Auto/Semi-automatic/Manual

WDR

120 dB

BLC

Yes

HLC

Yes

EIS

Yes

Defog

Yes

PTZ

Movement Range (Pan)

360° endless

Pan Speed

Configurable, from 0.1°/s to 210°/s. Preset speed: 280°/s

Movement Range (Tilt)

-20° to 90°, autoflip

Tilt Speed

Configurable, from 0.1°/s to 150°/s. Preset speed: 250°/s

Proportional Zoom

Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

General

Material

ADC12

Dimensions

Φ267 mm × 410 mm (Φ10.51" × 16.14")

Weight

Approx. 8 kg (17.64 lb.)

Protection Level

IP67, NEMA 4X anti-corrosion

Power

24 VAC, max. 60 W, including max. 18 W for IR and max. 6 W for heater; Hi-PoE, max. 50 W, including max. 18 W for IR and max. 6 W for heater

Working Environment

- 40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
