DS-2ZCN3006

EOL

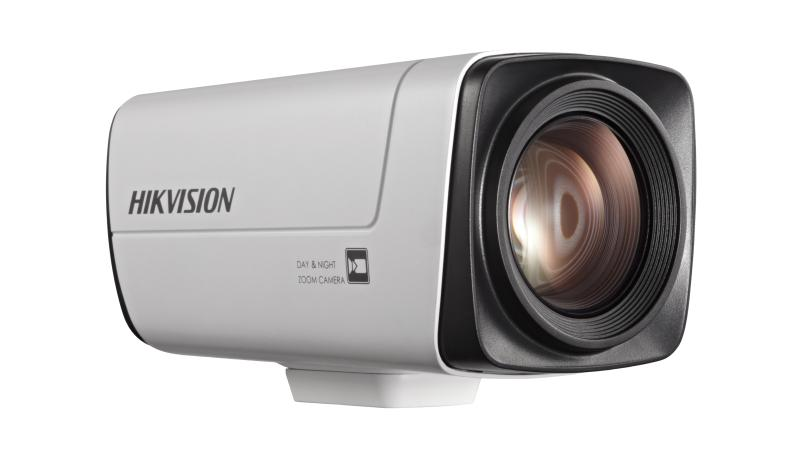

1.3 MP 30X Powered by DarkFighter Network Zoom Camera Module

High quality imaging with 1.3 MP resolution
30x optical zoom provides close up views over expansive areas
Easy to connet to speed domes and PTZ cameras

View Less

Available models:

DS-2ZCN3006(C)

Lens
Zoom SpeedApprox. 3s (Optical, Wide-Tele)
Working Distanceto 1500mm (Wide-Tele)
Aperture RangeF1.6 to F4.4
Angle of View58.9° to 2.11° (Wide-Tele)
Focal Length4.5mm to 135mm, 30× optical

Image EnhancementSaturation, Brightness, Contrast, Sharpness adjustable
Max. Resolution50HZ: 25fps (1280×960), 60HZ: 30fps (1280×960),50HZ: 25fps (1280×720), 60HZ: 30fps (1280×720)

Network
ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)
Security MeasuresPassword Protection, Multiple User Access Control
Alarm LinkageMotion Detection, Tampering Alarm, Storage Full, Storage Exception, Audio Exception Detection, Line Crossing Detection, Intrusion Detection
StandardONVIF, PSIA, CGI, ISAPI
Outward InterfaceNetwork Interface, RS485, Alarm In/Out, Line In/Out, CVBS, SDHC
CommunicationRS485Interface, Pelco Protocol
OtherDouble Streams, Heartbeat

Compression Standard
Video CompressionH.264/MJPEG
Video Bitrate32kbps to 12Mbps
Audio CompressionG.722.1, G.711-a law, G.711-u law, MP2L2, G.726

Camera Module
DNR3D DNR
Video OutputNetwork Encoding Output
Image Sensor1/3" Progressive Scan CMOS
ModelDS-2ZCN3006(C), 30× 1.3MP 1/3″ COMS ICR Day/Night Network Zoom Camera
Min. IlluminationColor: 0.05Lux @ (F1.6, AGC ON),B/W: 0.01Lux @ (F1.6, AGC ON)
White BalanceAuto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/Fluorescent Lamp
Gain16 levels adjustable
S/N ratio> 52dB (AGC OFF)
Shutter Time1/1 sec to 1/30,000 sec
Day & NightICR filter，Auto/Color/BW/Scheduled-Switch/Triggered by Alarm Input
Digital Zoom12×
Focus ModeAuto/Manual/One Touch
WDRON/OFF
BLCOFF, Left/Right, Up/Down or Center
Signal SystemPAL/NSTC

Function
Dead Pixel CompensationSupport
Lens InitializationInternal
Exposure ModeAuto/Aperture Priority/Shutter Priority/Manual

Specification

Lens

Zoom Speed

Approx. 3s (Optical, Wide-Tele)

Working Distance

to 1500mm (Wide-Tele)

Aperture Range

F1.6 to F4.4

Angle of View

58.9° to 2.11° (Wide-Tele)

Focal Length

4.5mm to 135mm, 30× optical


Image Enhancement

Saturation, Brightness, Contrast, Sharpness adjustable

Max. Resolution

50HZ: 25fps (1280×960), 60HZ: 30fps (1280×960),50HZ: 25fps (1280×720), 60HZ: 30fps (1280×720)

Network

Protocols

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)

Security Measures

Password Protection, Multiple User Access Control

Alarm Linkage

Motion Detection, Tampering Alarm, Storage Full, Storage Exception, Audio Exception Detection, Line Crossing Detection, Intrusion Detection

Standard

ONVIF, PSIA, CGI, ISAPI

Outward Interface

Network Interface, RS485, Alarm In/Out, Line In/Out, CVBS, SDHC

Communication

RS485Interface, Pelco Protocol

Other

Double Streams, Heartbeat

Compression Standard

Video Compression

H.264/MJPEG

Video Bitrate

32kbps to 12Mbps

Audio Compression

G.722.1, G.711-a law, G.711-u law, MP2L2, G.726

Camera Module

DNR

3D DNR

Video Output

Network Encoding Output

Image Sensor

1/3" Progressive Scan CMOS

Model

DS-2ZCN3006(C), 30× 1.3MP 1/3″ COMS ICR Day/Night Network Zoom Camera

Min. Illumination

Color: 0.05Lux @ (F1.6, AGC ON),B/W: 0.01Lux @ (F1.6, AGC ON)

White Balance

Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/Fluorescent Lamp

Gain

16 levels adjustable

S/N ratio

> 52dB (AGC OFF)

Shutter Time

1/1 sec to 1/30,000 sec

Day & Night

ICR filter，Auto/Color/BW/Scheduled-Switch/Triggered by Alarm Input

Digital Zoom

12×

Focus Mode

Auto/Manual/One Touch

WDR

ON/OFF

BLC

OFF, Left/Right, Up/Down or Center

Signal System

PAL/NSTC

Function

Dead Pixel Compensation

Support

Lens Initialization

Internal

Exposure Mode

Auto/Aperture Priority/Shutter Priority/Manual
