EOL

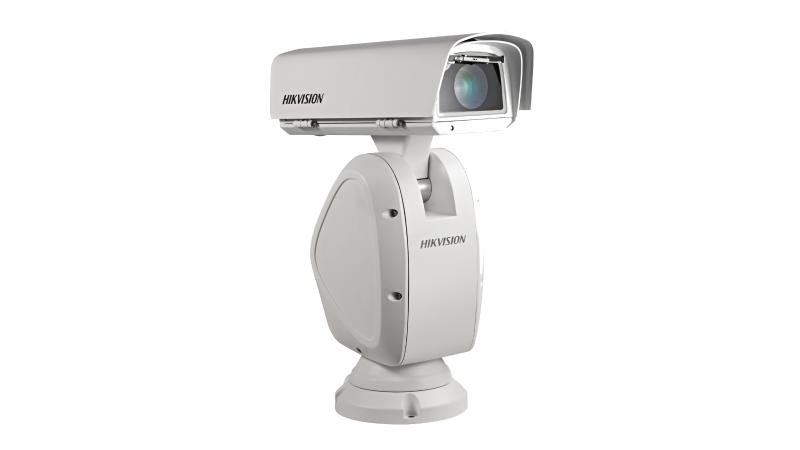

9-inch 2 MP 50X Powered by DarkFighter Network Positioning System

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance
  • 50x optical zoom provides close up views over expansive areas
  • Water and dust resistant (IP66)

View Less
View more

Available models:

DS-2DY9250X-A(D)

Specification

  • Lens
  • FOVHorizontal field of view: 41.3° to 1.1° (wide-tele),Vertical field of view: 23.6° to 0.6° (wide-tele),Diagonal field of view: 47.4° to 1.3° (wide-tele)
  • Zoom SpeedApprox. 4.5 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.8 to F5.5
  • Focal Length6.6 mm to 330 mm, 50× Optical
  • Image
  • Image EnhancementHLC/BLC/3D DNR/Defog/OIS/Regional Exposure/Regional Focus
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Network
  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • APIOpen-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-5200
  • Web BrowserIE 8+, Firefox 30+, Safari 8.0+ web browser
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Interface
  • BNC1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC
  • Alarm Output2-ch alarm output
  • Alarm Input7-ch alarm input
  • Audio Input1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
  • Audio Output1-ch audio output, line level, impedance: 600 Ω
