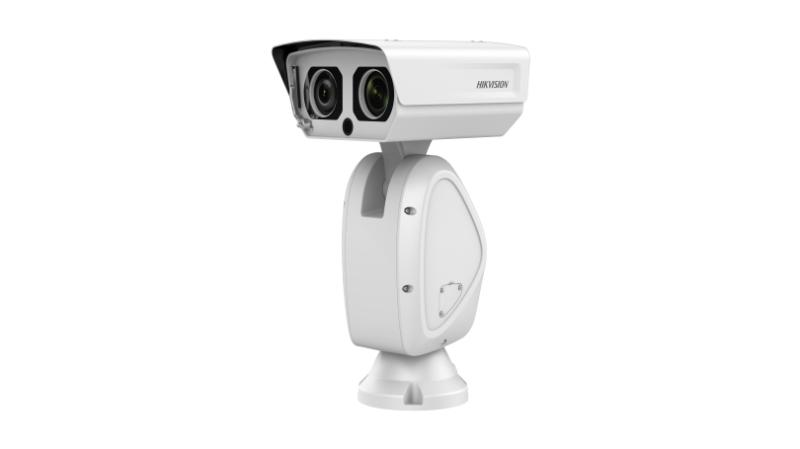

9-inch 2 MP 36X DarkFighter Laser Network Positioning System

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • 36x optical zoom provides close up views over expansive areas
  • Expansive night view with 800 meter laser IR
  • Water and dust resistant (IP66)
View Less
View more

Available models:

DS-2DY9236I8X-A(D)

Specification

  • Lens
  • Zoom SpeedApprox. 4.4 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F4.5
  • Focal Length5.6 mm to 207 mm, 36× Optical
  • Field of ViewHorizontal field of view: 59.8-2.0° (wide-tele), Vertical field of view: 33.6-1.1° (wide-tele), Diagonal field of view: 68.6 -2.3° (wide-tele)
  • Image
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • SVCYes
  • Network
  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+,Edge 16.16299+, Safari 11+
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, and Audio Visual Alarm etc.
  • Alarm7-ch alarm input/2-ch alarm output
  • Audio1-ch audio input, 1-ch audio output
  • Interface
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
  • RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • CVBS1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
  • Compression Standard
  • H.264+Yes
  • H.265+Yes
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG,
  • H.265 TypeMain Profile
  • Video Bitrate32 Kbps to 16384 Kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
  • Laser Distance800 m
  • Smart Feature
  • Smart EventFace Detection, Audio Exception Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIEight fixed region for each stream
  • Camera Module
  • 3D DNRYes
  • Regional ExposureYes
  • Regional FocusYes
  • Image Sensor1/1.9’’ Progressive Scan CMOS
  • Min. IlluminationColor:0.002Lux @ (F1.5, AGC ON), B/W:0.0002Lux @(F1.5, AGC ON), 0 lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • GainAuto/Manual
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB
  • BLCYes
  • HLCYes
  • EISYes
  • DefogYes
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
  • Movement Range (Tilt)From -90° to 40°
  • Tilt SpeedConfigurable, from 0.1°/s to 40°/s, Preset Speed: 100°/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemoryYes
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Preset FreezingYes
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • General
  • MaterialAluminum alloy, ADC12
  • DimensionsΦ 251 mm × 360 mm x 508 mm (9.88" × 14.17" × 20")
  • WeightApprox. 20 Kg ( 44.09 lb.)
  • Protection LevelIP66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power24 VAC, max. 110 W
  • Working Environment- 40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
