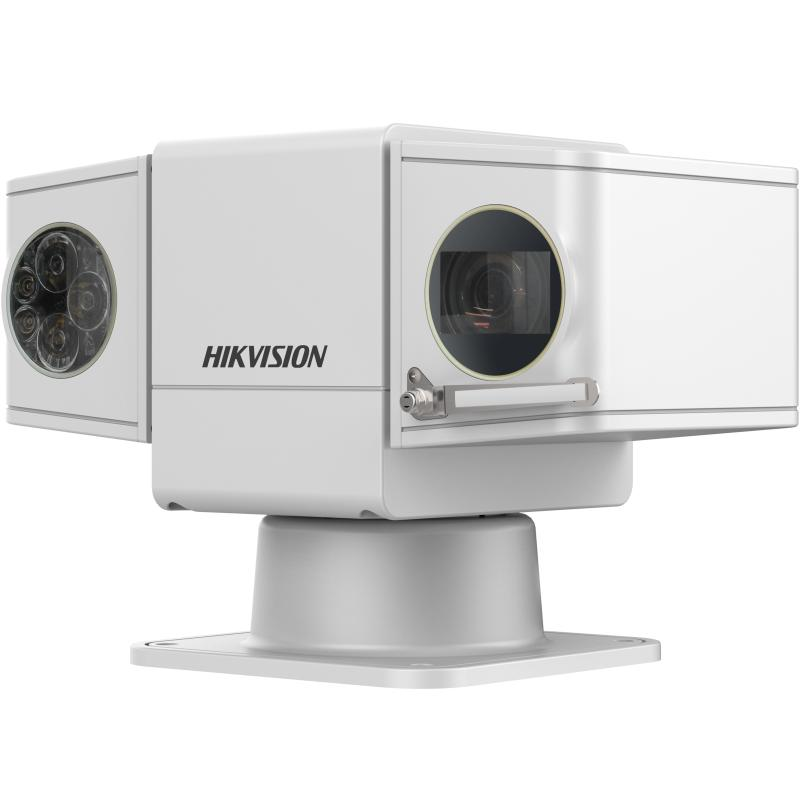

DS-2DY5223IW-DM

EOL

5-inch 2 MP 23X DarkFighter IR Network Positioning System

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Covering a vertical area with tilt angle from -90° to 90°
23x optical zoom provides close up views over expansive areas
Mobile vehicles are supported with anti-vibration design

View Less

View more

Available models:

DS-2DY5223IW-DM

Lens
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.5 to F3.4
Focal Length5.9-135.7mm, 23X
Field of View59.8°-3.0°(Wide-Tele)

Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 720)
SVCYes

Network
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE
APIONVIF, PSIA, CGI, Genetec
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Alarm7-ch alarm input/2-ch alarm output

Interface
Network Interface1 RJ45 10 M/100 M Ethernet Interface
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-AI2daptive
CVBS1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

Compression Standard
H.264+Yes
H.265+Yes
Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

IR
IR Distance150 m
Smart IRYes
IR IntensityAutomatically adjusted, depending on the zoom ratio

Smart Feature
Event DetectionFace detection, Intrusion detection, Line crossing detection, Audio exception detection, Region entrance detection, Region exiting detection
ROISupport 12 areas with adjustable levels

Camera Module
3D DNRYes
Image Sensor1/1.9’’ Progressive Scan CMOS
Min. IlluminationColor：0.002Lux @ (F1.5, AGC ON),B/W：0.0002Lux @(F1.5, AGC ON)
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time1/1 s to 1/10,000 s
Day & NightICR
Digital Zoom16×
Privacy MaskYes
Focus ModeAuto/Semi-automatic/Manual
WDRtrue WDR
BLCYes
DefogYes

PTZ
Movement Range (Pan)360° endless
Pan Speed0.1°/s to 80°/s
Movement Range (Tilt)From -90° to 90°
Tilt Speed0.1°/s to 40°/s
Proportional ZoomYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off Memorysupport
Park Actionsupport
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes

General
Dimensions306 mm×167 mm×212 mm
WeightApprox. 7.8 kg
Protection LevelIP66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
PowerDC12V, Max. 40W
Working Environment- 40°C to 65°C (-22°F to 149°F), Humidity: ≤ 90%
