DS-2CD1331-I

EOL

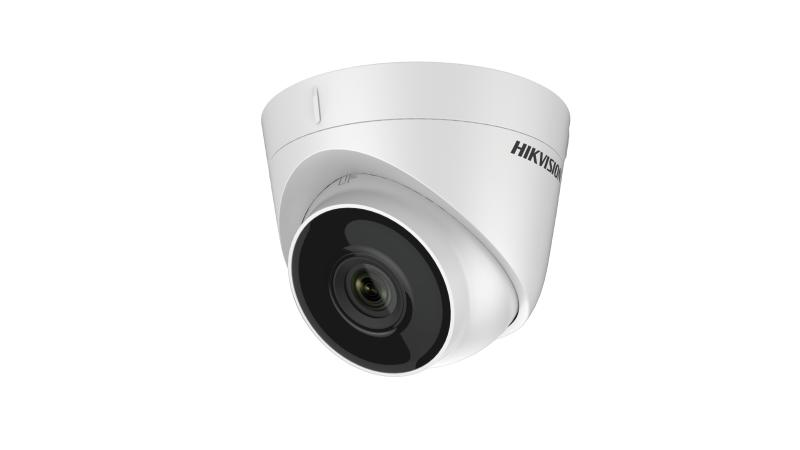

3 MP Fixed Turret Network Camera

High quality imaging with 3 MP resolution
Efficient H.264 compression technology
Clear imaging against strong back light by DWDR technology
dust and dust resistant (IP67)
EXIR 2.0, advanced infrared technology with long IR distance

View Less

Available models:

DS-2CD1331-I(2.8mm)(D)

DS-2CD1331-I(4mm)(D)

Camera
Image Sensor1/2.7" progressive scan CMOS
Min. IlluminationColor: 0.02 Lux @ (F1.2, AGC ON), 0.05 Lux @ (F2.0, AGC ON) B/W: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F2.0 AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100, 000 s
Slow ShutterYes
Wide Dynamic RangeDigital WDR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
DNR3D DNR
Day & NightIR cut filter

Lens
Lens2.8, 4, 6 mm
Auto-IrisNo
ApertureF2.0
FocusNo
FOV2.8 , horizontal FOV 87°, vertical FOV 65°, diagonal FOV: 112° 4 , horizontal FOV 67°, vertical FOV 50°, diagonal FOV: 85° 6 , horizontal FOV 45°, vertical FOV 34°, diagonal FOV: 58°
Lens MountM12

Illuminator
IR Range2.8/4 mm: up to 20 m 6 mm: up to 30 m
Wavelength850 nm

Video
Max. Resolution2048 × 1536
Video CompressionMain stream: H.264 Sub-stream: H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile
Video Bit Rate32 Kbps to 8 Mbps

Image EnhancementBLC, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Scheduled
Main Stream Max. Frame Rate50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users 3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Alarm TriggerMotion detection, video tampering alarm, illegal login

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Compression Standard
H.264+Main stream supports

General
Firmware Version5.5.4
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
MaterialCamera body: metal, bottom base: plastic
DimensionsΦ 110 mm × 93.2 mm (Φ 4.3" × 3.7")
WeightCamera: approx. 330 g (0.7 lb.)
Power Consumption and Current12 VDC, 0.4 A, max. 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Interface ProtectionIP67

Specification

Camera

Image Sensor

1/2.7" progressive scan CMOS

Min. Illumination

Color: 0.02 Lux @ (F1.2, AGC ON), 0.05 Lux @ (F2.0, AGC ON) B/W: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F2.0 AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Wide Dynamic Range

Digital WDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

DNR

3D DNR

Day & Night

IR cut filter

Lens

2.8, 4, 6 mm

Auto-Iris

Aperture

F2.0

Focus

FOV

2.8 , horizontal FOV 87°, vertical FOV 65°, diagonal FOV: 112° 4 , horizontal FOV 67°, vertical FOV 50°, diagonal FOV: 85° 6 , horizontal FOV 45°, vertical FOV 34°, diagonal FOV: 58°

Lens Mount

M12

Illuminator

IR Range

2.8/4 mm: up to 20 m 6 mm: up to 30 m

Wavelength

850 nm

Video

Max. Resolution

2048 × 1536

Video Compression

Main stream: H.264 Sub-stream: H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile

Video Bit Rate

32 Kbps to 8 Mbps


Image Enhancement

BLC, 3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Scheduled

Main Stream Max. Frame Rate

50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream Max. Frame Rate

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users 3 levels: Administrator, Operator and User

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Alarm Trigger

Motion detection, video tampering alarm, illegal login

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Compression Standard

H.264+

Main stream supports

General

Firmware Version

5.5.4

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Material

Camera body: metal, bottom base: plastic

Dimensions

Φ 110 mm × 93.2 mm (Φ 4.3" × 3.7")

Weight

Camera: approx. 330 g (0.7 lb.)

Power Consumption and Current

12 VDC, 0.4 A, max. 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W

Interface Protection

IP67
