EOL

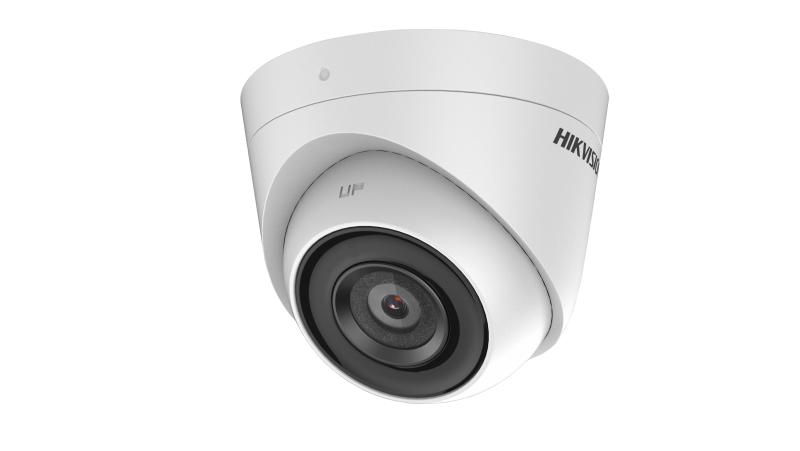

1MP Fixed Turret Network Camera

  • Good quality imaging with 1 MP resolution
  • Efficient H.264 compression technology
  • Clear imaging against strong back light by DWDR technology
  • Dust and dust resistant (IP67)
  • EXIR 2.0, advanced infrared technology with long IR distance
View Less
View more

Available models:

DS-2CD1301-I(4mm)(B)

Specification

  • Camera
  • Image Sensor1/4" progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100, 000 s, support slow shutter
  • Day &NightIR cut filter with auto switch
  • Wide Dynamic RangeDigital WDR
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
  • DNR3D DNR
  • Lens
  • Lens2.8 mm @F2.2, horizontal field of view 92°, 4 mm @F2.2, horizontal field of view 70°,6 mm @F2.2, horizontal field of view 56°
  • Lens MountM12
  • Illuminator
  • IR RangeUp to 30 m
  • Video
  • Max. Resolution1280 × 720
  • H.264 TypeBaseline Profile/Main Profile
  • Video Bit Rate32 Kbps to 2 Mbps
  • Smart Feature-Set
  • Exception DetectionMotion detection
  • Image
  • Image SettingBrightness, saturation, contrast, sharpness are adjustable via web browser or client software
  • Day/Night SwitchSupport auto, scheduled
  • Main Stream Max. Frame Rate50Hz: 25fps @(1280 × 720),60Hz: 30fps @(1280 × 720)
  • OthersMirror, BLC (area configurable), region of interest (support 1 fixed region)
  • Sub-stream Max. Frame Rate50Hz: 25fps @( 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps @( 640 × 480, 352 × 240, 320 × 240)
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • Alarm TriggerVideo tampering, network disconnected, IP address conflicted
  • StandardONVIF (PROFILE S, PROFILE G), ISAPI
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • General
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
  • Power Supply12 VDC ±25%, PoE (802.3af)
  • Power Consumption and CurrentMax. 3.5 W/5.5 W (PoE)
  • DimensionsΦ 85.5 mm × 70 mm (3.38" × 2.76")
  • Weight350 g (0.77 lb.)
  • Interface ProtectionIP67

Specification

Specification
Camera
  • Image Sensor1/4" progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100, 000 s, support slow shutter
  • Day &NightIR cut filter with auto switch
  • Wide Dynamic RangeDigital WDR
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
  • DNR3D DNR
Lens
  • Lens2.8 mm @F2.2, horizontal field of view 92°, 4 mm @F2.2, horizontal field of view 70°,6 mm @F2.2, horizontal field of view 56°
  • Lens MountM12
Illuminator
  • IR RangeUp to 30 m
Video
  • Max. Resolution1280 × 720
  • H.264 TypeBaseline Profile/Main Profile
  • Video Bit Rate32 Kbps to 2 Mbps
Smart Feature-Set
  • Exception DetectionMotion detection
  • Image SettingBrightness, saturation, contrast, sharpness are adjustable via web browser or client software
  • Day/Night SwitchSupport auto, scheduled
  • Main Stream Max. Frame Rate50Hz: 25fps @(1280 × 720),60Hz: 30fps @(1280 × 720)
  • OthersMirror, BLC (area configurable), region of interest (support 1 fixed region)
  • Sub-stream Max. Frame Rate50Hz: 25fps @( 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps @( 640 × 480, 352 × 240, 320 × 240)
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • Alarm TriggerVideo tampering, network disconnected, IP address conflicted
  • StandardONVIF (PROFILE S, PROFILE G), ISAPI
Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
General
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
  • Power Supply12 VDC ±25%, PoE (802.3af)
  • Power Consumption and CurrentMax. 3.5 W/5.5 W (PoE)
  • DimensionsΦ 85.5 mm × 70 mm (3.38" × 2.76")
  • Weight350 g (0.77 lb.)
  • Interface ProtectionIP67
