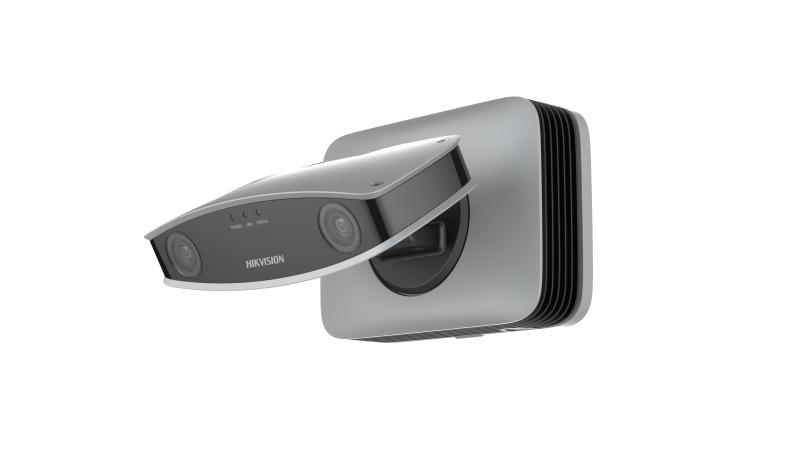

2 MP DeepinView Behavior Analysis Indoor Camera

High quality imaging with 2 MP resolution
Deep learning-based behavior analysis: loitering and person slip and fall
Efficient H.265+ compression technology to save bandwidth and storage.

View Less

Available models:

iDS-2CD8426G0/B-I(2.8mm)(B)

iDS-2CD8426G0/B-I

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8″ Progressive Scan CMOS ×2
Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON) Color: 0.0089 Lux @(F1.6, AGC ON) 0 Lux with IR on
Shutter Speed1/25 s to 1/100,000 s
Slow ShutterNo
Auto-irisNo
WDR120 dB
2-Axis AdjustmentTilt: -45° to 90°, rotate: 0° to 355°
DNR3D DNR
Day & NightIR Cut Filter

Lens
Focal lengthTwo identical lenses. 4 mm, 6 mm, 8mm, 12mm, optional
Aperture RangeF1.6
FOV4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 103° 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° 8 mm, horizontal FOV 41°, vertical FOV 22°, diagonal FOV 47° 12 mm, horizontal FOV 25°, vertical FOV 14°, diagonal FOV 29°

Decoding
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Video
Max. Resolution1920 × 1080
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265+Support
H.264+Support
H.265 TypeMain Profile

Audio
Environment Noise FilteringMax. 48 kHz
Audio Sampling RateSupport

Smart Feature-Set
ExceptionAudio exception detection

Main Stream50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Fourth Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Image EnhancementBLC, HLC, defog, EIS, lens distortion correction, 3D DNR
Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night SwitchAuto/Schedule/Triggered by Alarm In
SVCSupport

Network
Network StorageSupport Micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General FunctionAnti-flicker, five streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users 3 levels: Administrator, Operator and User
ClientiVMS-4200
Web BrowserIE7+, Chrome 18-42, Firefox 5.0+, Safari 5.02+

Interface
Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port, 1 RS-485 interface
Audio1 audio input (line in), 1 audio output (line out), mono soundtrack
Alarm1 input, 1 output (up to 24 VDC 1 A or 110 VAC 500 mA)
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB

IR
IR RangeUp to 10 m

Compression
Video CompressionMain stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264 Fifth stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps

Behavior Analysis
Behavior TypeLoitering, and people falling down
CalibrationManual, auto and one-touch calibration are supported

General
Operating Conditions-10 °C to 40 °C (-14 °F to 104 °F) Humidity 95% or less (non-condensing)
Power Supply36 VDC, two-core terminal block
Power Consumption and Current36 VDC, max. 27 W, 0.75A
WeightApprox. 1500 g (3.31 lb)
Shell MaterialMetal
Dimensions (W × D × H)180.4 × 147 × 117.9 mm (7.10″ × 5.79″ × 4.64″)
