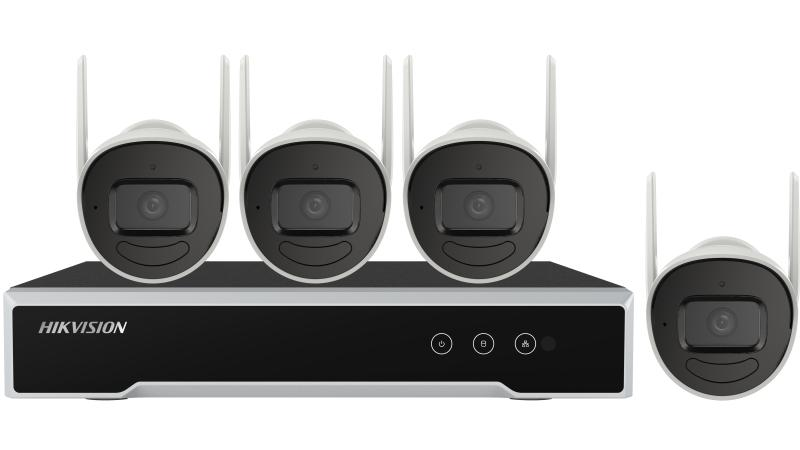

4MP H.265 Bullet WIFI Kit

One pack provides everything required for small monitoring scenarios:One 4-ch Wi-Fi NVR with decoding up to 4-ch @ 4MP
four 4 MP bullet Wi-Fi cameras with efficient H.265 compression technology
One network cable
Auto Wi-Fi connection and easy installation
Hik-Connect cloud service and app for remote management and viewing of devices

View Less

Data Sheet

Available models:

NK844W0H(E)

Specification
Resources
Accessories

Data Sheet

Camera
Camera Case TypeBullet
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day &NightIR cut filter
WDRDigital WDR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Protection LevelIP66
MaterialBase: Metal, front cover: Metal, back cover: Plastic
Wi-Fi SupportYes

Camera/Lens
Focal Length2.8 mm
ApertureF1.6
FocusFixed
FOVhorizontal FOV 98°, vertical FOV 54°, diagonal FOV 115°
Lens MountM12

Camera/IR
IR RangeUp to 30 m

Camera/Compression Standard
H.265 TypeMain Profile
H.265+Main stream supports
Video Bit Rate32 Kbps to 8 Mbps
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes
Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264

Camera/Image
Max. Resolution4MP
Main Stream50 Hz: 20 fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
Image SettingSaturation, brightness, contrast and sharpness are adjustable via client software and web browser

Camera/Network
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP
General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
ClientiVMS-4200, Hik-Connect

Camera/Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Audio I/O1 built-in microphone
Reset ButtonYes
Video OutNo

Camera/General
Power Supply12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug,reverse polarity protection,
Consumption ≤ 6 W
Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity95% or less (non-condensing)
Dimension (W × D × H)176.3 mm × 89.1 mm × 74.5 mm (6.9" × 3.5" × 2.9")
WeightApprox. 350 g (0.8 lb.)

NVR/Video and Audio
IP Video Input8-ch
Incoming/Outgoing Bandwidth50 Mbps/40 Mbps
HDMI/VGA Output1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
Audio Output1-ch, RCA (linear, 1 KΩ)

NVR/Decoding
Video Resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback8-ch
Capability4-ch@4 MP (12 fps)/4-ch@1080p (25 fps)

NVR/Network
Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Network ProtocolIPv6, UPnP™, NTP, SADP, DHCP
Remote Connection16

NVR/Wi-Fi
Frequency Band2.4 GHz
Antenna Structure2 × 2MIMO
Transmission Speed144 Mbps
Transmission StandardIEEE 802.11b/g/n

NVR/Auxiliary Interface
SATA1
CapacityUp to 6 TB capacity for each disk
USB InterfaceRear panel: 2 × USB 2.0

NVR/General
Power Supply12 VDC, 1.6 A
Consumption (without HDD and PoE off)≤ 10 W
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)265 × 246 × 48 mm (10.4" × 9.7" × 1.9")
Weight (without hard disk)≤ 1.6 kg (without HDD, 3.5 lb.)

Kit
AccessoriesPower adaptor: 4 × IPC power adaptors, 1 × NVR power adaptor Ethernet cable: RJ45, Cat5e UTP, 1 m.
CertificationCE
Weight (with package)≤ 7 kg (15.4 lb.)

Camera

Camera Case Type

Bullet

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Day &Night

IR cut filter

WDR

Digital WDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Protection Level

IP66

Material

Base: Metal, front cover: Metal, back cover: Plastic

Wi-Fi Support

Yes

Camera/Lens

Focal Length

2.8 mm

Aperture

F1.6

Focus

Fixed

FOV

horizontal FOV 98°, vertical FOV 54°, diagonal FOV 115°

Lens Mount

M12

Camera/IR

IR Range

Up to 30 m

Camera/Compression Standard

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Video Compression

Main stream: H.265/H.264, Sub-stream: H.265/H.264

Camera/Image

Max. Resolution

4MP

Main Stream

50 Hz: 20 fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-stream

50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)

Image Setting

Saturation, brightness, contrast and sharpness are adjustable via client software and web browser

Camera/Network

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Client

iVMS-4200, Hik-Connect

Camera/Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Audio I/O

1 built-in microphone

Reset Button

Yes

Video Out

Camera/General

Power Supply

12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug,reverse polarity protection,

Consumption

≤ 6 W

Working Temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working Humidity

95% or less (non-condensing)

Dimension (W × D × H)

176.3 mm × 89.1 mm × 74.5 mm (6.9" × 3.5" × 2.9")

Weight

Approx. 350 g (0.8 lb.)

NVR/Video and Audio

IP Video Input

8-ch

Incoming/Outgoing Bandwidth

50 Mbps/40 Mbps

HDMI/VGA Output

1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output

Audio Output

1-ch, RCA (linear, 1 KΩ)

NVR/Decoding

Video Resolution

4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous Playback

8-ch

Capability

4-ch@4 MP (12 fps)/4-ch@1080p (25 fps)

NVR/Network

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Network Protocol

IPv6, UPnP™, NTP, SADP, DHCP

Remote Connection

NVR/Wi-Fi

Frequency Band

2.4 GHz

Antenna Structure

2 × 2MIMO

Transmission Speed

144 Mbps

Transmission Standard

IEEE 802.11b/g/n

NVR/Auxiliary Interface

SATA

Capacity

Up to 6 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

NVR/General

Power Supply

12 VDC, 1.6 A

Consumption (without HDD and PoE off)

≤ 10 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

265 × 246 × 48 mm (10.4" × 9.7" × 1.9")

Weight (without hard disk)

≤ 1.6 kg (without HDD, 3.5 lb.)

Kit

Accessories

Power adaptor: 4 × IPC power adaptors, 1 × NVR power adaptor Ethernet cable: RJ45, Cat5e UTP, 1 m.

Certification

Weight (with package)

≤ 7 kg (15.4 lb.)
