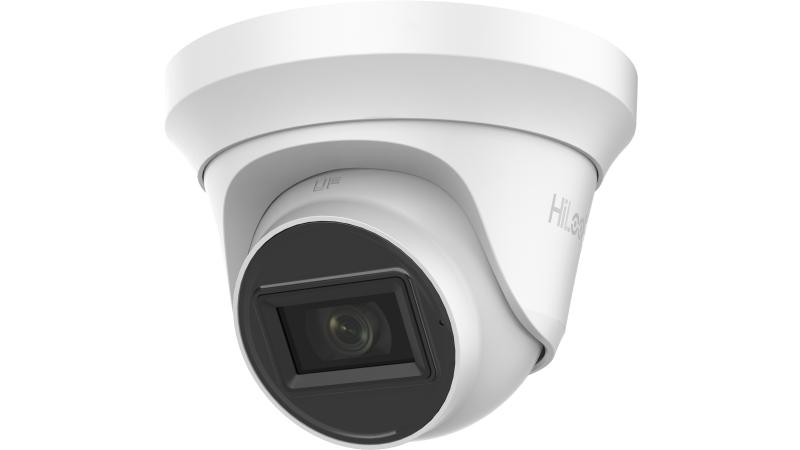

2 MP Audio Fixed Turret Camera

  • 1080p turret camera
  • Smart IR, up to 40 m IR distanceWater resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • With built-in microphone, enhancing your safety with video and audio together

Available models:

THC-T220-MS(2.8mm)(HiLook STD)
THC-T220-MS(3.6mm)(HiLook STD)
THC-T220-MS(6mm)(HiLook STD)

Specification

  • Interface
  • Video Output1 HD analog output
  • Switch ButtonTVI/AHD/CVI/CVBS
  • Menu
  • Day/Night ModeAuto/Color/BW (Black and White)
  • DWDR (Digital Wide Dynamic Range)Support
  • LanguageEnglish
  • FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
  • Backlight CompensationSupport
  • Camera
  • Image Sensor2 MP CMOS image sensor
  • Signal SystemPAL/NTSC
  • Frame RateTVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
  • Resolution1920 (H) × 1080 (V)
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Lens2.8 mm, 3.6 mm, 6 mm fixed lens
  • Horizontal Field of View2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
  • Lens MountM12
  • Day & NightAuto/Color/BW (Black and White)
  • SynchronizationInternal synchronization
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • General
  • Power Supply12 VDC ± 25%
  • Power ConsumptionMax. 3.7 W
  • MaterialMetal
  • IR RangeUp to 40 m
  • DimensionsΦ 127.92 mm × 100.15 mm (Φ 5.04" × 4.03")
  • Approx. 450 g (0.99 lb.)
  • Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Specification

Firmware
Applied to:
THC-T220-MS(2.8mm)(HiLook STD)
THC-T220-MS(3.6mm)(HiLook STD)
Applied to:
THC-T220-MS(6mm)(HiLook STD)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
