EOL

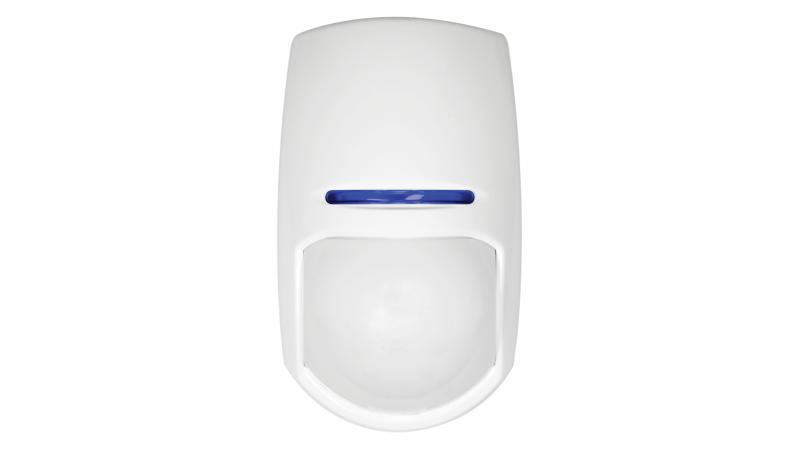

Wireless internal 15m curtain PIR detector

  • Detection range: 15 m x 15 m, 20 degrees
  • RF 868MHz
  • Offers reliable protection utilizing two-way wireless technology
  • PIR motion detection
  • Tamper alarm, intruder alarm
  • Communicates up to 800 m (in open areas)
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PD2-P15C-W(HT)(868M)
DS-PD2-P15C-W(868M)
EOL
Data Sheet

Specification

  • Detection performance
  • Detection Range15m
  • Detection Angle10°
  • Velocity range0.3m/s ~ 3.0m/s
  • Software features
  • Tamper-ProofSupport
  • Hardware features
  • IndicatorTri-color LED Indicator
  • RF transmission
  • RF Frequency868MHz
  • RF Range800m (in open area)
  • Electrical characteristics
  • Battery type1×CR123A, 3.0V
  • Battery life span2 years
  • General
  • Operation temperature-10℃ ~ +40℃
  • Dimension(WxHxD)117mm*69mm*50mm
  • Weight125g (without bracket)
  • Application scenarioIndoor
  • ColorWhite
  • Installation height2.4 ~ 4m
  • Installation methodWall mounted or Ceiling mounted
  • BracketIncluding 1 x Ceiling mounting bracket, 1 x Wall mounting bracket
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection performance
Detection Range
15m
Detection Angle
10°
Velocity range
0.3m/s ~ 3.0m/s
Software features
Tamper-Proof
Support
Hardware features
Indicator
Tri-color LED Indicator
RF transmission
RF Frequency
868MHz
RF Range
800m (in open area)
Electrical characteristics
Battery type
1×CR123A, 3.0V
Battery life span
2 years
General
Operation temperature
-10℃ ~ +40℃
Dimension(WxHxD)
117mm*69mm*50mm
Weight
125g (without bracket)
Application scenario
Indoor
Color
White
Installation height
2.4 ~ 4m
Installation method
Wall mounted or Ceiling mounted
Bracket
Including 1 x Ceiling mounting bracket, 1 x Wall mounting bracket
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Detection performance
  • Detection Range15m
  • Detection Angle10°
  • Velocity range0.3m/s ~ 3.0m/s
Software features
  • Tamper-ProofSupport
Hardware features
  • IndicatorTri-color LED Indicator
RF transmission
  • RF Frequency868MHz
  • RF Range800m (in open area)
Electrical characteristics
  • Battery type1×CR123A, 3.0V
  • Battery life span2 years
General
  • Operation temperature-10℃ ~ +40℃
  • Dimension(WxHxD)117mm*69mm*50mm
  • Weight125g (without bracket)
  • Application scenarioIndoor
  • ColorWhite
  • Installation height2.4 ~ 4m
  • Installation methodWall mounted or Ceiling mounted
  • BracketIncluding 1 x Ceiling mounting bracket, 1 x Wall mounting bracket
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
