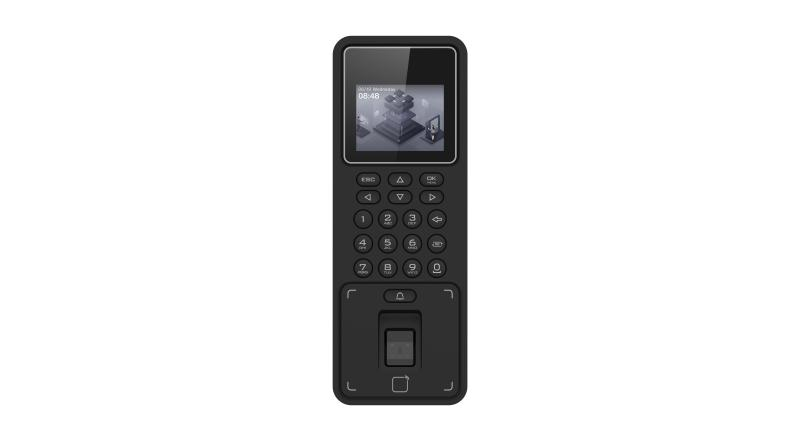

Pro Fingerprint Terminals

2.4-inch LCD screen
Multiple authentication methods, including fingerprint, card (EM card), and PIN, etc.
Max. 3000 cards, 3000 fingerprints and 100,000 events
Supports ISAPI and ISUP 5.0 protocols
Configuration via the PC web client and mobile web client
Supports wired network and Wi-Fi (AP mode)
Supports wiring with secure door control unit or card reader via RS-485
Supports access control and local time and attendance function

View Less

Data Sheet

Available models:

DS-K1T808EFWX

Specification
Resources
Accessories

Data Sheet

Display
Screen size2.4 inch
TypeLCD

Network
Wired networkSupport
Wi-FiSupport, 2.4 G, 802.11b/g/n

Interface
Network interface1 RJ-45, 10/100 M self-adaptive
Lock control1
Exit button1
Door contact input1
TAMPER1
RS-4851 RS-485 (Half duplex, HIKVISION)
Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
USB1

Authentication
Fingerprint moduleOptical fingerprint module
Fingerprint comparing mode1:1 and 1:N
Card typeEM card

General
Power supply12 VDC
Power consumption≤ 6 W
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity0 to 90% (No condensing)
LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
KeypadSupport

Display

Screen size

2.4 inch

Type

LCD

Network

Wired network

Support

Wi-Fi

Support, 2.4 G, 802.11b/g/n

Interface

Network interface

1 RJ-45, 10/100 M self-adaptive

Lock control

Exit button

Door contact input

TAMPER

RS-485

1 RS-485 (Half duplex, HIKVISION)

Wiegand

1 Wiegand(Hik 26bit,Hik 34bit)

USB

Authentication

Fingerprint module

Optical fingerprint module

Fingerprint comparing mode

1:1 and 1:N

Card type

EM card

General

Power supply

12 VDC

Power consumption

≤ 6 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

0 to 90% (No condensing)

Language

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese

Keypad
