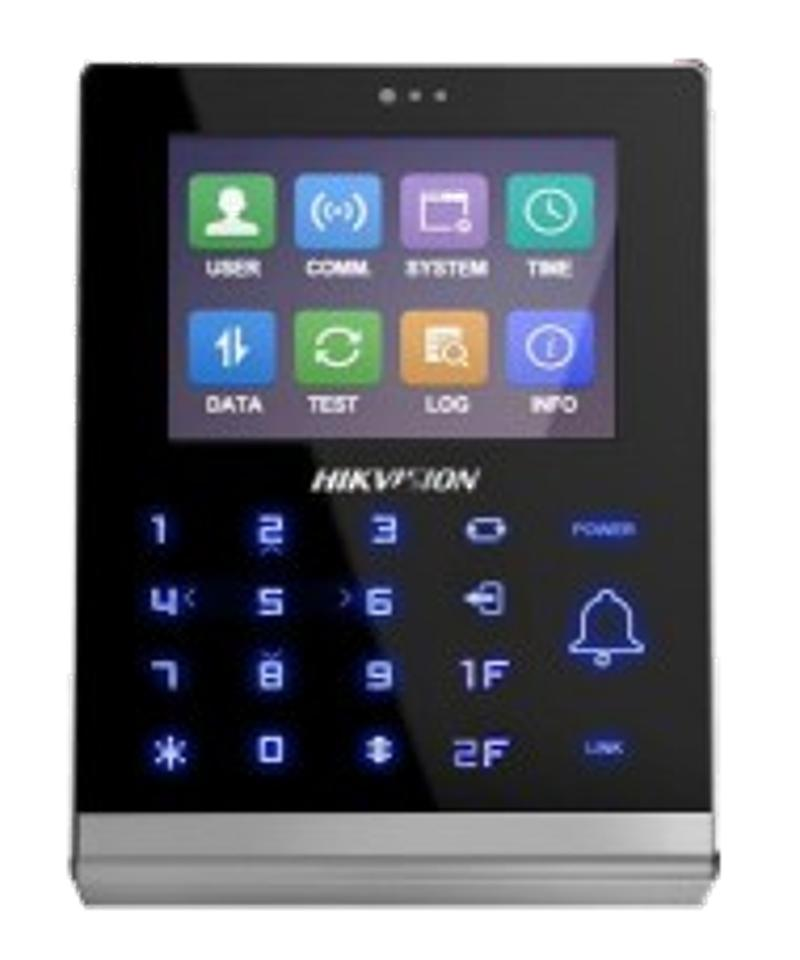

Pro Series Card Terminal

  • IP-based Fingerprint Access Control Terminal
  • 2.8-inch LCD display screen
  • 100,000 cards, 300,000 events storage
  • Communication via TCP/TP and Wi-Fi
  • EHome for public network communication
  • RS-485 and Wiegand interface
  • Multiple time attendance status
  • European power supply adaptor included (please mark for other standards when you order)

Available models:

DS-K1T105M-C

Specification

  • General
  • Working Temperature-30°C to 65°C (-22°F to 149°F)
  • Working Humidity10% to 90% (No Condensing)
  • Operation SystemLinux
  • Working CurrentMax. 500 mA
  • Power Supply12 VDC
  • LED IndicatorPower/ Communication
  • Processor32 Bit High-performance Processor
  • LCD Screen320 × 240 (pixel) LCD-TFT Display Screen
  • Communication ModeTCP/IP and Wi-Fi
  • Camera2 MP
  • Storage256M Storage
  • Card Capability100,000 Cards and 300,000 Swiping Card Records
  • Input InterfaceDoorbell × 1, Tamper Alarm × 1, Exit Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2
  • Output InterfaceLock Relay × 1, Alarm Output × 1
  • USB InterfaceUSB 2.0
  • Key Board17 Keys
  • PromptBeeper and Audio
  • 280g
  • Dimension137mm × 142mm × 35mm (5.4” × 5.6” × 1.4”)

Specification

Download Center

Firmware
Applied to:
DS-K1T105M-C
